Line regulation: non regulated
Load regulation: ±10% max.
Ripple & Noise: <100 mVpk-pk (20 MHz BW)
Short circuit protection: limited 1 sec.
Efficiency: – TMV: 77% typ.
– TMV-EN: 67% typ.
Operating temperature range: –40°C … +85°C (no derating)
I/O isolation voltage: – TMV: 3000 VDC
– TMV-EN: 3000 VACrms
I/O isolation capacitance: – TMV: 60 pF typ.
– TMV-EN: 10 pF typ.
I/O isolation resistance: >1000 Mohm
Safety standards / approvals: TMV-EN: IEC/EN 60950 (rated for 250 VAC working voltage)
Case: plastic (UL 94V-0 rating)
Order Code Input voltage Output voltage Output current
max.
TMV 0505S TMV 0505 EN 5 VDC 200 mA
TMV 0512S TMV 0512 EN 12 VDC 80 mA
TMV 0515S TMV 0515 EN 15 VDC 65 mA
TMV 0505D TMV 0505D EN 5 VDC ± 10% ±5 VDC ±100 mA
TMV 0512D TMV 0512D EN ±12 VDC ±40 mA
TMV 0515D TMV 0515D EN ±15 VDC ±30 mA
TMV 1205S TMV 1205 EN 5 VDC 200 mA
TMV 1212S TMV 1212 EN 12 VDC 80 mA
TMV 1215S TMV 1215 EN 15 VDC 65 mA
TMV 1205D TMV 1205D EN 12 VDC ± 10% ±5 VDC ±100 mA
TMV 1212D TMV 1212D EN ±12 VDC ±40 mA
TMV 1215D TMV 1215D EN ±15 VDC ±30 mA
TMV 2405S 5 VDC 200 mA
TMV 2412S 12 VDC 80 mA
TMV 2415S 24 VDC ± 10% 15 VDC 65 mA
TMV 2405D ±5 VDC ±100 mA
TMV 2412D ±12 VDC ±40 mA
TMV 2415D ±15 VDC ±30 mA
= Single-in-Line (SIL) Package
= Single and Dual Output Models
= I/O Isolation Voltage 3000 VDC (TMV-EN 3000 VAC)
= Operating Temperature Range –40°C to +85°C
= Supplementary Insulation rated for 250 VAC Working Voltage (TMV-EN)
= Safety Barrier 100% Production tested (TMV-EN)
= 100% Burn-in

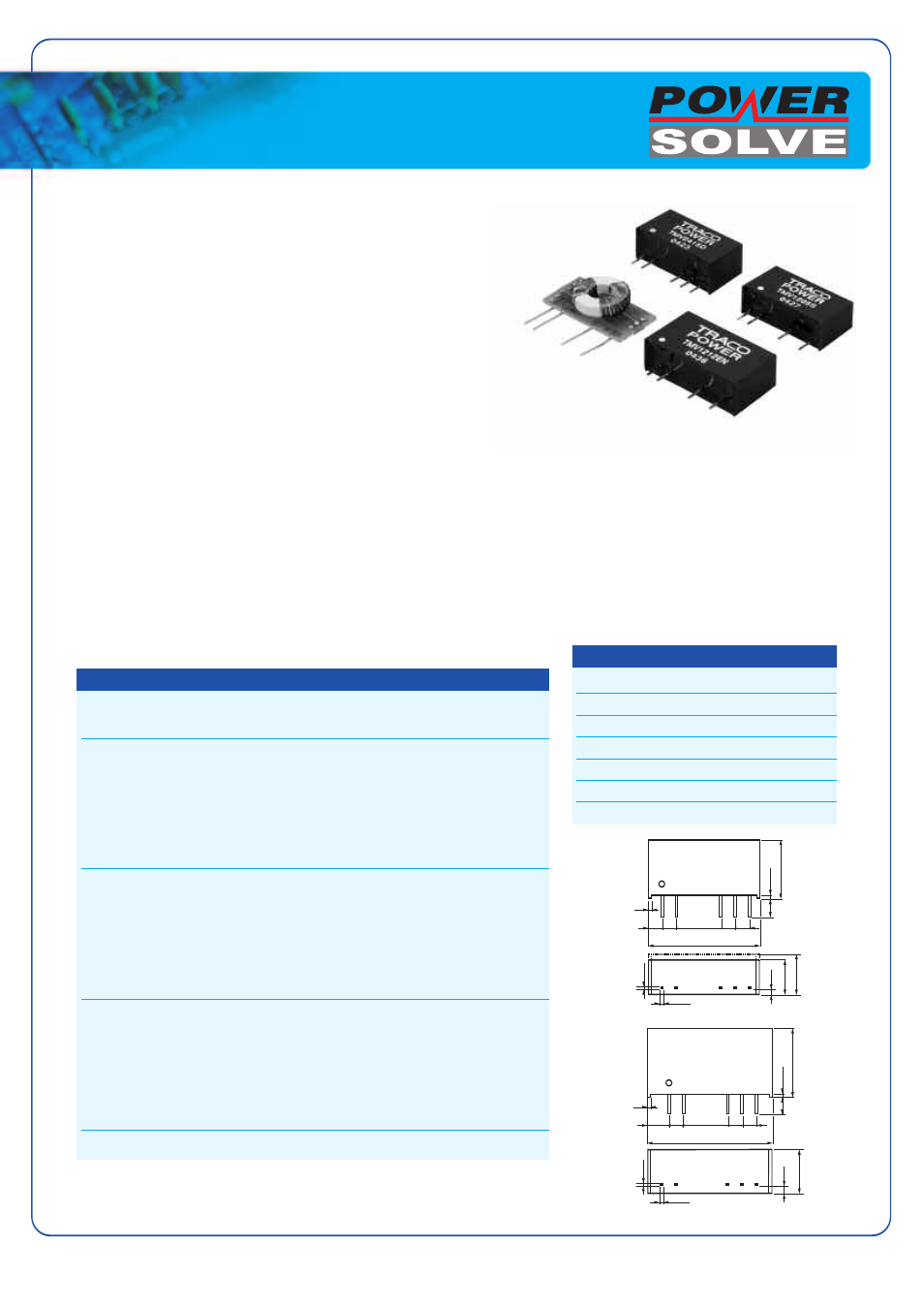

DC/DC Converters,
TMV/TMV-EN Series, 1 Watt
High Isolation
Models
Pin Single output Dual output
1 + Vin (Vcc) + Vin (Vcc)
2 – Vin (GND) – Vin (GND)
5 – Vout – Vout
6 No pin Common
7 + Vout + Vout
Pin-Out
Bottom view
12 6 57
Bottom view
12 6 57
1.2
5
6.0
(0
.24
)
24
V
Mo
de
ls
7.0
(0
.28
)
(0.
05
)
0.5 (0.02)
0.2
5
(0.
01
)
2.54
0.5
2.3 2.54
19.5 (0.77)
7.62 2.54
0.5
(0
.02
)
10
.2
(0
.4)
(0.02)
(0.1) (0.1) (0.1) (0.09) (0.3)
3.2 (0.1
3)
0.5
(0
.02
)
12
.5
(0
.49
)
3.2 (0.1
3)
2.54
0.5
3.5 2.54
22.0 (0.87)
7.62 2.54
(0.02)
(0.1) (0.1) (0.1) (0.14) (0.3)
0.5 (0.02)
0.2
5
(0.
01
)
1.7
5
7.5
(0
.30
)
(0.
07
)
() = Inches
TMV
TMV-EN
