Powersolve TMH Series User Manual

Dc/dc converters, Tmh series, 2 watt, Models

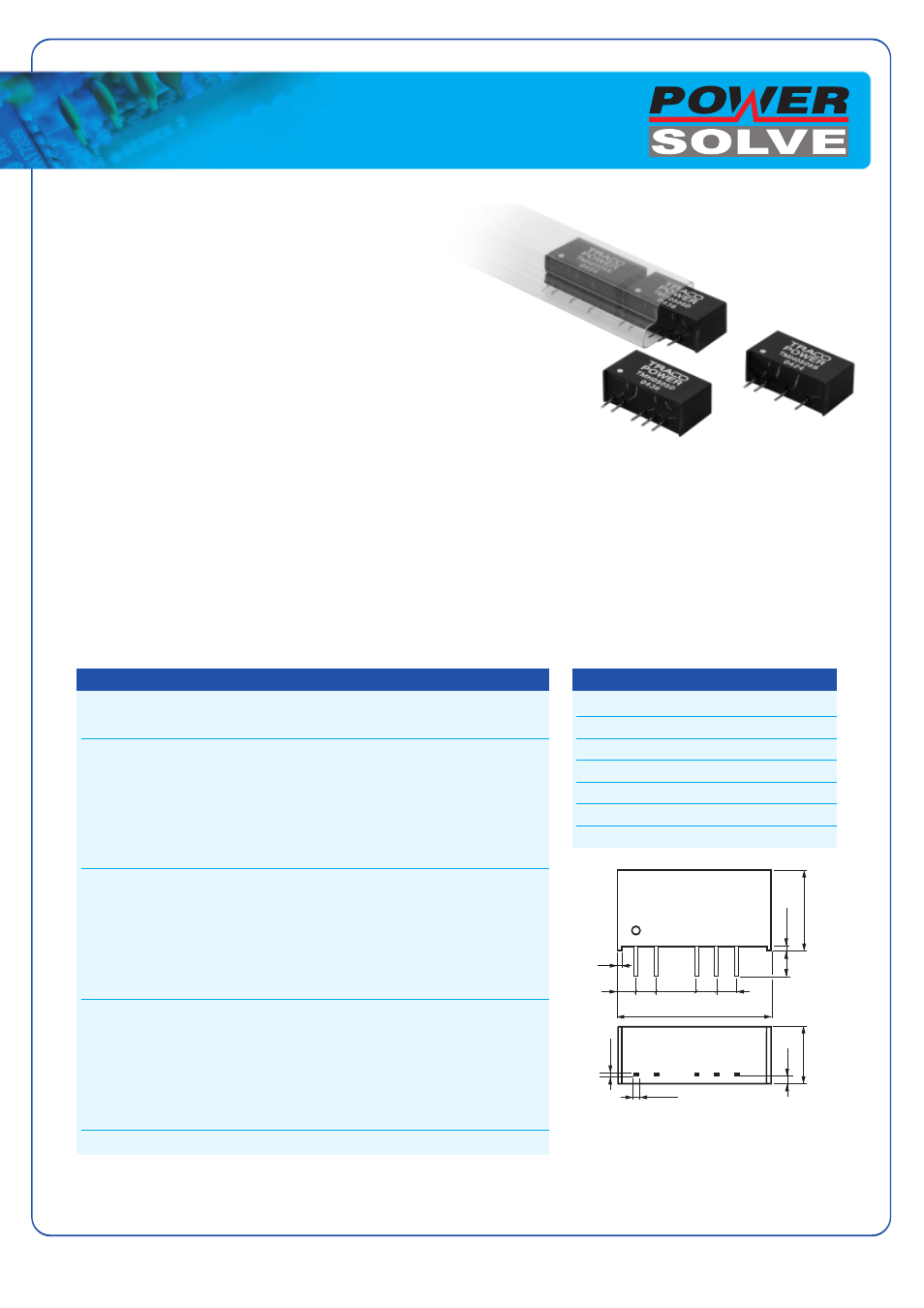

background image

www.powersolve.co.uk

Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:01635 521858 Fax: 01635 523771 Email: [email protected]

Line regulation:

non regulated

Load regulation:

±10% max.

Ripple & Noise:

– 5 Vin models: < 75 mVpk-pk (20 MHz BW)

– 12/24 Vin models: <150 mVpk-pk (20 MHz BW)

Short circuit protection:

limited 1 sec.

Efficiency:

81% typ. 5 VDC output models: 78% typ.

Operating temperature range:

–40°C … +85°C

above 70°C derating 3%/°C

I/O isolation voltage:

1000 VDC

Case:

plastic (UL 94V-0 rating)

Order Code

Input voltage

Output voltage

Output current

max.

TMH 0505S

5 VDC

400 mA

TMH 0512S

12 VDC

165 mA

TMH 0515S

5 VDC ± 10 %

15 VDC

130 mA

TMH 0505D

±5 VDC

±200 mA

TMH 0512D

±12 VDC

±80 mA

TMH 0515D

±15 VDC

±65 mA

TMH 1205S

5 VDC

400 mA

TMH 1212S

12 VDC

165 mA

TMH 1215S

12 VDC ± 10%

15 VDC

130 mA

TMH 1205D

±5 VDC

±200 mA

TMH 1212D

±12 VDC

±80 mA

TMH 1215D

±15 VDC

±65 mA

TMH 2405S

5 VDC

400 mA

TMH 2412S

12 VDC

165 mA

TMH 2415S

24 VDC ± 10%

15 VDC

130 mA

TMH 2405D

±5 VDC

±200 mA

TMH 2412D

±12 VDC

±80 mA

TMH 2415D

±15 VDC

±65 mA

=

Single-in-Line (SIL) Package

=

Single and Dual Output Models

=

I/O Isolation 1000 VDC

=

High Efficiency

=

Operating Temperature Range –40°C to +85°C

=

Industry Standard Pinout

=

100% Burn-in

DC/DC Converters

TMH Series, 2 Watt

Models

Pin

Single output

Dual output

1

+ Vin (Vcc)

+ Vin (Vcc)

2

– Vin (GND)

– Vin (GND)

4

– Vout

– Vout

5

No pin

Common

6

+ Vout

+ Vout

Pin-Out

Bottom view

12

5

46

1.25

2.54

0.5

2.3 2.54

19.5 (0.77)

5.08

2.54

0.5 (0.02)

10.2 (0.4)

(0.02)

(0.1)

(0.1) (0.1)

(0.09)

(0.2)

7.5 (0.30)

(0.05)

0.5 (0.02)

3.2

(0.13)

0.25

(0.01)

() = Inches
