Powersolve TES3 Series User Manual

Dc-dc converters, Tes 3 series, 3 watt, Models

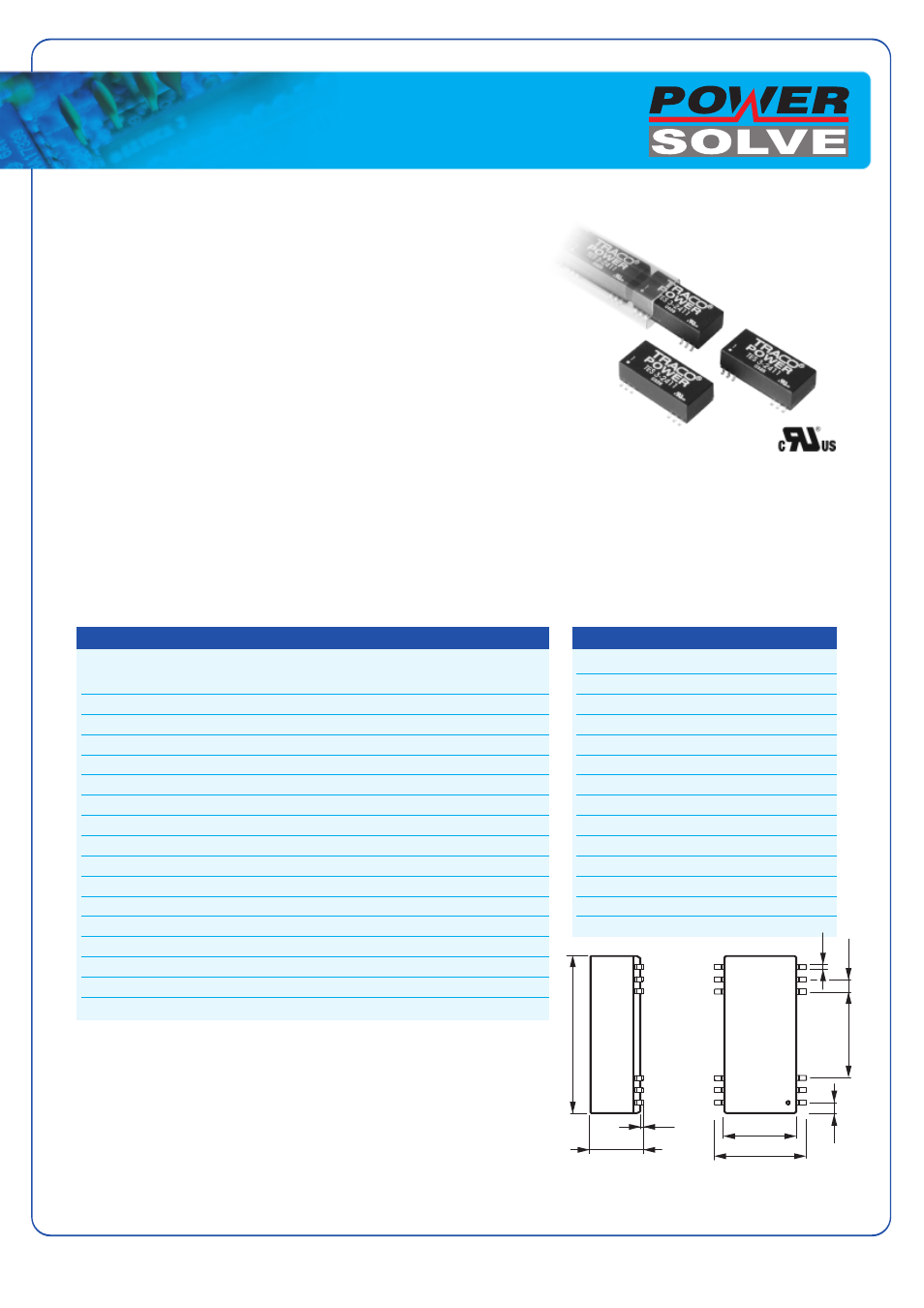

background image

www.powersolve.co.uk

Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:01635 521858 Fax: 01635 523771 Email: [email protected]

Line regulation:

±0.3% max.

Load regulation:

– Single output models: ±1.0% max.

– Dual output models: ±1.0% max.

Ripple & Noise:

<50 mVpk-pk (20 MHz BW)

Input filter:

Pi-filter

Short circuit protection:

hiccup mode continuous no automatic recovery

Efficiency:

80% typ.

Operating temperature range:

–40°C … +71°C (no derating)

I/O isolation voltage:

1500 VDC

Safety standards / approvals:

cUL/UL 60950, IEC/EN 60950-1

Case:

plastic (UL 94V-O rating)

Order Code

Input voltage

Output voltage

Output current

max.

TES 3-1210

3.3 VDC 700 mA

TES 3-1211

5 VDC

600 mA

TES 3-1212

9 – 18 VDC

12 VDC

250 mA

TES 3-1222

±12 VDC

±125 mA

TES 3-1223

±15 VDC

±100 mA

TES 3-2410

3.3 VDC

700 mA

TES 3-2411

5 VDC

600 mA

TES 3-2412

18 – 36 VDC

12 VDC

250 mA

TES 3-2422

±12 VDC

±125 mA

TES 3-2423

±15 VDC

±100 mA

TES 3-4810

3.3 VDC

700 mA

TES 3-4811

5 VDC

600 mA

TES 3-4812

36 – 75 VDC

12 VDC

250 mA

TES 3-4822

±12 VDC

±125 mA

TES 3-4823

±15 VDC

±100 mA

SMD-Package

Wide 2:1 Input Range

I/O Isolation 1500 VDC

Operating Temperature Range –40°C to +71°C

Short Circuit Protection

Reflow solder temperature up to 250°C allowed

DC-DC Converters

TES 3 Series, 3 Watt

Models

Pin

Single Output

Dual Output

1

– Vin (GND)

– Vin (GND)

2

– Vin (GND)

– Vin (GND)

3

No con.

No con.

10

No con.

Common

11

No con.

No con.

12

No con.

– Vout

13

+ Vout

+ Vout

14

No con.

No con.

15

– Vout

Common

22

No con.

No con.

23

+ Vin (Vcc)

+ Vin (Vcc)

24

+ Vin (Vcc)

+ Vin (Vcc)

Pin-Out

1

24

To

p

View

13

12

32.3

(1.31)

0.5

(0.02)

10.2

(0.4)

2.54

(0.1)

2.6

(0.1)

17.78

(0.7)

1.0

(0.04)

18.8

(0.74)

14.8

(0.58)

() = Inches

Pin

Ø

0.5 mm (0.02)
