DC-DC Power Adaptors
MODEL INPUT OUTPUT MODEL INPUT OUTPUT
VDN60-12012 12V DC 2.1A VDN60-12024 12V DC 2.1A
VDN60-15012 15V DC 4.0A VDN60-15024 15V DC 4.0A
VDN60-16012 16V DC 3.75A VDN60-16024 16V DC 3.75A
VDN60-18012 10.7 to 16V DC 18V DC 3.35A VDN60-18024 17-28V DC 18V DC 3.35A
VDN60-19012 19V DC 3.16A VDN60-19024 19V DC 3.16A
VDN60-20012 20V DC 3.0A VDN60-20024 20V DC 3.0A
VDN60-22012 22V DC 2.73A VDN60-22024 22V DC 2.73A
VDN60-24012 24V DC 2.5A VDN60-24024 24V DC 2.5A
OUTPUT CABLE: Standard output cable fitted is 1.8Metre terminated in 2.5 x 5.5 x 11mm barrel connector, wired centre positive. Other
input and output connectors available consult sales office for details.
INPUT:
All models are able to operate from a wide input range of 10.7 to 28V DC, however to meet UL & CSA requirements the
units have to be rated for either nominal 12V or 24V DC input and appropriate input fuse fitted. Wide input range units
can still carry the E-Mark

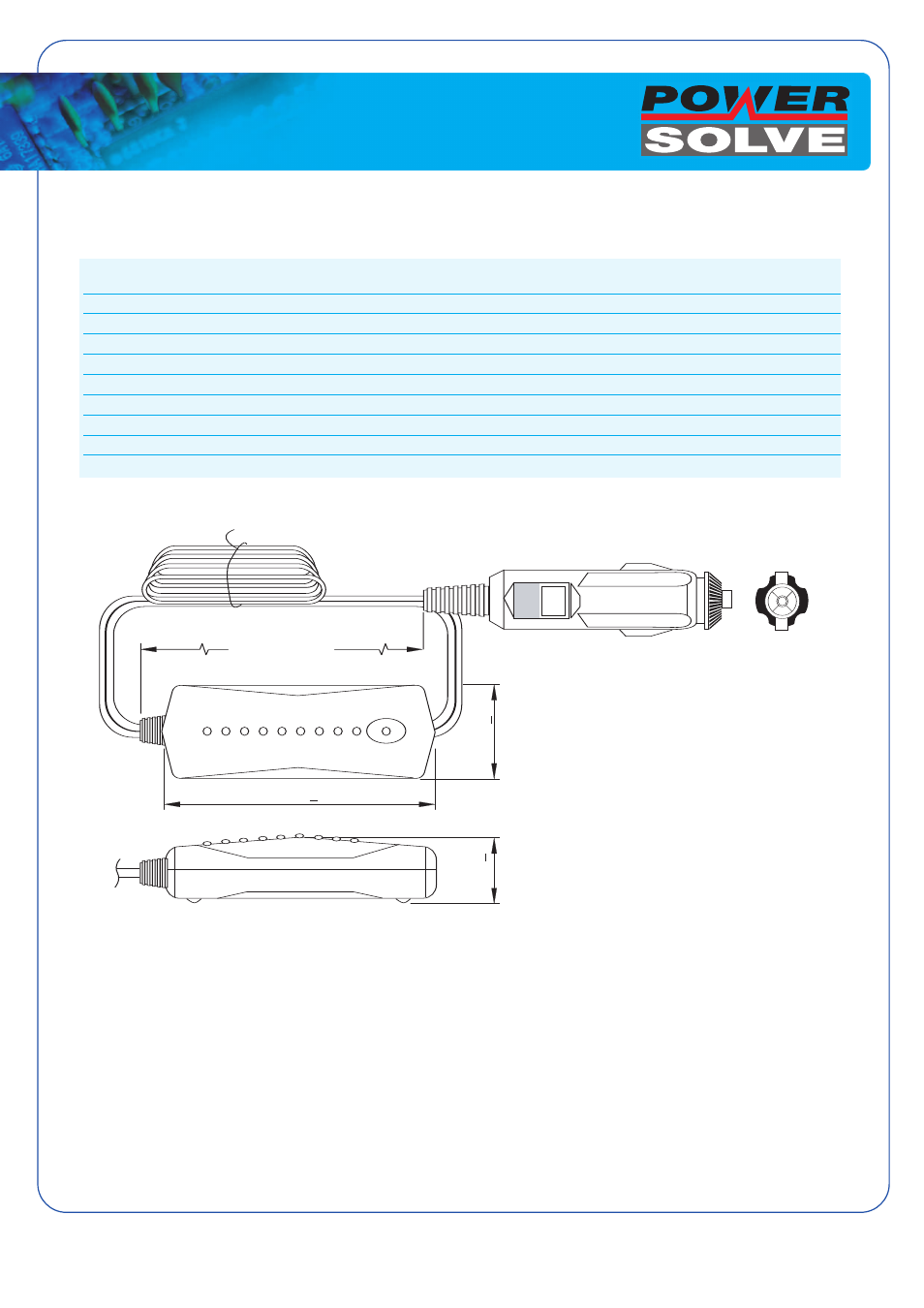

118.0+1
L=1000 REF.
44
.8
+1
33
.8
+1
I I I
I
I
I
I I I I
I
I
I
I I
