S4 = Motor frequency and IR-compensation
S5 = Motor current, fast deceleration, stopping method
S6 = Control mode, slowdown speed, speed2, speed3
1.6 The EMC requirements (Not in use for deliveries in USA/Canada)
The device complies with the requirements of EN61800-3:2004 (IEC61800-3) for second environment, category
C3, when a dedicated external EMC filter is applied.

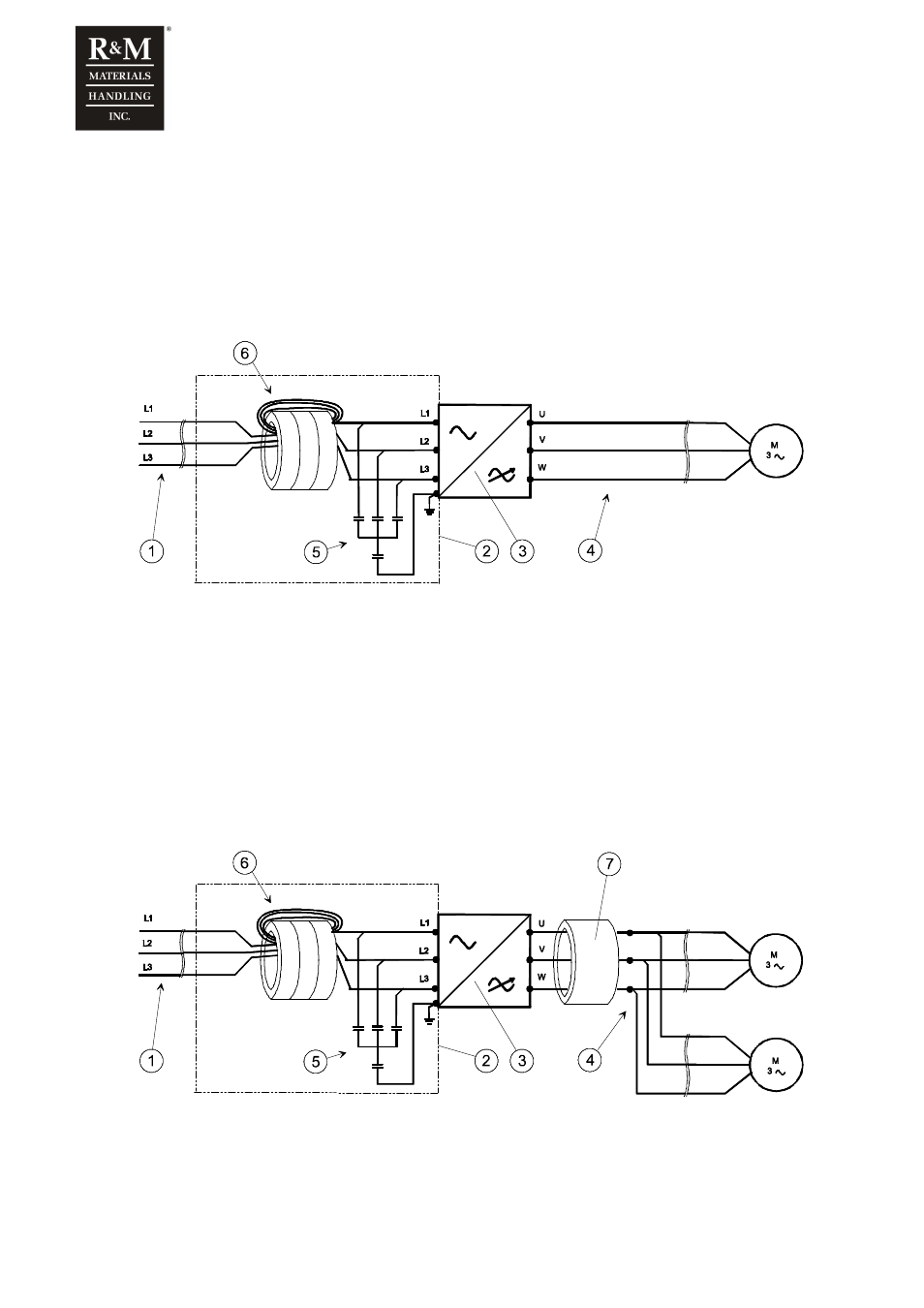

1.6.1 EMC filter connection to inverter for trolley travelling.
c_kc330ba
1. Supply
2. EMC filter KC-330-00
3. Inverter
4. Motor cable length max 3 m
5. 4 x 1
µ
F
6. Input wires two times through input ferrite rings.
KC-330-00 includes capacitors (4*1
µ
F) and input ferrite rings (3 x EF 32008).
Ferrite rings and capacitors must be placed as near the inverter as possible.
1.6.2 EMC filter connection to inverter for bridge travelling.
c_kc330ca
1. Supply
2. EMC filter KC-330-00
3. Inverter
4. Motor cable length max 1 m + 25 m
5. 4 x 1
µ
F
6. Input wires two times through input ferrite rings.
7. Output ferrite ring RH175285107
