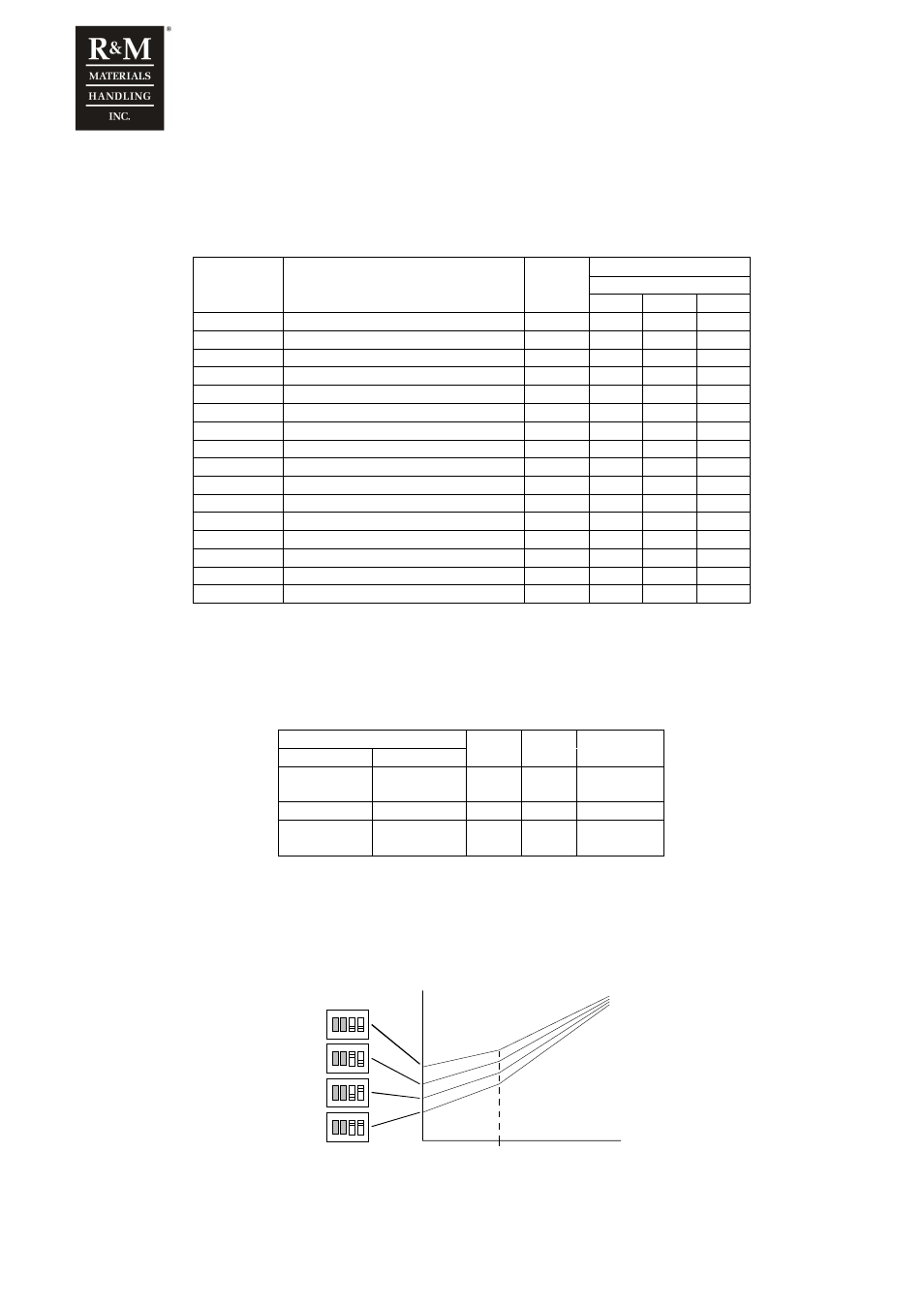

2 PROGRAMMING OF THE MOTOR PARAMETERS
The motor parameters are set by switches S4 and S5 according to the following table. Only the most common motor
types are shown in the table. Settings for other motors can be defined when motor nominal frequency, voltage, current
and the IR-rate are known.
S5 settings
Motor type Nominal voltage and frequency
S4
settings
Number of motors
1 2 4
MF06MA200 400V 100Hz 460V 120Hz 0 00xx 10xx 11xx
MF06MA100 400V 80Hz 1010 10xx 11xx -
MF06LA200 400V 100Hz 460V 120Hz 10 10xx 11xx -
MF06LA100 400V 80Hz 1001 10xx 11xx -
MF06LB200 400V 100Hz 460V 120Hz 10 01xx - -
MF06LB100 400V 80Hz 1011 01xx - -
MF07LA200 380-415V 50Hz 460-480V 60Hz 100 00xx 10xx 11xx
MF07LA100 380-415V 50Hz 460-480V 60Hz 101 00xx 10xx 11xx
MF07LB200 380-415V 50Hz 460-480V 60Hz 100 00xx 01xx -
MF07LB100 380-415V 50Hz 460-480V 60Hz 101 00xx 10xx 11xx
MF07ZC200 380-415V 50Hz 460-480V 60Hz 110 10xx 11xx -
MF07ZC100 380-415V 50Hz 460-480V 60Hz 111 10xx 11xx -
MF09LA200 380-415V 50Hz 460-480V 60Hz 110 11xx - -
MF09LA100 380-415V 50Hz 460-480V 60Hz 111 01xx 11xx -
MF09LB200 380-415V 50Hz 460-480V 60Hz 101 11xx - -
MF09LB100 380-415V 50Hz 460-480V 60Hz 111 11xx - -
3.6 Defining the motor parameters
3.6.1 Motor nominal voltage and frequency
Motor nominal voltage and frequency are selected by switches S4-1 and S4-2 according to the following table:
Motor nominal S4-1 S4-2 Speedtable
Voltage Frequency
400V
460V
100Hz
120Hz
0 0 A
400V 80Hz 1 0 B
380-415V
440-480V
50Hz
60Hz
0 1 C
3.6.2 IR-compensation
By the IR-compensation the effect of the stator resistance at low frequencies is compensated by increasing the U/f-ratio.
Typically the necessary amount of compensation (added voltage) is higher for small motors. The IR-compensation is set
by switches S4-3 and S4-4. Estimation of the correct setting of IR-compensation is made by calculating the IR-rate of the
motor.
U(V)
f (Hz) f
middle
0
ON DIP
1 2 3 4
S4 setting
ON DIP
1 2 3 4
ON DIP
1 2 3 4
ON DIP
1 2 3 4
Calculation of the IR-rate:
