mm2 AWG
Power
module
L1
3-phase input
1.5 – 4.0 16 – 12
L2
L3
U / T1
Motor output V / T2
W / T3
R+ R- External braking resistor (no in model 003)
PE Protective earth
Control
board
1 DI1 Drive command forward
1.0 – 2.5 20 – 10
2 DI2 Drive command reverse
3
4
5 DI3
DI4
DI5
Function depends on parameter settings
6 DI6 Motor temperature protection / External stop
7 COM Common DI1-DI6

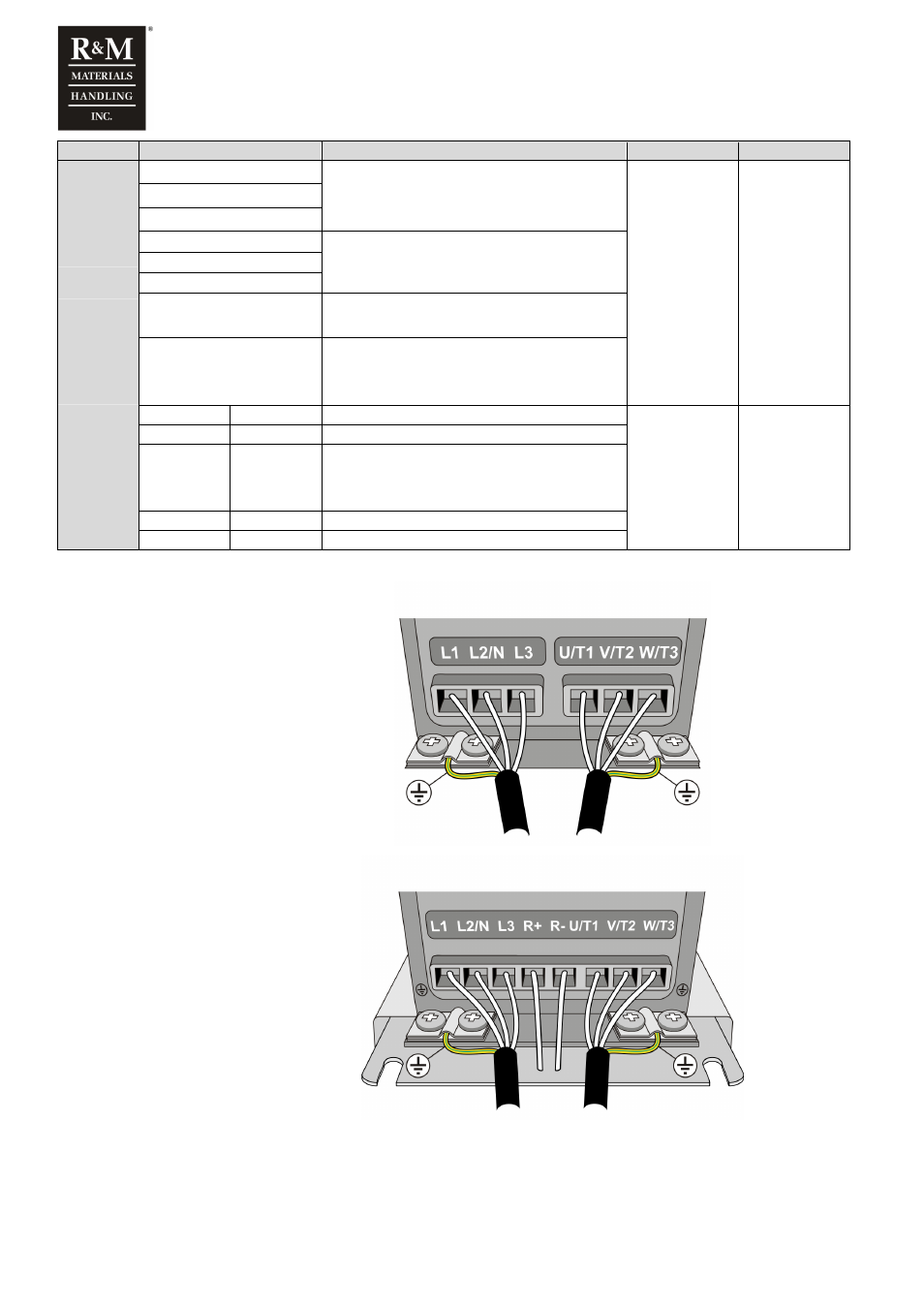

The connection terminals
of the 003 model
The connection terminals
of the 006 model
