Operation Method

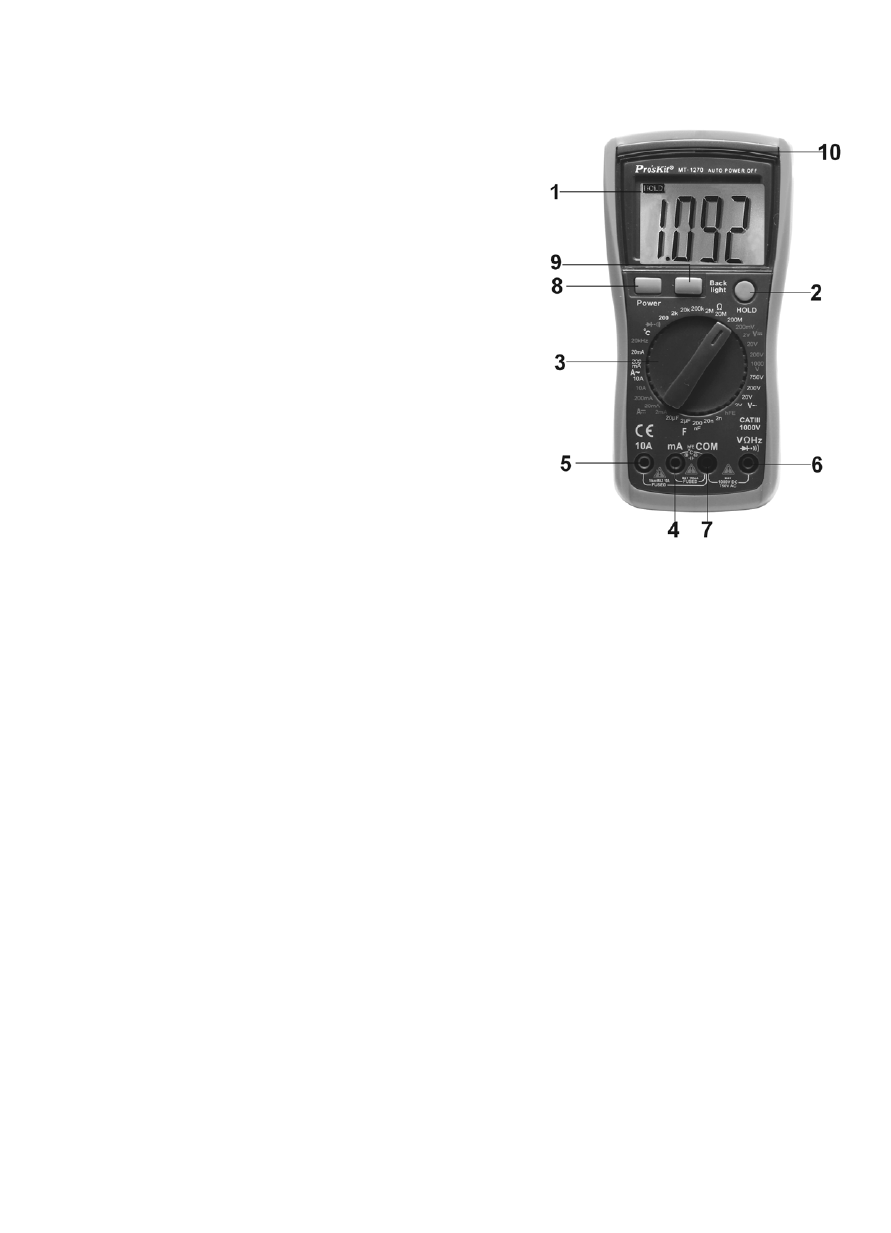

1. Front Panel Description
1. LCD: Display the measuring
value
2. HOLD Key: Press the key,
the present measuring value
is held on LCD, and appear
“Hold” symbol, press the key
again, disappear “Hold”
symbol, and exist the Date
Hold function
3. Range Knob: Switch the
measuring function and
range
4. Less than 200mA
current ,Capacitance ,Tempe
rature“
＋
” ,HFE measuring terminal
5. 10A current measuring terminal
6. Voltage, Resistance, and diode, Continuity, Frequency
measuring terminal
7. In common terminal, Capacitance, Temperature“
－
”, HFE,
Frequency measuring terminal
8. Power switch: Power on/off
9. Backlight
switch
10. LED indicator light
2. DCV Measurement
1. Insert the black lead into the “COM” terminal, and the red
lead into “V/Ω/Hz” the terminal
2. Tern the range knob to the DCV Range, then connect the
test leads cross the tested circuit, the voltage and polarity
of the tested point connected by the red test lead are
displayed on LCD.
6
1
Note:
. If the tested voltage is unknown beforehand, should turn
