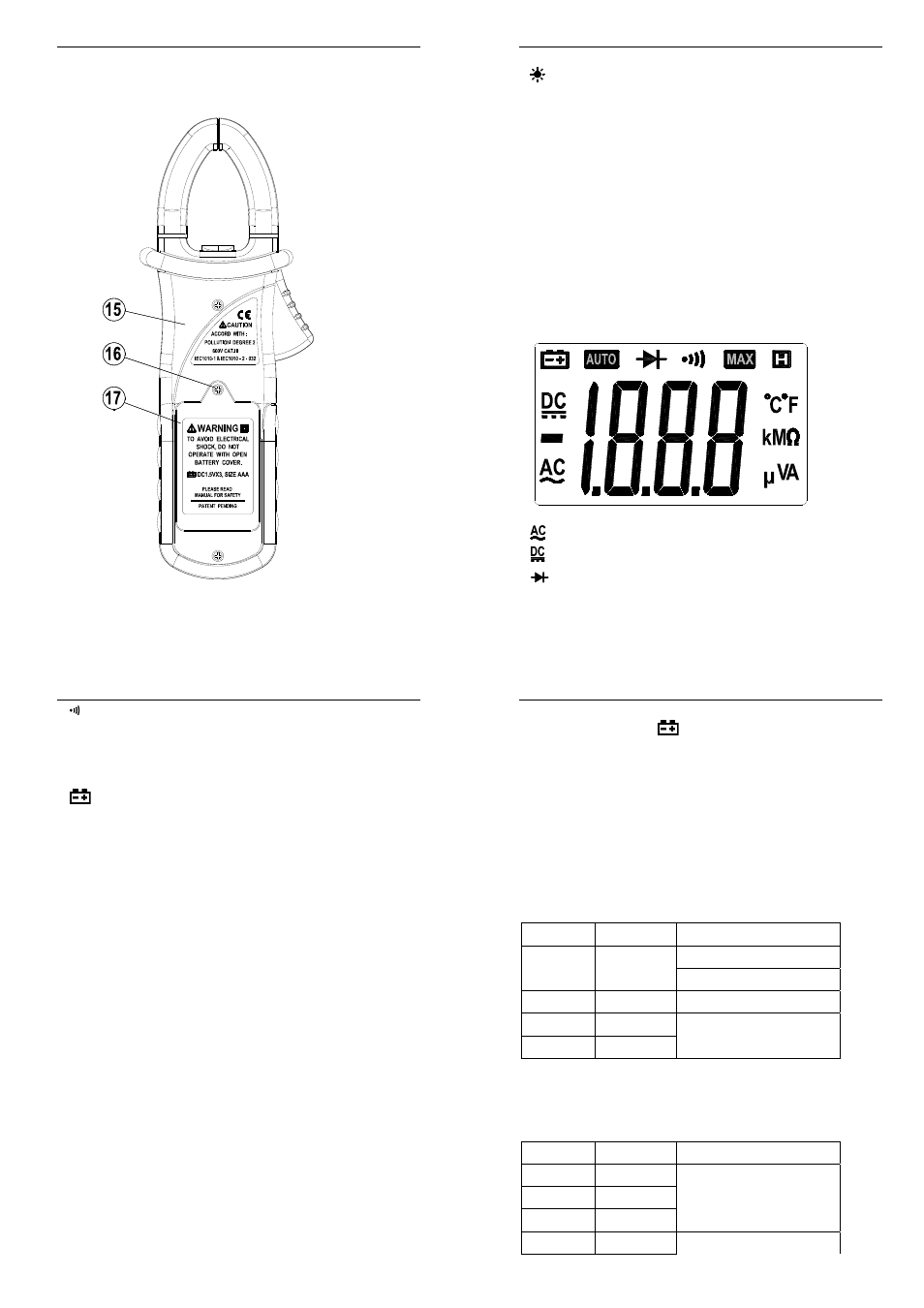

⒂ Rear Case
⒃ Fixing Screw Of The Battery Cover
⒄ Battery Cover
2A Mini Autorange Clamp Meter user manual
9
2.2 SWITCH, BUTTONS AND INPUT JACKS
Button - For control backlight
SEL Button - For switching among measuring functions
MAX Button - For switching maximum value measurement
RAN Button - For switching between auto and manual ranges
HOLD Button - For holding the reading
INPUT Jack - For measuring voltage, resistance, diode and continuity.
COM Jack - Common input connection for current, voltage, resistance, diode
and continuity measurement.
OFF Position - For turning off the power.
Rotary Selector - For selecting functions and ranges.
Clamp - For measuring current
2.3 LCD (Liquid-crystal display)
m
Alternating current
Direct current
Diode test
2A Mini Autorange Clamp Meter user manual
10
Continuity buzzer
AUTO Auto range mode
MANU Manual range mode
MAX The maximum value is being measure
Battery low
H This indicates that the display data is being held.
mV, V Milli-volts, Volts (Voltage)
A Amperes (Current)
Ω, kΩ, MΩ Ohms, Kilo-ohms, Mega-ohms (Resistance)
3. SPECIFICATIONS
Calibration is required once a year, to be carried out at a temperature between
18°C and 28 °C (64 °F to 82°F) and relative humidity below 75%.
3.1 GENERAL SPECIFICATIONS
3.1.1 Auto range and manual range options are available.
3.1.2 Over range protection is provided for all ranges.
3.1.3 Maximum voltage between terminals and earth ground: 600V DC or rms
AC
3.1.4 Operating altitude: max. 2000 meters (7000 ft.)
3.1.5 Display: LCD
3.1.6 Maximum value display: 1999 digits
3.1.7 Polarity indication: automatic; ‘-‘ for negative polarity.
3.1.8 Over range indication: ‘0L’ or ‘-0L’
3.1.9 Sampling Time: approx. 0.4 second per sample
3.1.10 Unit indication: function and unit.
3.1.11 Auto power off time: 15 min.
2A Mini Autorange Clamp Meter user manual
11
3.1.12 Operating power : 1.5V×3 AAA batteries
3.1.13 Battery low indication: ‘ ’ on LCD
3.1.14 Temperature factor: < 0.1×Accuracy /℃
3.1.15 Operating temperature: 0 ℃ to 40℃（32 °F to 104°F）
3.1.16 Storage temperature: -10 to 50 ℃ ℃（ 10 °F to 122°F）
3.1.17 Dimension: 208Ч78Ч35mm
3.1.18 Weight: approximate 340g（including batteries）
3.2 ELECTRICAL SPECIFICATIONS
Ambient temperature: 23 ±5 Relative ℃ humidity: < 75%
3.2.1 AC Current
Range Resolution Accuracy
±（3.5% of rdg +20 digits）≤0.5A 2A 0.001A
±（3.0% of rdg + 10 digits）
20A 0.01A ±（3.0% of rdg + 10 digits）
200A 0.1A ±（2.5% of rdg + 10 digits）
600A 1A ±（1.5% of rdg + 5 digits）
- Max. input current: 600A
- Frequency range: 50 to 60Hz
- Response: average, calibrated in rms of sine wave
3.2.2 AC Voltage
Range Resolution Accuracy
2V 0.001V
20V 0.01V ±(1.0% of rdg + 5digits)
200V 0.1V
600V 1V ±(1.2% of rdg + 5digits)
