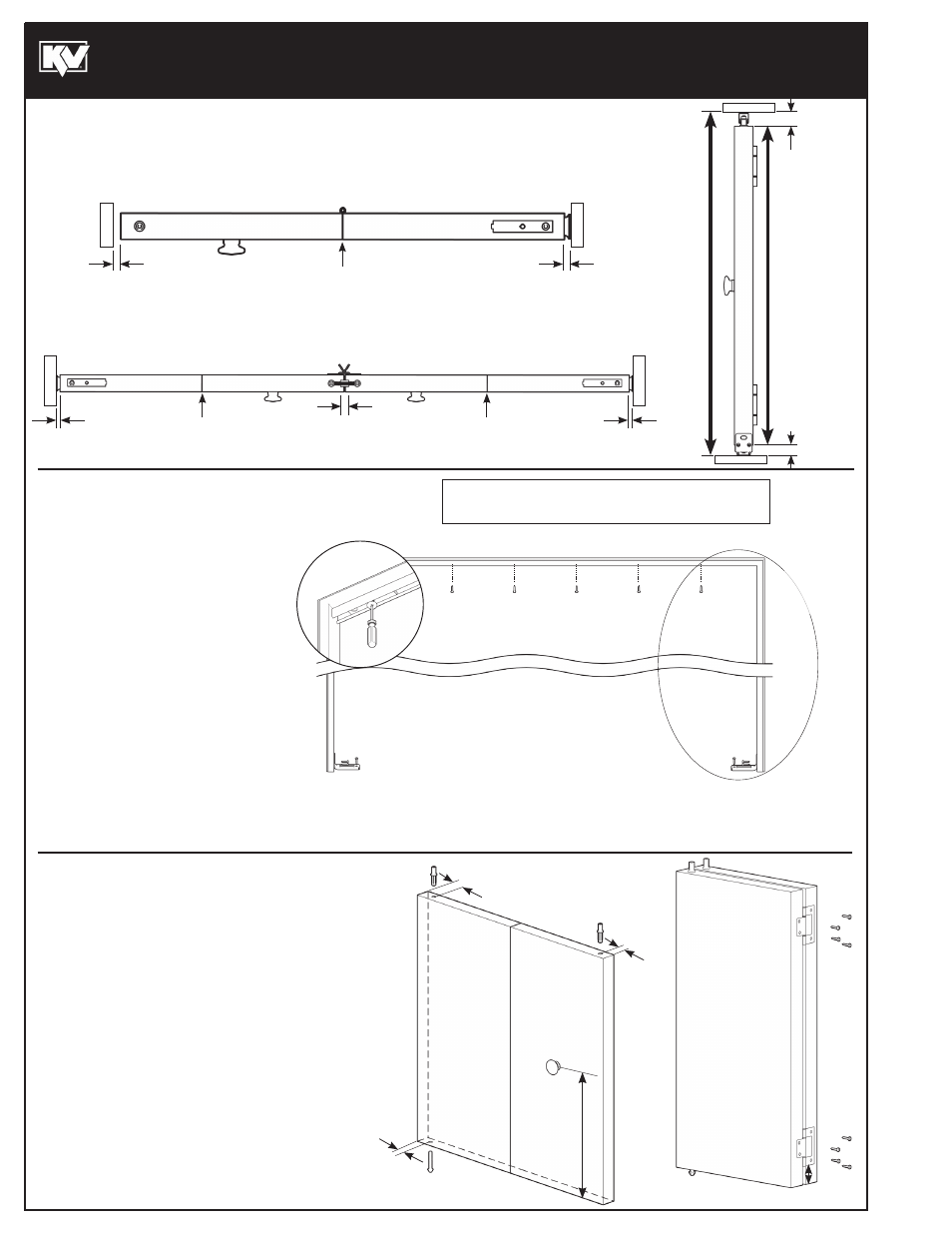

Knape&Vogt BIF-20S Series - Manual (Page 2)

SLIDING DOOR HARDWARE - BI-FOLD
Hmax = Door Height + 2-5/8" • Hmin = Door Height + 1-5/8"
1/8" Min.
(0,3 cm)
5/16" Min.
(0,8 cm)
7/8" - 1-1/8"
(2,2 cm - 2,9 cm)
3/4" - 1-1/2"
(1,9 cm - 3,8 cm)
1
2
3
PREPARE OPENING
MOuNt FRAME HARDWARE
• Using track as a template, mark screw locations.
• Important: Place track pivot in track
before securing.
• Drill 1/16" pilot holes and secure
with (#6 x 1-1/4") screws. (M)
• Install top pivot bracket in track with
screw head on track rails with bracket
end approximately 1" from track end.
For 2-door installation, position pivot
end of track snugly against jamb.
• Center jamb bracket directly
below track in jamb corner.
• Using jamb bracket as a template,
drill 1/16" pilot holes and secure
with (#6 x 1-1/4") screws. (M)
• Drill 3/8" holes 1-1/4" deep in top and
bottom of the pivot door and top only of
guide door.
• Remove lower pivot screw, tap in pivots
and guides, replace screw.
• To install hinges, place doors side by
side as folded with 1/16" gap.
• Use hinge as template, drill 1/16"
diameter holes and secure with
(#6 x 7/8") screws. (j)
• Drill 3/16" diameter hole through guide
door at center of width and secure knob
with (#8 x 1-3/4") screw. (I)
Note: Track length should be at least 1/8" less than the width of the finished opening. If necessary, track may be cut with a fine tooth saw.
When the finished opening is taller than door height, the jamb bracket may be fastened to the side jamb making certain that the screws are secured in a solid material.
A block underneath the jamb bracket is required.
2-Door: Line up track flush against jamb on guide door side.
4-Door: Center track in opening.
MOuNt DOOR HARDWARE
1"
(2,5 cm)
Pivot
Pivote
Guide
Guía
1"
(2,5 cm)
Opening Height
Hauteur Ouverture
Altura Abertura
2-Door Width = 2 x Door Width + 1/2"
4-Door Width = 4 x Door Width + 7/8"
Door Height
Hauteur Porte
Altura Puerta
1/16"
(0,2 cm)
1/16"
(0,2 cm)
1/16"
(0,2 cm)
1/8" Gap Min.
(0,3 cm) 5/16"
(0,8 cm)
5/16"
(0,8 cm)
1"
(2,5 cm)
36"
(91,4 cm)
4.5"
(11,4 cm)
Pivot
Pivote
Assembly
Instructions
#310293_D (1013)
4-Door only
4 portes seulement
Solo para 4 puertas
Pivot / Pivote Guide / Guía
