Knape&Vogt PKT-250A Series - Manual (Page 2)

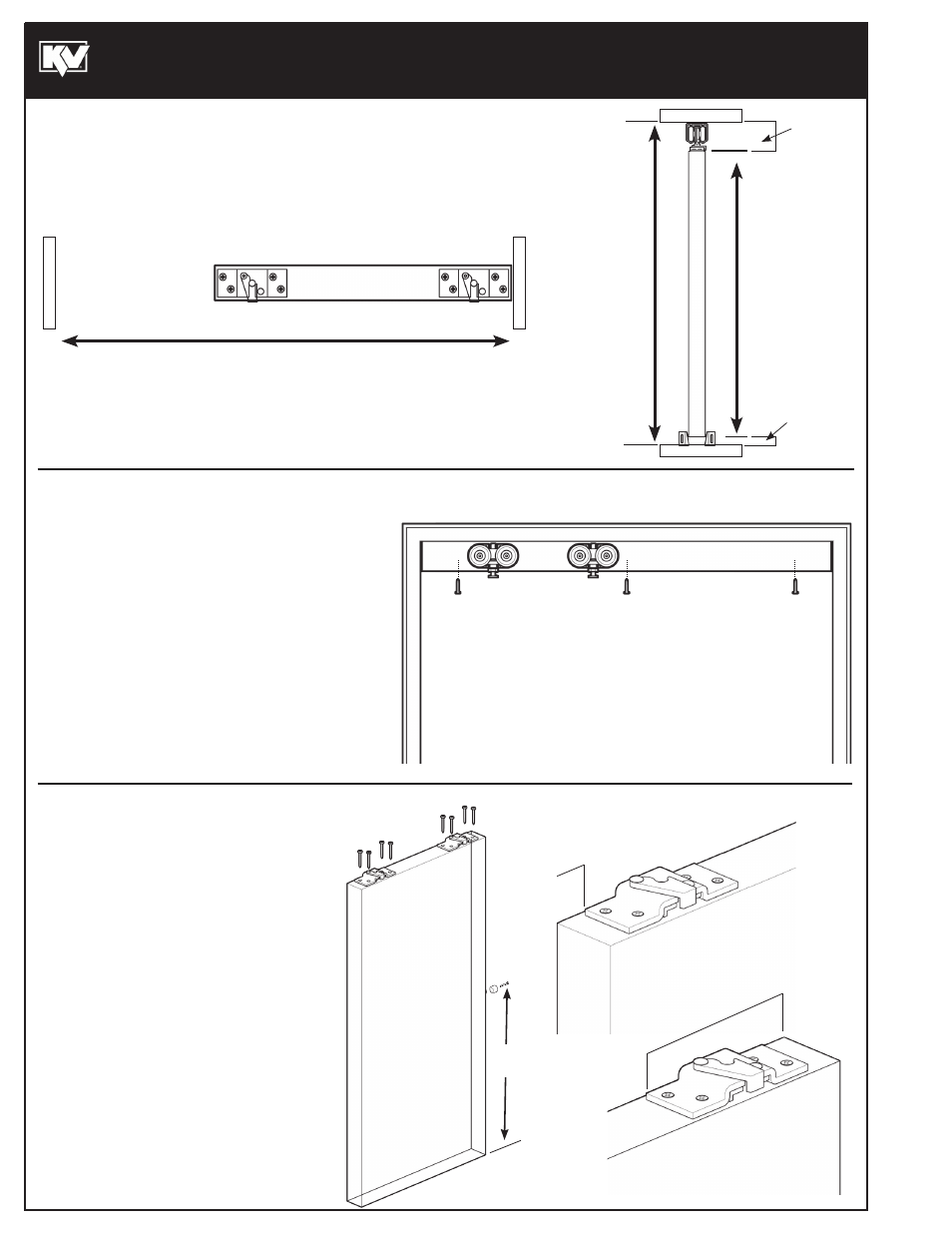

SLIDING DOOR HARDWARE - POCKET DOOR
Hmax = Door Height + 3-5/8" • Hmin = Door Height + 2-13/16"
1
2
3
PREPARE OPENING
MOUNT FRAME HARDWARE
MOUNT DOOR HARDWARE
Opening Width
Largeur de l’overture
Ancho de la abetura
Assembly
Instructions
#310306_B (1212)
3/8"
(1 cm)
2-7/16" - 3-1/4"
(7 cm - 9,5 cm)
• Place quick release top mount plates
on top of each door at the distance
shown from the outside edge.
• Using brackets as a template, drill
3/32" diameter holes and secure
with (#8 x 1-1/2") screws.
• Secure door bumper as shown.
Rough Opening Width = 2 x Door Width + 1"
Opening Height
Hauteur Ouverture
Altura Abertura Door Height
Hauteur Porte
Altura Puerta
Center
Centre
Centro
1"
(2,5 cm)
Rear
Arriére
Parte trasera
Front
Avant
Delantera
5-1/2" (14 cm)
• Center track in opening.
•
IMPORTANT: Place hangers loose into track before
securing.
• Using track as template, mark screw locations.
• Drill 3/32” pilot holes and secure with (#8 x 1”) screws.
• To take advantage of the key-holed slots, be sure
there is a 3/4” opening from the finished opening
to the track. If necessary, tracke may be cut
with a fine tooth saw.
• To maintain interchangeability of track to allow
future replacement in the field, the screws adhered
in the track to the header in the pocket side must be
backed out one half turn after seating the track.
