SLIDING DOOR HARDWARE - Pocket Door
Assembly
Instructions
#310307_B (1013)
5 6
7

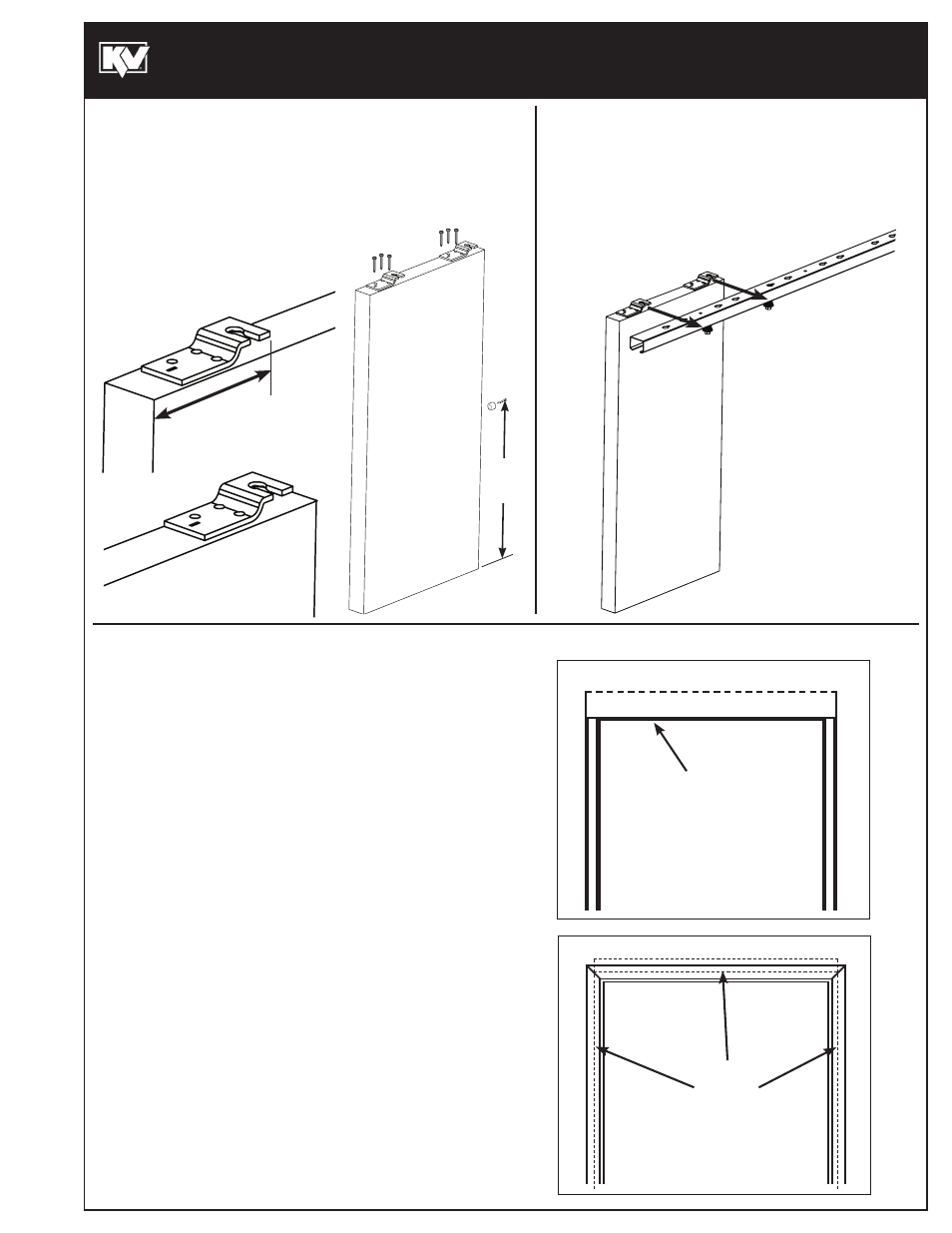

mOuNt DOOR HARDWARE HANG DOOR
FINISH jAmBS & tRIm
• Install door, mounting rear edge first, then front edge.
• Slide door onto carrier screws.
• Plumb door by turning adjusting bolt with the wrench
supplied. After door is plumbed, tighten hanger jamb nut.
• (A) Install vertical finish split jambs, butting them all the way up
against exposed wood in nailing strips to header assembly.*
Leave 1/8" minimum clearance on both sides of door. Check
clearance with door open and closed.
• (B) Install finish split header to the exposed nailer on
either side of the track, leaving 3/16" clearance on
both sides.
• To allow for future door adjustment or removal, at
least one finished split header should be attached
with screws only: The one on your right hand
overhead as you face the door in the pocket is
recommended.
• Install finish trim casing. Fasten finish header trim
to
EItHER header OR wall, NOt BOtH, so header
can be removed later without damage.
• Attach door guide to finish split jamb using
(#8 x 5/8") screws.
(K)
*Note: Standard doorway jamb can be ripped to suit.
A
B
• Place top mount plates on top of each door at the
distance shown from the outside edge.
• Using brackets as a template, drill 3/32" diameter
holes and secure with (#8 x 1") screws.
(I)
• Drill 3/32” diameter hole and secure
door bumper with (#8 x 3/4")
screw.
(L)
Center
Centre
Centro
4-1/2"
(11,4 cm)
Rear
Arriére
Parte trasera
Rear
Arriére
Parte trasera
Front
Avant
Delantera
Finish split header
(Fasten with screws)
Linteau Fendu de Finition
(Fixer avec vis)
Cabecera hendida de
acabado (fijar con tornillos)
Finish trim
Habillage
de finition
Embellecedor
de acabado
