SLIDING DOOR HARDWARE - Pocket Door
1
2

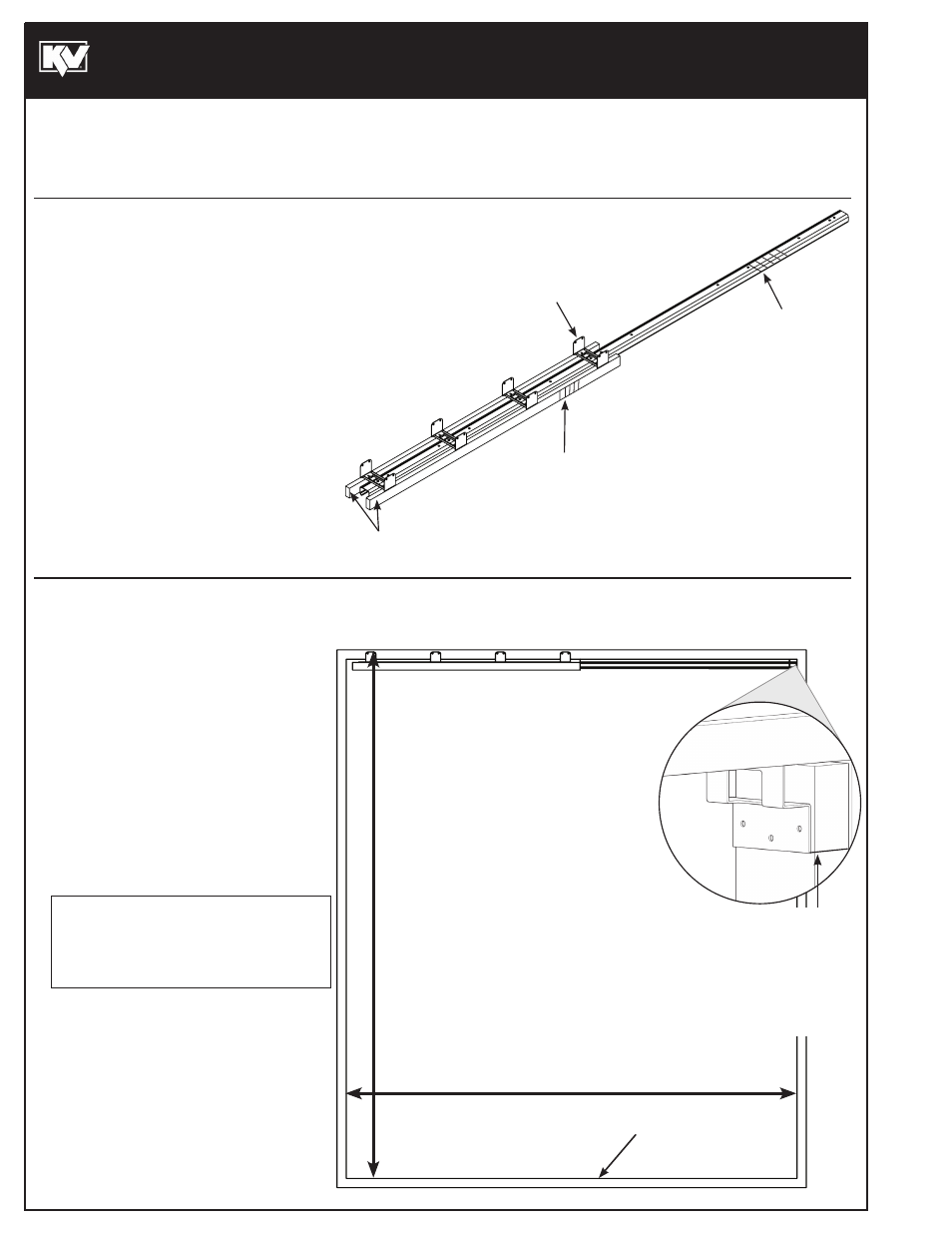

SIZE tRACK & HEADER
PREPARE ROuGH OPENING
• Be sure rough opening is the proper size.
Rough opening height equals door height
plus 3-1/4".
• Mount end bracket at 79-3/4" above
finished floor or sole strip for 6'8" door.
• If floor covering (carpet, etc.) is more
than 1/4” in thickness:
1. Cut off bottom of door
OR
2. Use sole strip in pocket opening,
equal to thickness of floor covering and
as wide as the width of the frame.
• The header assembly comes configured for 3' doors.
• For alternate door widths cut track and nailing strips
to appropriate marks indicated on header assembly.
Assembly
Instructions
#310307_B (1013)
Note: Rough opening height is measured to finished floor or
top of sole strip (if used).
When cutting for smaller doors, relocate mounting bracket
A no closer than 1” from the end of the nailing strip. For
2' doors, remove and discard mounting bracket A. Leave
brackets B, C and D as is.
Opening Width
Largeur d’Ouverture
Ancho de la abertura
Opening Height
Hauteur d’Ouverture
Altura de la abertura
Finished Floor OR Sole Strip
Sol fini OU Semelle
Piso acabado O listón del piso
Note: In the following illustrations, the doorway opening is to the left.
Nota : Dans les illustrations suivantes, l’ouverture d’entrée de porte est à gauche.
Nota: En las figuras siguientes, la apertura de la entrada es hacia la izquierda.
Cut nailing strips at marks for door sizes.
Coupez les fonds de clouage aux marques
pour les dimensions de porte.
Corte los listones para clavar por las
marcas según el tamaño de la puerta.
Nailing strips
Fonds de clouage
Listones para clavar
Mounting brackets
Supports de fixation
Soportes de montaje
Cut track at mark for
door size.
Coupez le rail à la
marque pour la taille
de porte.
Corte el carril por
la marca según el
tamaño de la puerta.
A
B
C
D
Rough Opening Height = Door Height + 3-1/4"
(83-1/4" above finished floor for 6'8" door.)
Rough Opening Width = 2 x Door Width + 1"
79-3/4" for 6'8" door
mount end bracket
202,6 cm pour un support
d’extrémité de porte de 203,2 cm
202,6 cm para el soporte del
extremo de montaje de la puerta
de 203,2 cm
