ISSUED: 11-24-99 SHEET #: 200-9192-2 07-23-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
1 of 6
L

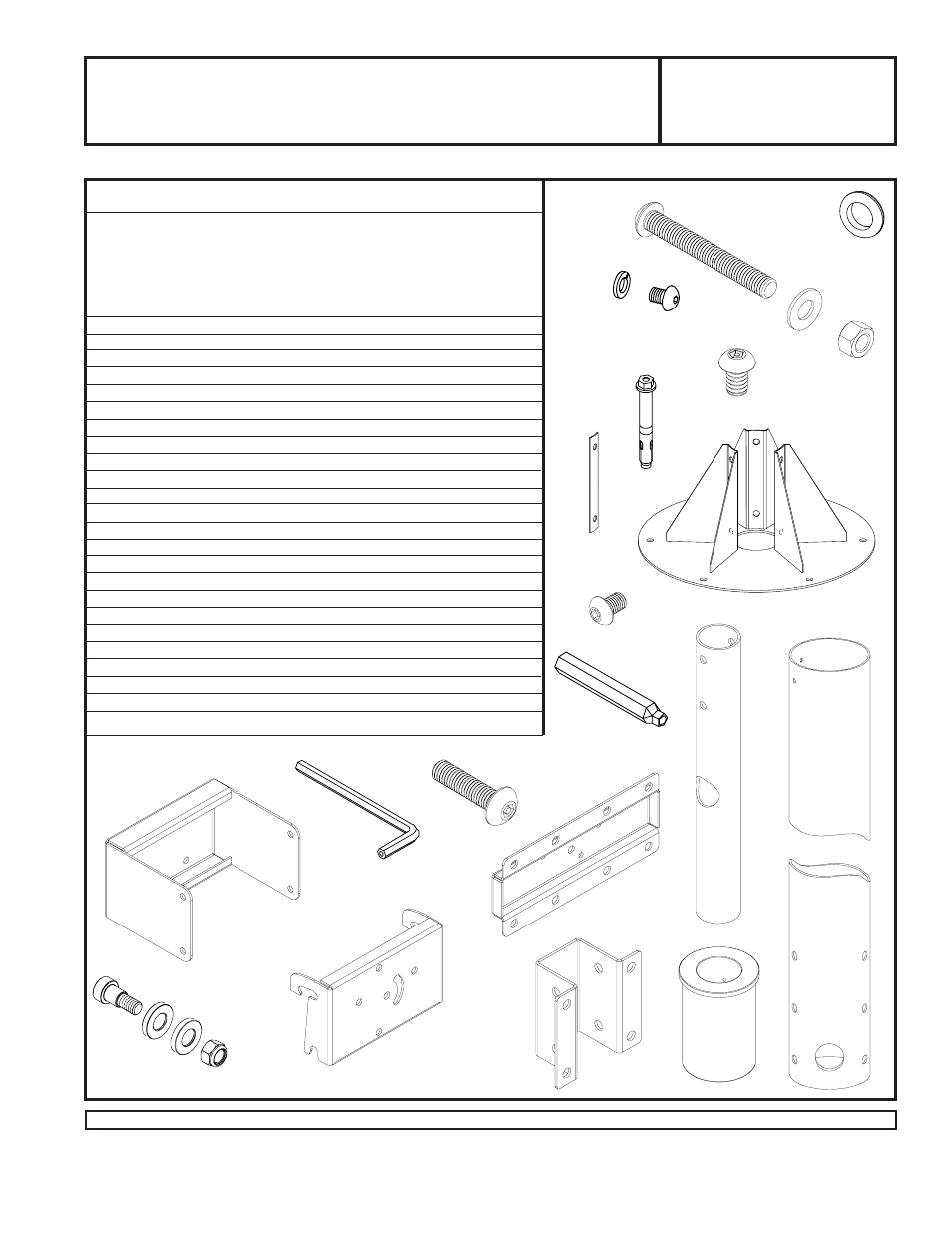

PARTS LIST
PART # QTY. DESCRIPTION
A 200-1106 1 support column (model COL 510P only)
200-1107 (model COL 610P only)
200-1108 (model COL 710P only)
200-1109 (model COL 810P only)
B 120-0041 1 base plate
C 1390-472 3 fastener plate
D 5S1-M10-A20 6 M10-1.5 x 20 mm socket head screw
E 540-9424 6 lock washer
F 540-9407 14 flat washer
G 530-9401 2 rubber grommet
H 5M9-381-H03 6 concrete expansion anchor
I 560-9646 1 4 mm security allen wrench
J 200-1096 1 tilt bracket
K 200-1095 1 tube support
L 200-1094 1 adapter mount
M 200-1093 1 swivel bracket
N 200-1517 1 neck tube
O 590-1111 1 column bushing
P 520-9263 16 M10 x 1.5 x 15 mm penta pin screw
Q 530-9310 2 3/8 x 16 nylock nut
R 520-1015 2 3/8 x 16 x 3" socket screw bolt
T 520-1065 2 M5 x .8 x 20 mm socket pin screw
U 520-9260 1 M10 penta pin tool
V 520-9525 3 M8 x 1.25 x 12 mm socket head screw
W 530-9306 1 5/16-18 nylock nut
X 500-1082 1 5/16-18 x 3/8 shoulder bolt screw
Y 540-9454 2 3/8 x 3/4 x 1/8 flat washer
Installation and Assembly - Support Column's
for Flat Panel Pedestal Mounts
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
B
Parts List
A
Before you start make sure all parts listed are included with your product.
Some parts may appear slightly different than illustrated.
Models: COL 510P, COL 610P,
COL 710P, COL 810P
J
X
Y W
M
K
O
N
T
R
Q
E
H
G
C
D
F
P
U
I
V
