7 of 9 ISSUED: 05-03-12 SHEET #: 125-9296-1

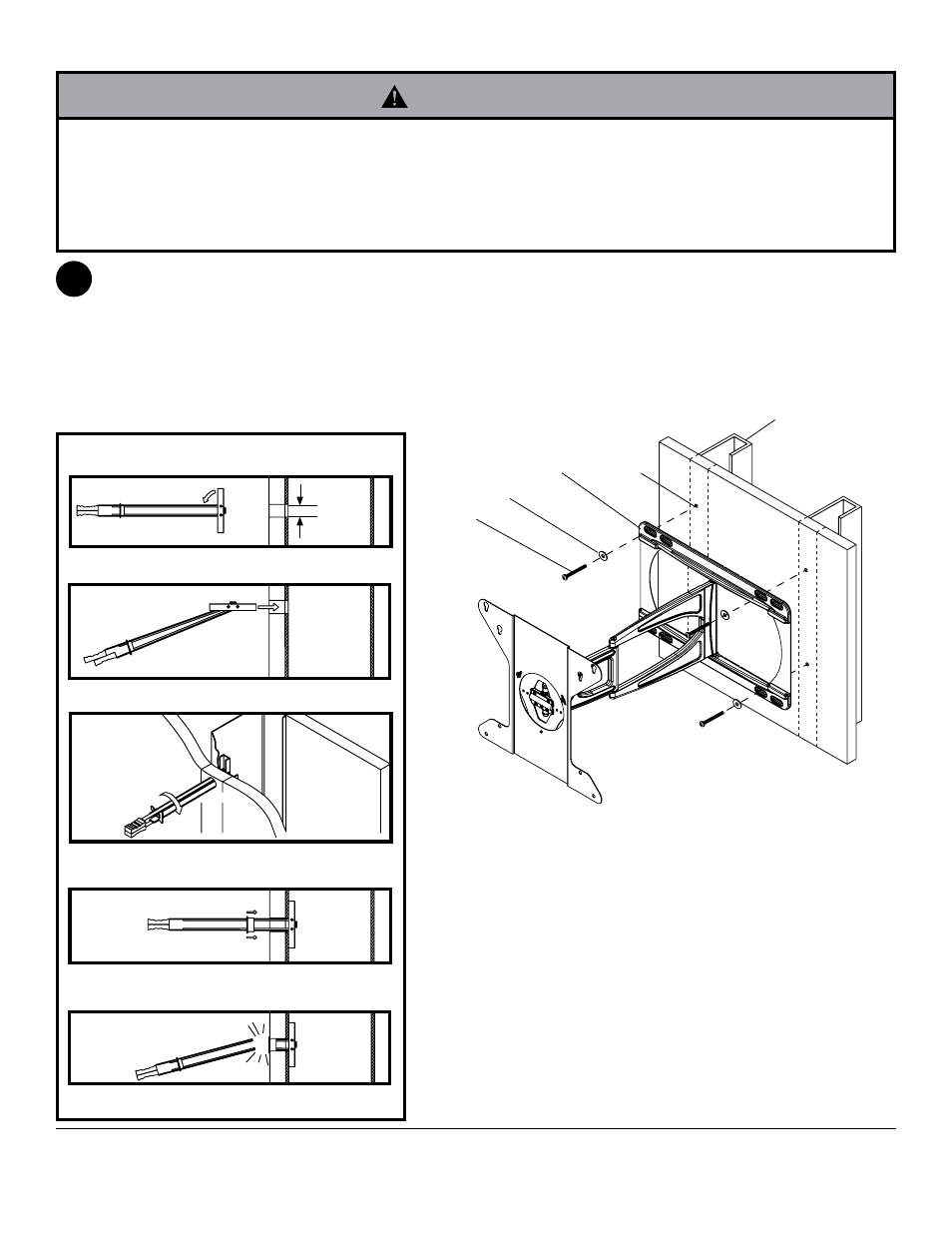

Using a stud finder, locate and mark the edges of the metal stud used in mounting this product. Use of an edge to
edge stud finder is highly recommended. Use a level to draw a level, vertical line down the center of the stud.
Use Wall Arm Assembly Mounting Detail on page four to determine wall arm ( A) Placment.
Level wall plate, and mark the center of the four mounting holes. Make sure that the mounting holes are on the
stud centerlines. Drill four 1/2" holes through drywall and metal studs. NoTE: It may be necessary to drill 5/32" pilot
holes prior to drilling 1/2" holes. Install togglers ( M) as shown in figure 1.1. Loosely fasten wall plate to wall using
four 1/4-20 x 2.5" screws ( N) and four 1/4" washers (o) as shown in figure 1.2. Level, hold, and then
tighten all screws.
1
• Drywall must be 1/2" or thicker, and metal stud must be 24 gauge or thicker.
• Make sure that the wall will safely support the combined load of the equipment and all attached hardware and
components.
• Make sure that togglers are anchored into the center of the studs. The use of an "edge to edge" stud finder is highly
recommended.
WARNING
Installation to Metal Studs
A
M
N
o
Rotate toggler ( M) clockwise to wedge it
against inside walls of metal stud.
Push into hole.
Pivot end of toggler ( M).
Slide plastic cap forward while pulling back
firmly on ring.
Break off excess.
M
1
2
3
4
5
drill
1/2"
hole
M
M
M
M
FIGURE 1.2
FIGURE 1.1
MeTAL STUD
