7 of 7 ISSUED: 02-14-06 SHEET #: 202-9099-2 06-16-06
To install second screen, repeat steps four and five for back side of carriage (B).
To install additional screens, ACC 604 is required.
F

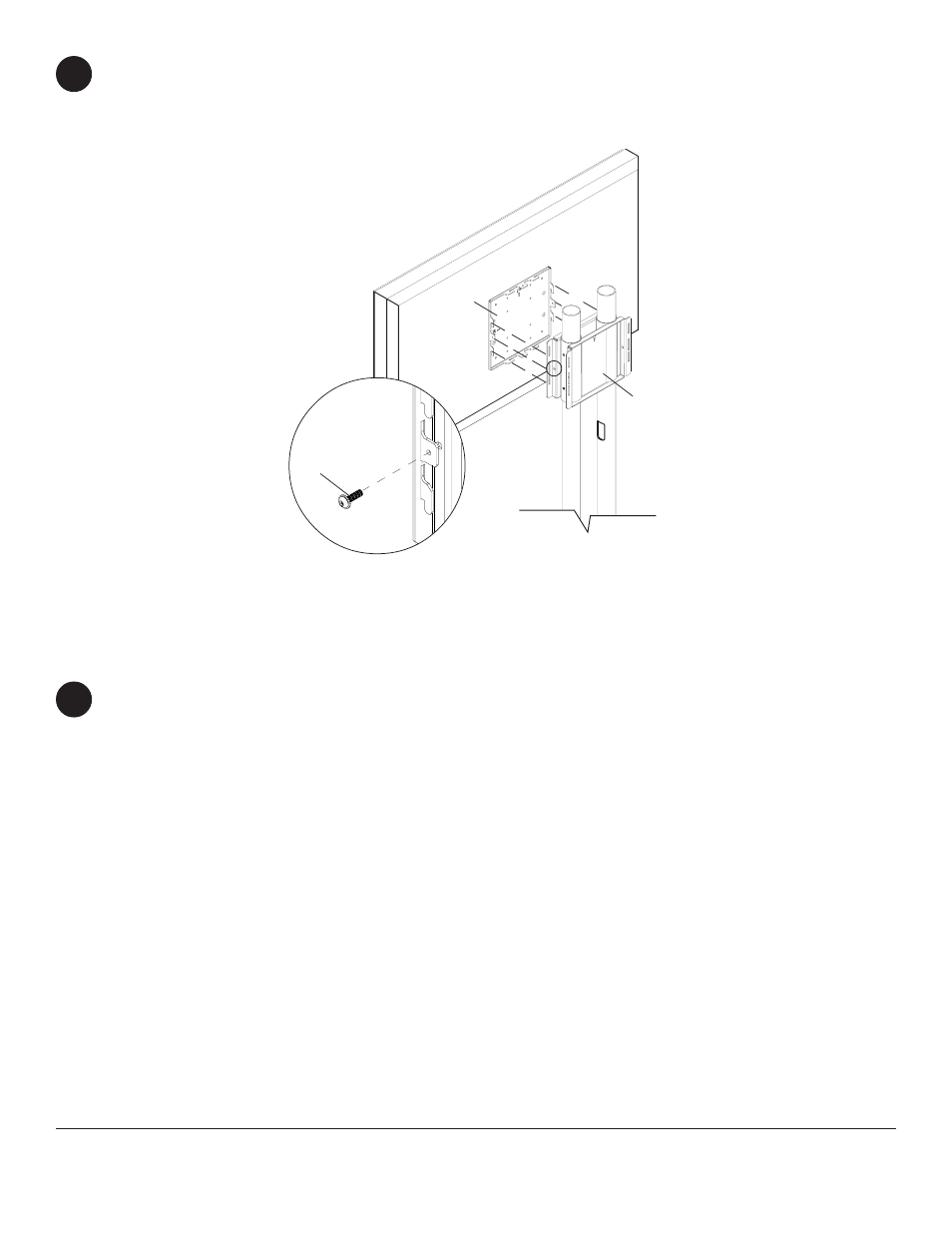

Hook adapter plate (D) onto carriage (B) and secure using two M6 x 20 mm serrated washer head socket pin screws
(F) as shown in figure 5 and detail 3. Tighten screws using 4 mm allen wrench (O). 5
DETAIL 3
fig 5
D
B
6
