8 of 10 ISSUED: 09-22-11 SHEET #: 125-9248-3 04-01-13

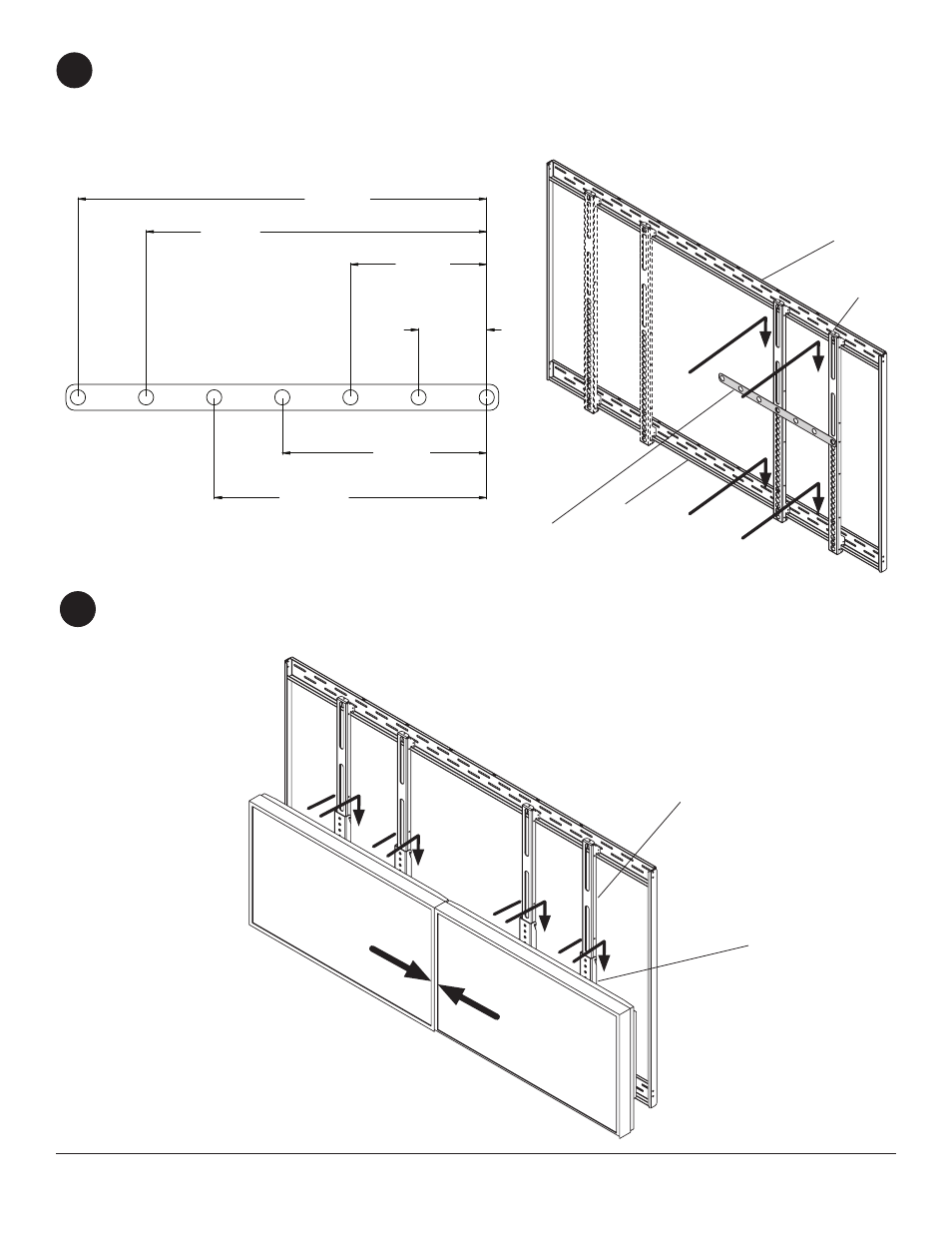

Attach two hook on brackets ( D) onto wall plate (A) as shown. Determine screen VESA mounting pattern and use
measure plate ( T) to space hook on bracket as show below.
Repeat step with remaining two hook on brackets ( D).
7
D
A
A
T
MEASURE PLATE DETAIL
23.62"
(600mm)
19.69"
(500mm)
3.94"
(100mm)
7.87"
(200mm)
11.81"
(300mm)
15.75"
(400mm)
ALIGN
HOLES
D
F
Hook bottom adapter brackets ( F) onto exposed threads on hook on bracket (D) as shown below.
Repeat step with second display.
Slide displays together until they are flush with each other.
8
