6 of 10 ISSUED: 08-20-02 SHEET #: 200-9405-12 11-18-11

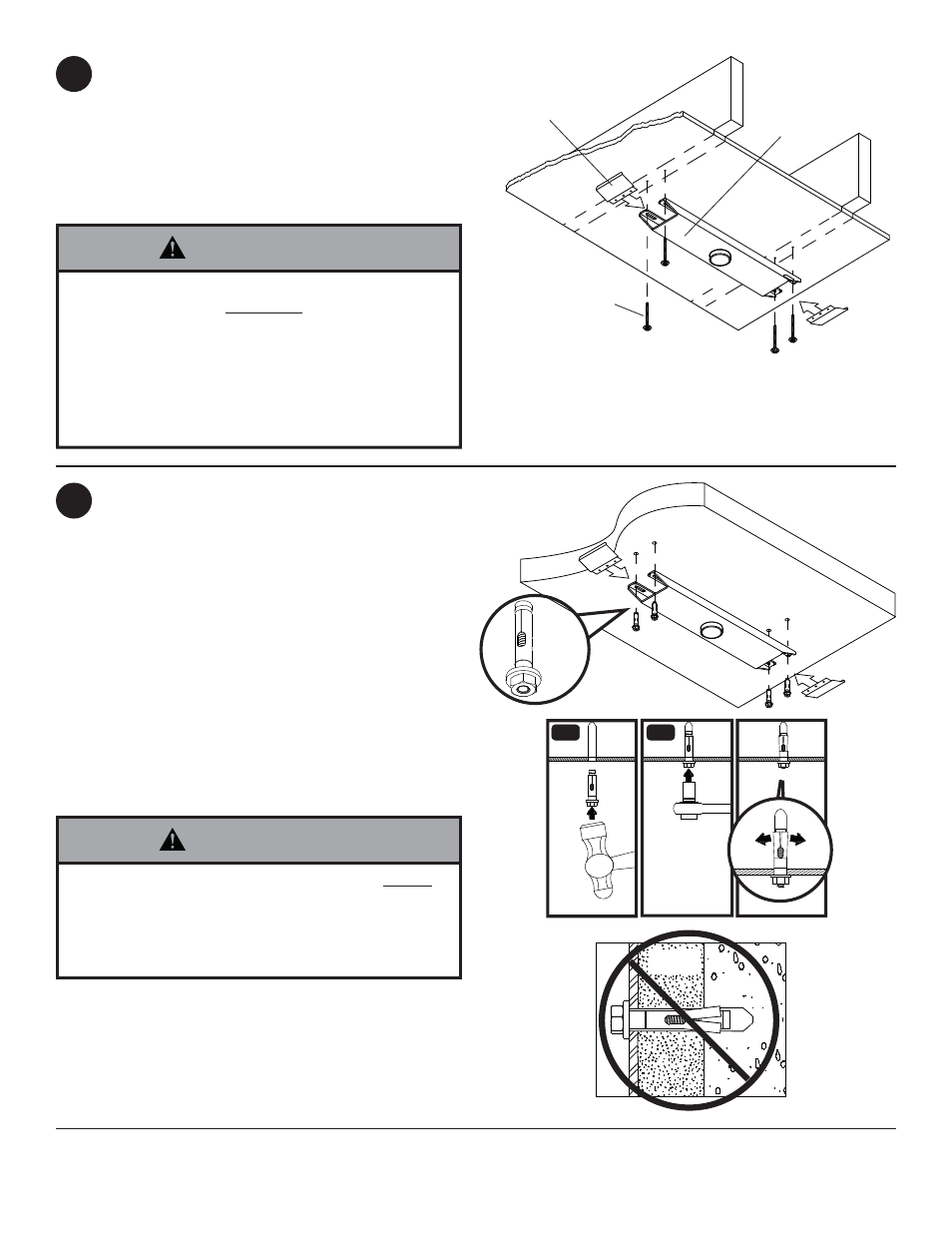

For Wood Joist Finished Ceiling, Exposed Wood
Joists, or Wood Beam Ceiling. Drill four 5/32"
(4 mm) dia. holes to a minimum depth of 2.5"(64
mm) INTO JOIST CENTERS. Attach ceiling plate
(K) with four wood screws (M) using a 3/8"(10 mm)
socket wrench. Tighten wood screws (M) so ceiling
plate is fi rmly attached. Snap end caps (L) into
place.
For Concrete Ceilings drill four 5/16"(8 mm) dia.
holes to a minimum depth of 1 3/4" (45 mm). Attach
ceiling plate (K) using concrete expansion anchors
as shown in 2-1 and 2-2. Then snap end caps (L)
into place.
Align hole in ceiling plate with hole in ceiling.
Gently hammer in concrete anchor.
Use a 10 mm wrench to tighten concrete anchor
to 80 in • lb (9 N.M.) maximum torque to expand
anchors.
FOR PRODUCT SAFETY USE ONLY RAWL ™
#5005 OR HILTI ™ HL814 CONCRETE ANCHORS.
Order accessory kit #ACC210 which contains four
.312 x 1.625 concrete expansion anchors.
CONCRETE
PLASTER/
DRYWALL
ACC210
• Tighten wood screws so that ceiling plate is fi rmly
attached, but do not overtighten. Overtightening
can damage screws, greatly reducing their holding
power.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Make sure that mounting screws are anchored into
the center of the joists. The use of an "edge to edge"
stud fi nder is highly recommended.
WARNING
2-1 2-2
L
K
M
2
2
• Always attach concrete expansion anchors directly
to load-bearing concrete.
• Never attach concrete expansion anchors to
concrete covered with plaster, drywall, or other
fi nishing material.
WARNING
