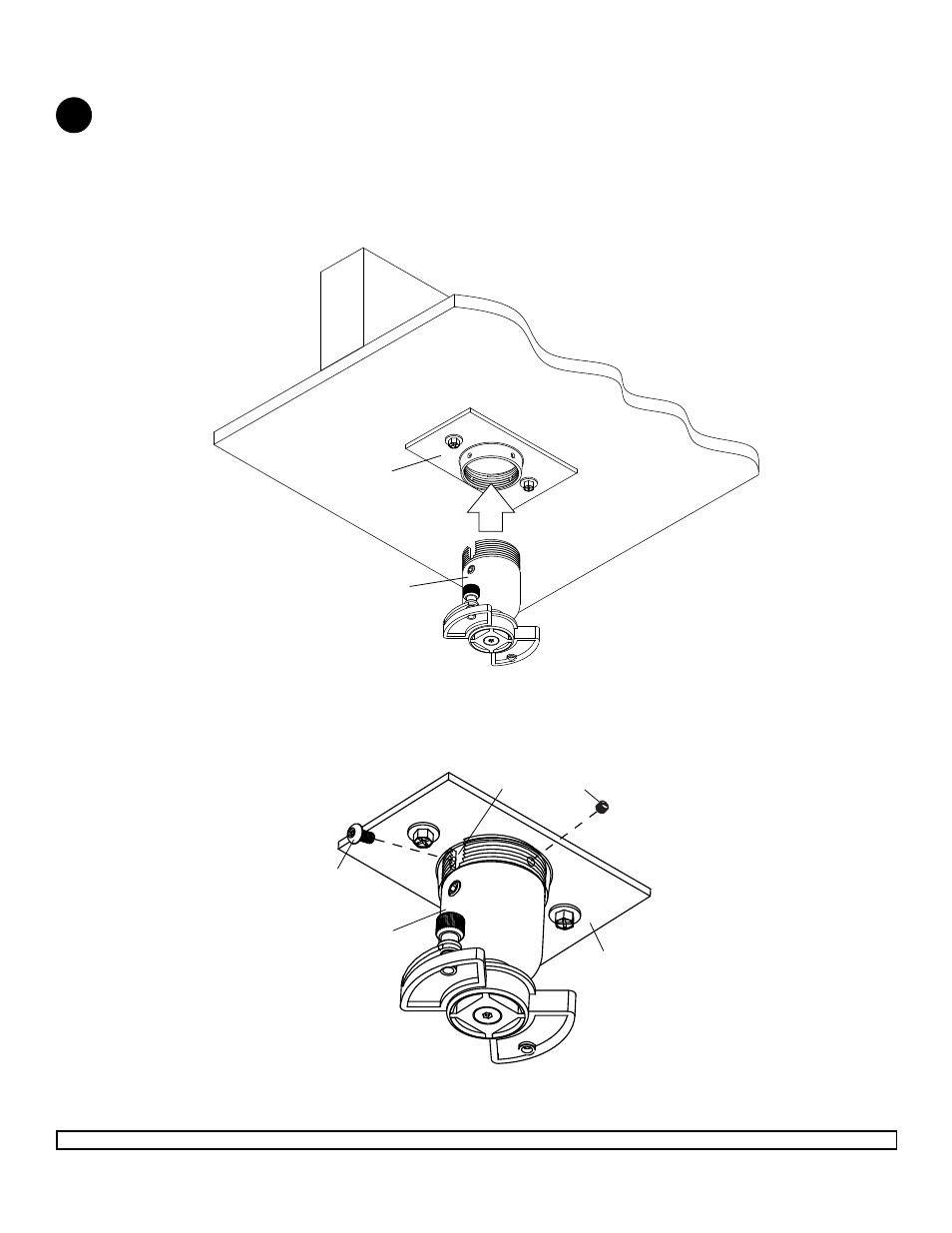

Screw ball and socket mount ( A) into ceiling plate (C) as shown in figure 3.1. Align the notch with one of the four
holes of the ceiling plate ( C) and secure ball and socket mount (A) with a M5 x 10 mm socket pin screw (E) using
security allen wrench ( U) as shown in figure 3.2
NOTE: Slotted set screw (L) is used to jam against the threads of the ball and socket mount to prevent any excess
movement of the ball and socket mount ( A). Do not overtighten screw; overtightening screw will damage threads
making it difficult to separate the products.
Skip to step 5.
Flush Mount Application
A
C
A
E
WOOD JOIST
CEILINg
NOTCH
C
L
3
figure 3.1
figure 3.2
