ISSUED: 01-14-09 SHEET #: 056-9018-2 05-18-10
Visit the Peerless Web Site at www.peerlessmounts.com
3 of 9
For customer care call 1-800-729-0307 or 708-865-8870.

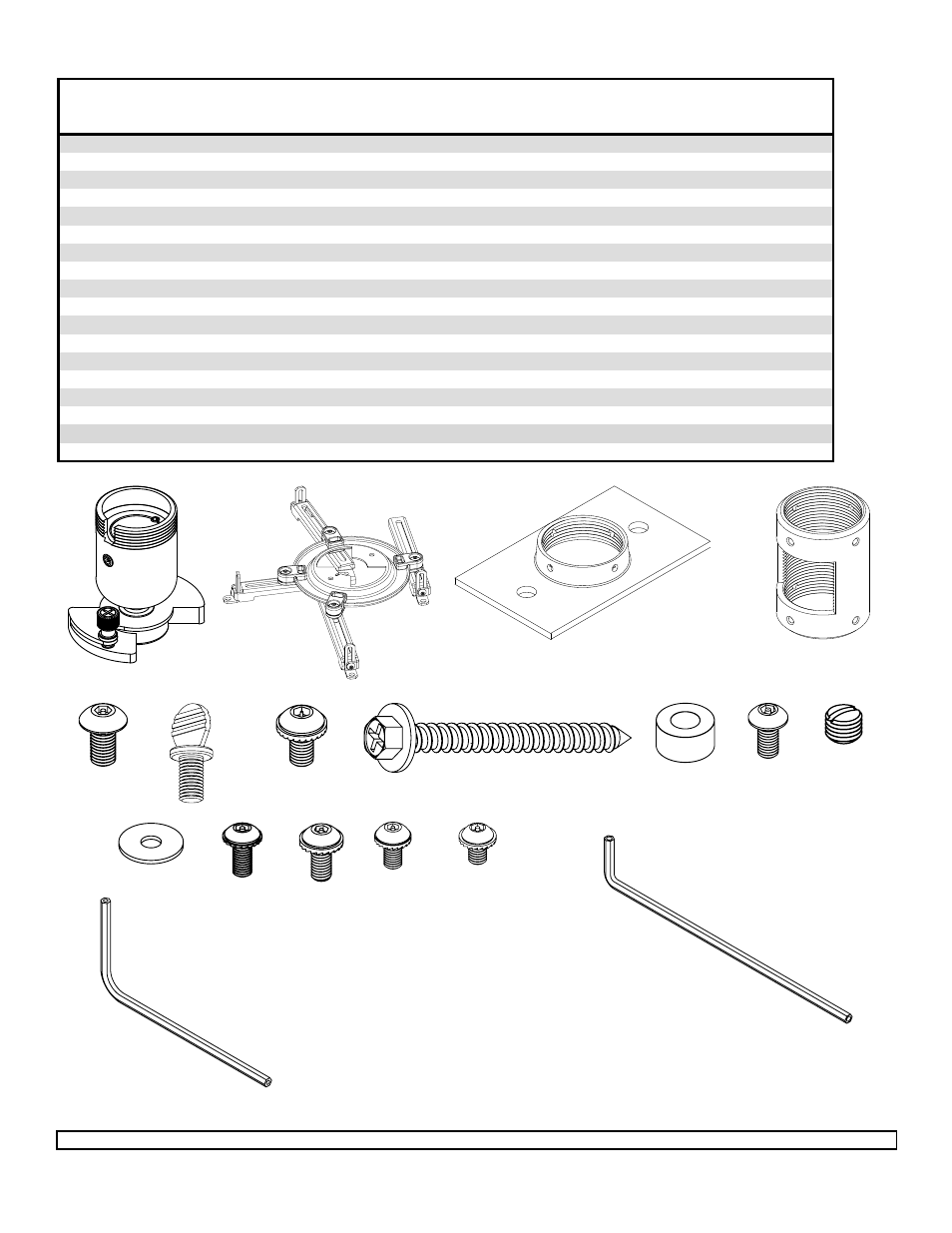

Before you start check the parts list to insure all of the parts shown are included.
A C D
Note: Actual parts may appear slightly different than illustrated.
E G F H J K L
B
O R N M P
PJF2-UNV PJF2-UNV-S
Description Qty. Part # Part #
A ball and socket mount 1 055-0011 055-0016
B adapter plate 1 055-1867 055-4867
C ceiling plate 1 580-1042 580-4042
D extension column connector with cord management 1 580-1025 580-4025
E M5 x .8 x 10 mm socket pin type F screw 1 520-1164 520-2031
F #10-32 x 3/8" spade thumb screw 1 560-1107 560-2107
G #10-32 x 3/8" serrated washer head socket pin screw 1 520-1151 520-2151
H #14 x 2.5 phillips hex head wood screw 2 5S1-015-C03 5S1-015-C04
J .25" ID x .56" OD x .26 spacer 2 590-1050 590-2071
K #10-32 x 3/8" socket pin screw 2 520-1084 520-2084
L #10-32 x 3/16" slotted set screw 3 520-1187 520-2187
M washer 4 540-1025 540-2025
N M3 x 8 mm serrated washer head socket pin screw 4 510-1004 510-2004
O M4 x 10 mm serrated washer head socket pin screw 4 510-1060 510-2060
P M5 x 10 mm serrated washer head socket pin screw 4 510-1126 510-2063
R M6 x 10 mm serrated washer head socket pin screw 4 510-1066 510-2066
T 2 mm security allen wrench 1 560-1097 560-1097
U 4 mm security allen wrench
1 560-9646 560-9646
Parts List
T
U
