11 of 38 ISSUED: 01-25-12 SHEET #: 095-9368-5 02-22-13

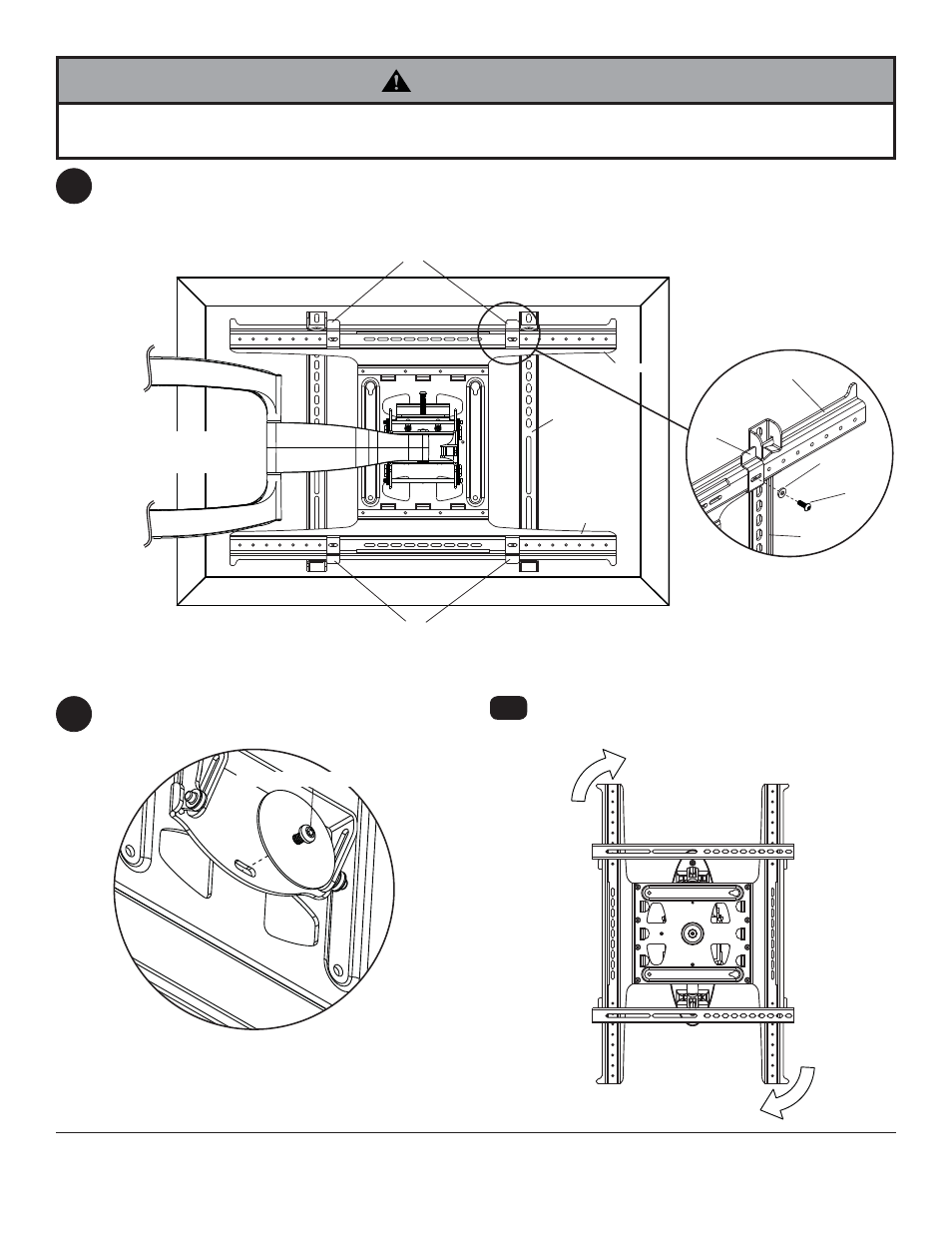

Install four portrait lock clips (E) to top and bottom rails using four M5 x 13mm self tapping screws (H) and four fl at
washers (I) as shown in detail 2. Tighten using allen wrench (N). Portrait lock clips must fi t snug against inside of
adapter brackets (B) as shown in fi gure 6.1. 6
• Portrait lock clips (E) must be securely installed to top and bottom rails against inside of adapter brackets (B).
Failure to place lock clips in correct location may cause injury.
WARNING
B
E
I
H
DETAIL 2
RAILS
E
E
B
fi g. 6.1
REAR OF
DISPLAY
BOTTOM RAIL
TOP RAIL
Remove button socket head screw with round plate
as shown in detail 3. 7 Rotate display clockwise 90°, then reinstall socket
head screw with round plate to lock down. 7-1
FRONT OF
DISPLAY
DETAIL 3
BUTTON SOCKET HEAD SCREW
Optional Orientation Adjustment
