ISSUED: 06-26-00 SHEET #: 139-9009-2 12-02-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
1 of 5
Read instruction sheet before you start installation and assembly.
Multi-Display System for Jumbo 2000 ® Mounts ........................................................... pages 2-3
Multi-Display System for Plasma Mounts ................................................................. pages 2, 4-5
Models: MDJ 701,
MDJ 711, MDJ 721

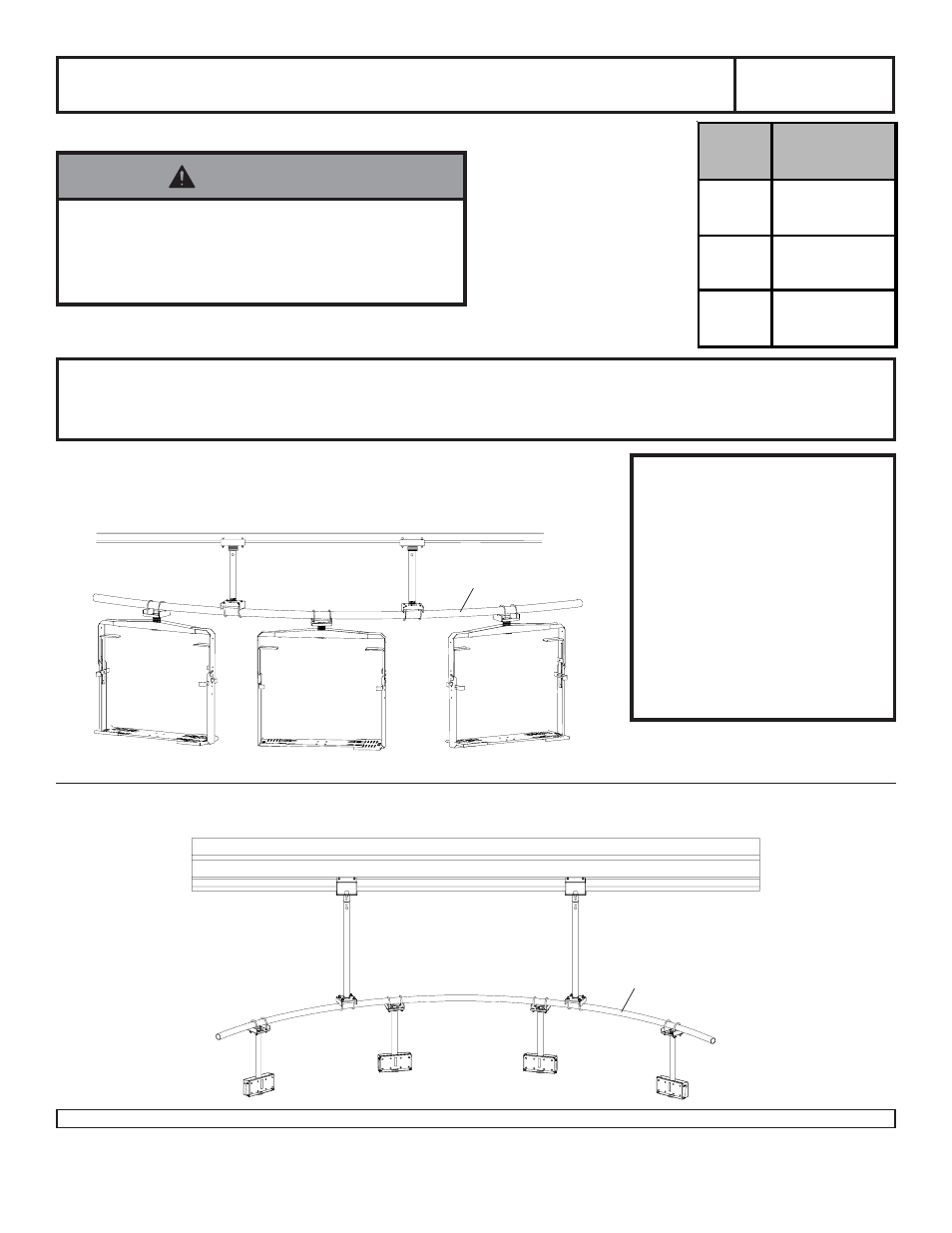

Installation and Assembly - Curvilinear Multi-Display ™ Systems
CURVILINEAR MULTI-DISPLAY ™ SYSTEM
FOR JUMBO 2000 ® MOUNTS
CURVILINEAR MULTI-DISPLAY SYSTEM FOR PLASMA MOUNTS
Additional models required
• †Ceiling Decoupler (DCT 600)
• Multi-Display Interface Bracket
(ACC 600)
• Fixed Length Extension Columns
• Jumbo 2000 mount (JM2640 ,
JM2650, or JM2660) or PLCM-2
plasma mount
Optional Accessories Kits
• Adjustable Extension Columns
(For more information call customer
service)
†Other ceiling decouplers may be used if mounted to
a structure other than an I-Beam (Call Customer
Service for more information).
1000 lb
(453.6 kg)
1200 lb
(544.3 kg)
1500 lb
(680.4 kg)
MDJ 721
Maximum
Load Capacity
Model
MDJ 701
MDJ 711
MDJ 701, MDJ 711, MDJ 721
MDJ 701, MDJ 711, MDJ 721
• Installer must verify that the ceiling will safely support
the combined weight of the Pipe, ACC 600, Extension
Columns, Jumbo/Plasma Mounts, Ceiling Decouplers,
and TVs/Plasmas.
WARNING
