Peerless-AV HLG440-PH-Q10 - Installation - Manual (Page 2)

2 of 4 ISSUED: 10-30-10 SHEET #:125-9164-2 09-14-11
LEFT SIDE

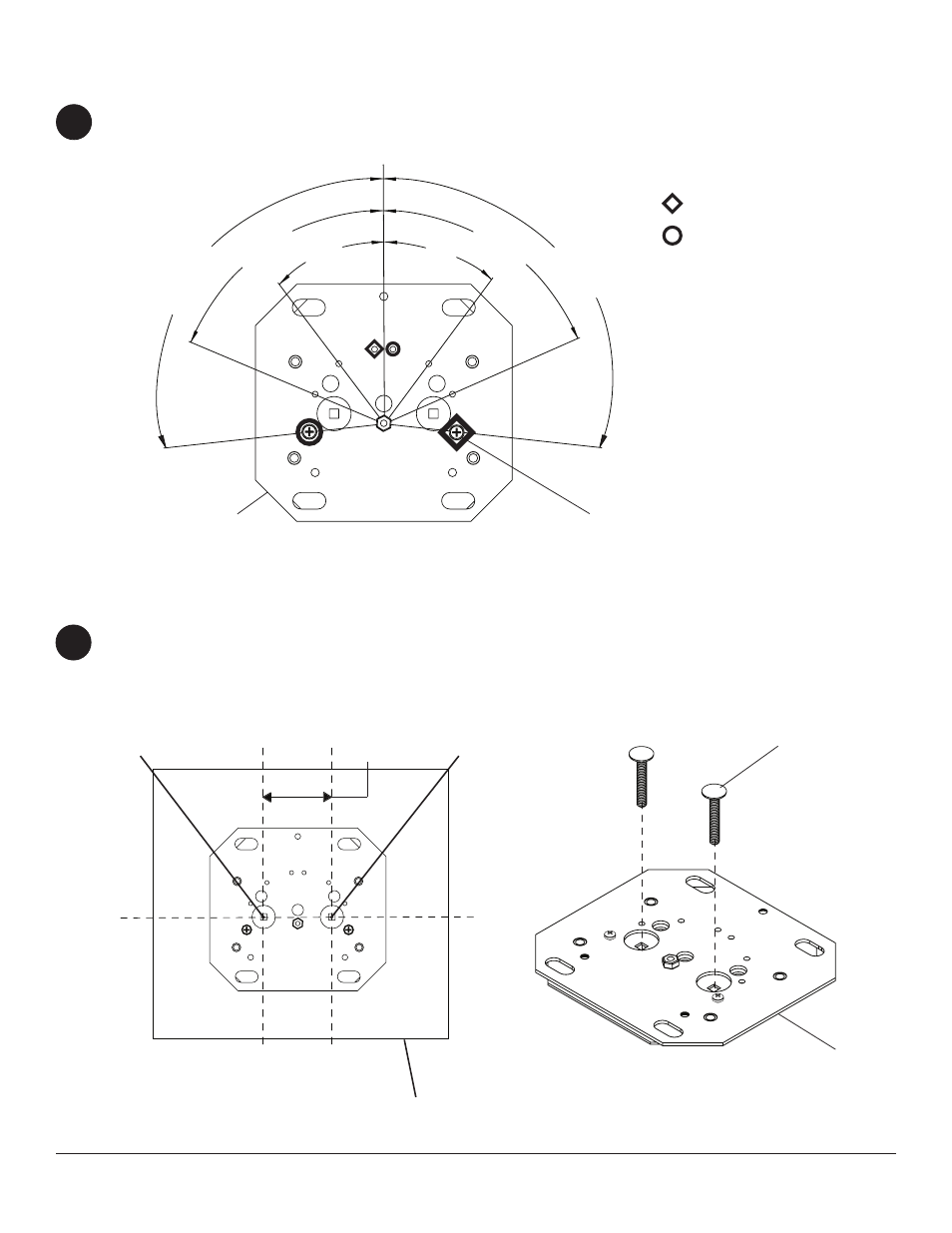

Use swivel plate assembly ( A) as a template to mark location of holes, point 1 and point 2, approximately 3" apart
on table. Drill two holes using a 1/4'' drill bit.
Place two 1/4-20 x 1-3/4" thin head carriage bolts ( C) into slots of swivel plate assembly (A).
2
POINT 1 POINT 2
TABLE TOP
3"
1
C
Choose swivel range below and identify swivel range holes of swivel plate assembly ( A).
SWIVEL RANGE HOLE
Mounting using Bolt Down Method
90°
60°
A
60°
90°
30° 30°
FRONT
FRONT
A
(76 mm)
USE HOLES TO LOCK SWIVEL
PLATE ASSEMBLY 90° FROM
CENTER
RIGHT SIDE
