3 of 10 ISSUED: 09-30-11 SHEET #: 009-9056-3 05-16-12
Before you begin, make sure all parts shown are included with your product.

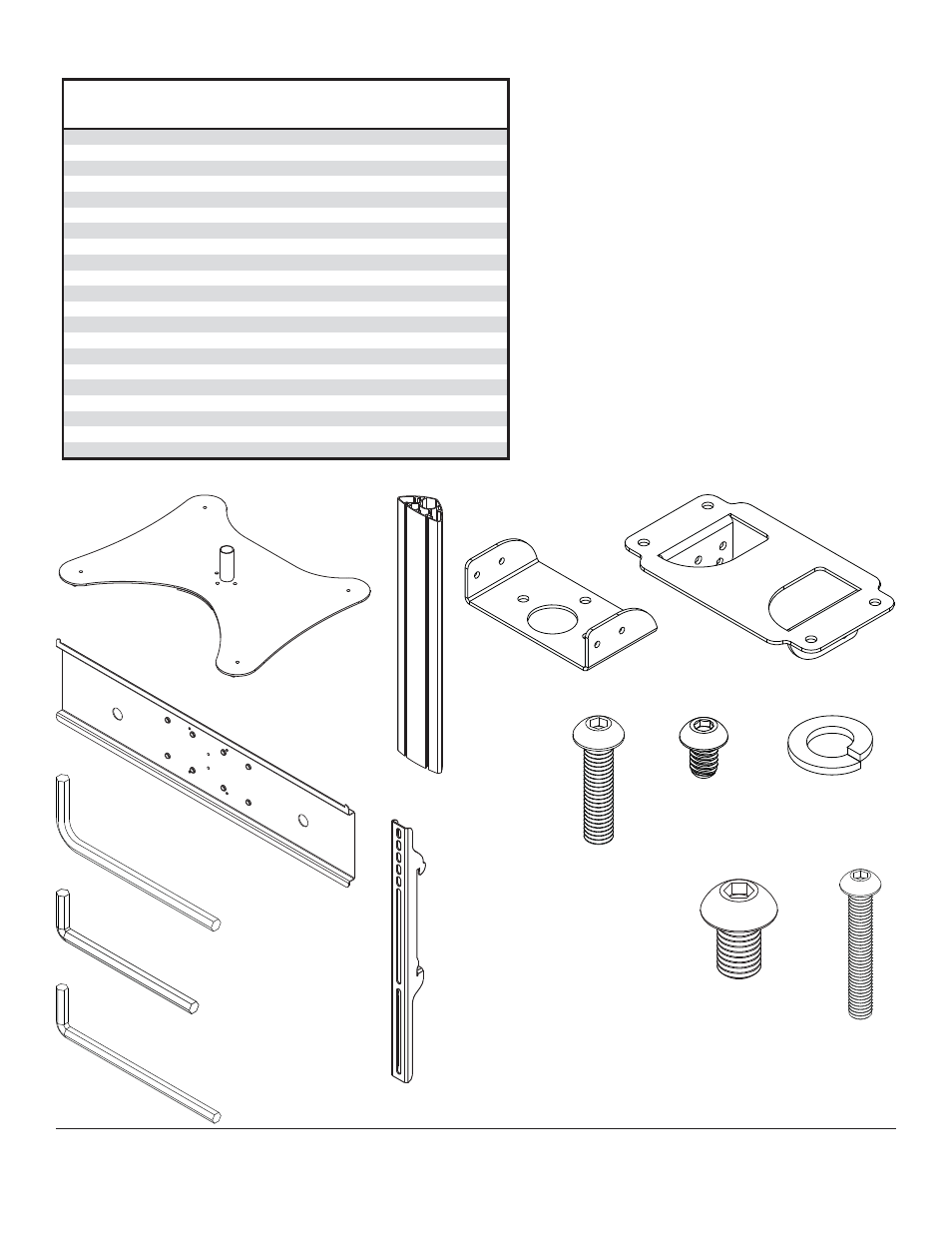

Parts List
Description Qty. Part Number
A base 1 009-1425
B column 1 009-1426
C column bracket 1 009-1424
D tilt plate 1 009-1423
E adapter plate 1 201-1110
F adapter bracket 2 201-1510
H 3/8-16 x 1" button socket cap screw 3 520-1354
I 5/16"-18 x 3/8" button socket cap screw 4 520-1693
J M10 lock washer 3 540-9424
K M10 x 15 mm button socket cap screw 4 520-9262
L 3/8-16 X 2-1/2" button socket cap screw 3 520-9550
M 6 mm allen wrench 1 560-9716
N 7/32" allen wrench 1 560-9715
O 3/16" allen wrench 1 560-0071
P top plate 1 201-1724
Q bottom plate 1 201-1699
R rubber feet (pack of four) 1 570-1036
S M8 x 15mm socket pin screw 4 520-1068
T M10 x 15mm penta-pin screw 4 520-9263
U M10 penta-pin tool 1 520-9260
V 4mm allen wrench 1 560-9646
Parts may appear slightly different than illustrated.
A
B
C
D
H
L
J
K
I
F
M
N
O
E
