Peerless-AV PRS-UNV - Installation - Manual (Page 3)

ISSUED: 09-19-05 SHEET #: 055-9441-10 06-04-11
Visit the Peerless Web Site at www.peerlessmounts.com
3 of 12
For customer care call 1-800-865-2112 or 708-865-8870.
PRS-UNV PRS-UNV-S PRS-UNV-W
Description Qty. Part # Part # Part #
A projector mount assembly 1 054-1174 054-4174 054-2174
B adapter plate 1 055-1938 055-4938 055-2938
C #14 x 2.5 phillips hex head wood screw 2 5S1-015-C03 5S1-015-C04 5S1-015-C04
D concrete anchor 2 590-0320 590-0320 590-0320
E #10-32 x 1/4" socket pin screw 1 520-1196 520-2196 520-2196
F 1/4" flat washer 2 540-1078 540-2078 540-2078
G M3 x 8 mm socket pin serrated washer head screw 4 510-1004 510-2004 510-2004
H M4 x 10 mm socket pin serrated washer head screw 4 510-1060 510-2060 510-2060
I M5 x 10 mm socket pin serrated washer head screw 4 510-1126 510-2063 510-2063
J M6 x 10 mm socket pin serrated washer head screw 4 510-1066 510-2066 510-2066
K #6 flat washer 4 540-1025 540-2025 540-2025
L 4 mm security t-wrench 1 560-1718 560-1718 560-1718
M 2 mm security allen wrench 1 560-1097 560-1097 560-1097
Parts List

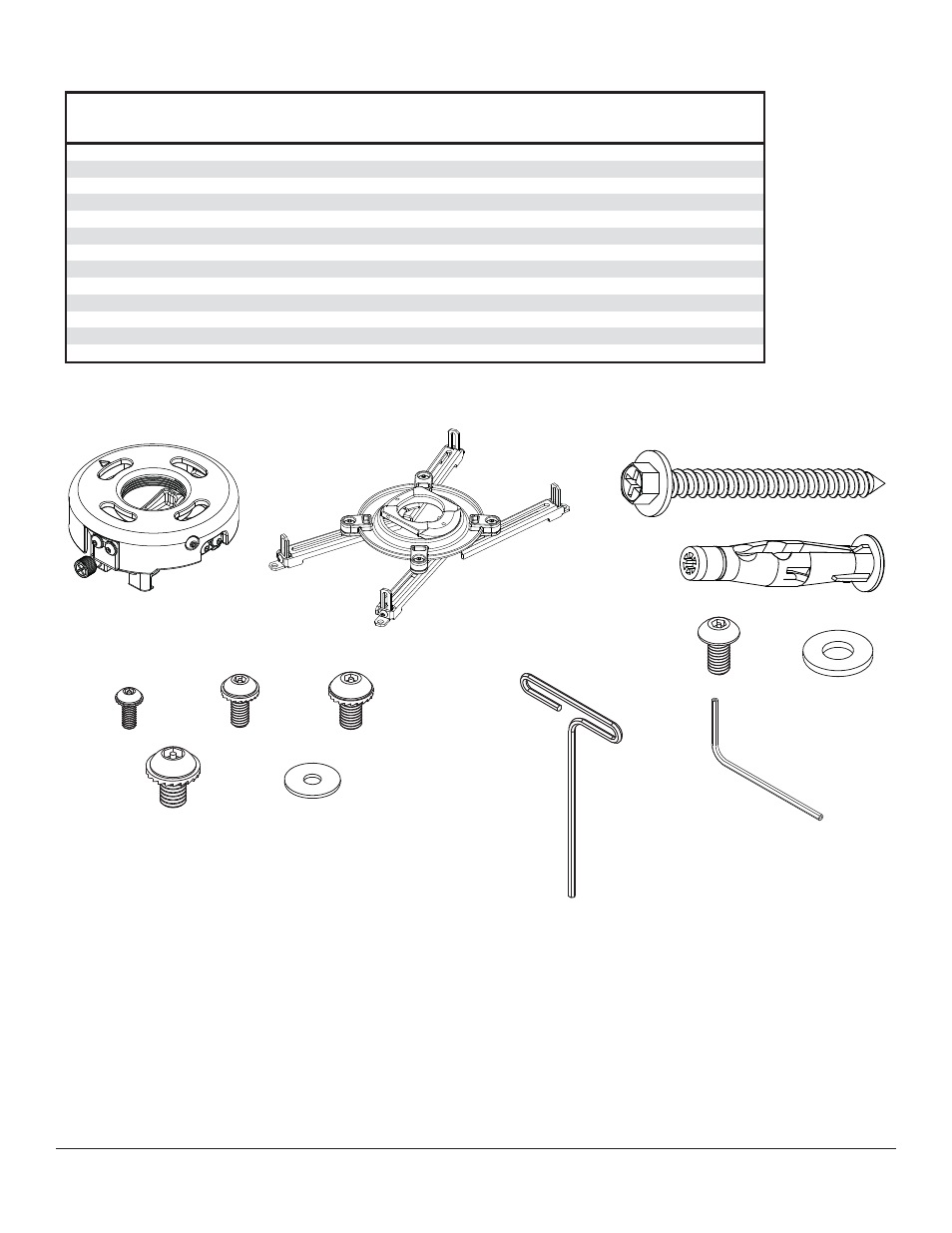

Before you start check the parts list to insure all of the parts shown are included.
D
C
Note: Actual parts may appear slightly different than illustrated.
E
B
F
H G I
J
K
L
M
A
