ISSUED: 06-26-00 SHEET #: 139-9010-3 12-02-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 5

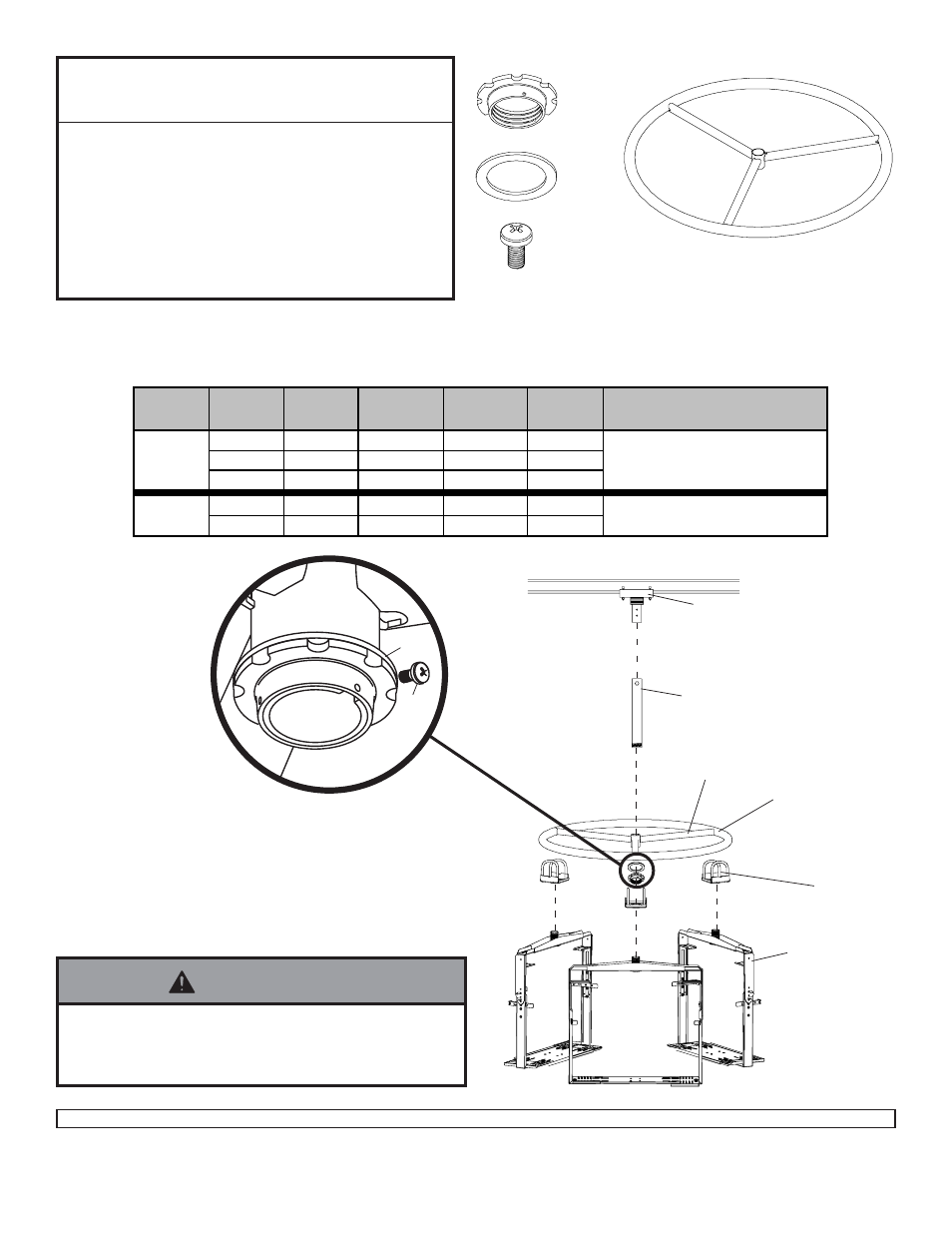

Parts List
Description Qty. Part #
A circular pipe 1 139-1076
B retaining collar 1 1800-375
C fiber washer 1 540-9432
D M5 x 0.8 x 10 mm pan head 1 520-9250
self-tapping phillips screw
Note: Some parts may appear slightly different than illustrated.
A
C
B
D
A
ACC 600
Fixed Length Extension Column
Jumbo 2000 mount
JUMBO JUMBO PIPE COLUMNS ACC 600 ACC 600 Approx. spacing
QTY. SIZE DIAMETER REQ REQ (center to center for Jumbos)
MDJ 760 JM2640 48" 1 3
MDJ 760 JM2640 48" 1 3
MDJ 760 JM2660 48" 1 3
MDJ 760 JM2640 48" 1 4
MDJ 760 JM2650 48" 1 4
MODEL #
End of one ring extender pipe
90° / 36"
3
4
Ceiling Decoupler
Ring Extender Pipe
Slide circular pipe (A) and fiber washer (C) over end of
extension column (sold separately). Thread retaining collar
(B) onto threaded end of extension column. Tighten four or
five complete turns. Insert and securely tighten one M5 x .8 x
10 mm self-tapping phillips screw (D) as shown in detail 1.
DETAIL 1
• The M5 self-tapping phillips screw is essential for
safety. Be sure to lock retaining collar into place with
this screw.
WARNING
B
D
C
