7 of 23 ISSUED: 04-05-11 SHEET #: 090-9200-5 (2013-12-03)

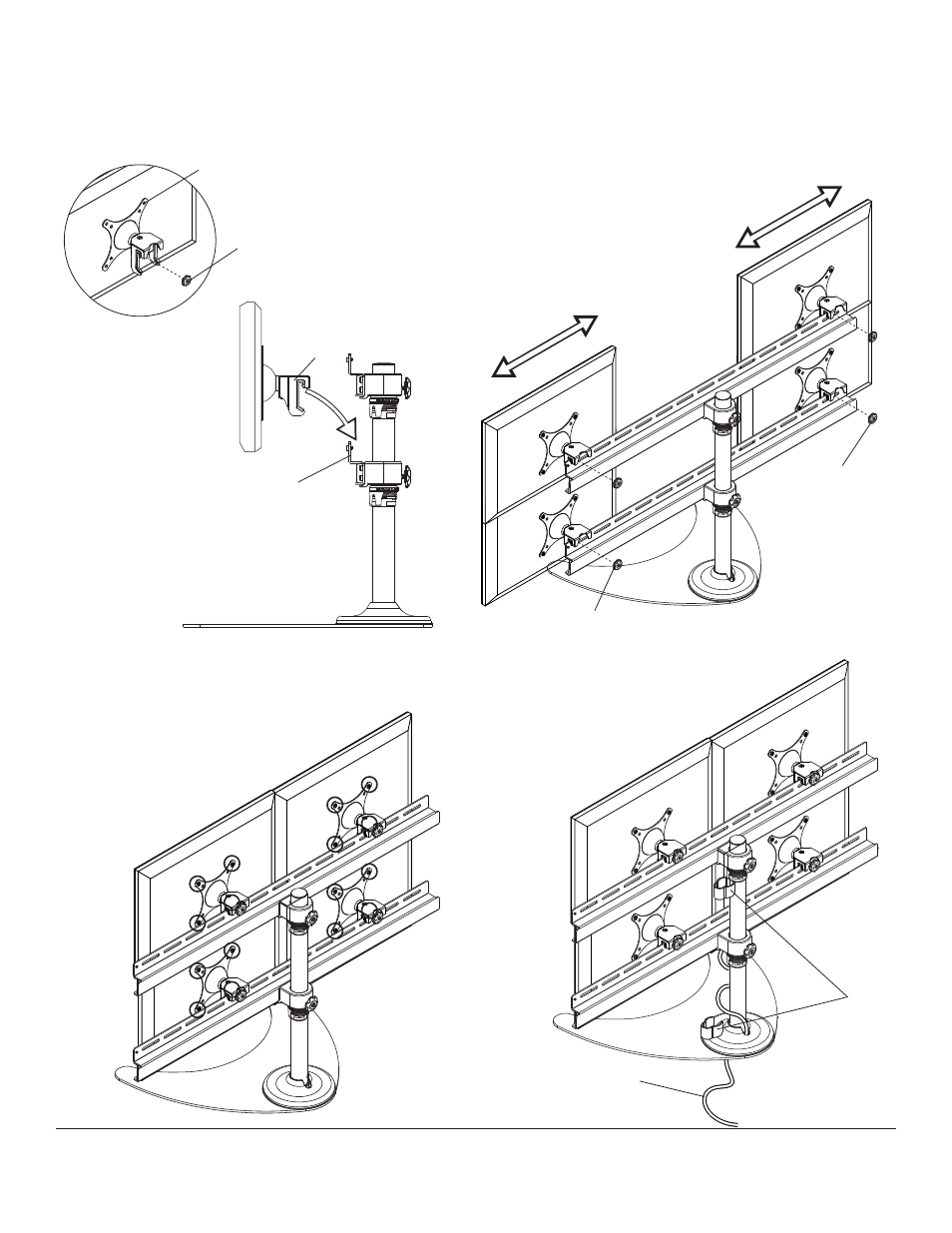

Remove knobs (I) from rear of mounting brackets (B) as shown in detail 2. Hook mounting brackets (B) onto crossbar (E)
as shown in fi gure 6.3.
Adjust position of displays horizontally to desired location and install knobs (I) into rear of mounting brackets. Displays
need to be the same distance from center of crossbar (E) to ensure weight is evenly distributed. Knobs (I) may be
tightened using 3mm allen wrench (K).
B
B
E
Once displays are aligned, tighten screws (F,G) as shown in fi gure 6.5.
Cables may be routed using cable clip (J) as shown in fi gure 6.6.
I
I
I
J
CABLES
fi g 6.3
fi g 6.4
fi g 6.5 fi g 6.6
DETAIL 2
