4 of 4 ISSUED: 09-08-10 SHEET #:125-9142-4 09-15-11
5
DISPLAY
DISPLAY
DISPLAY BASE
NOTE: Display and base may appear
different than illustrated

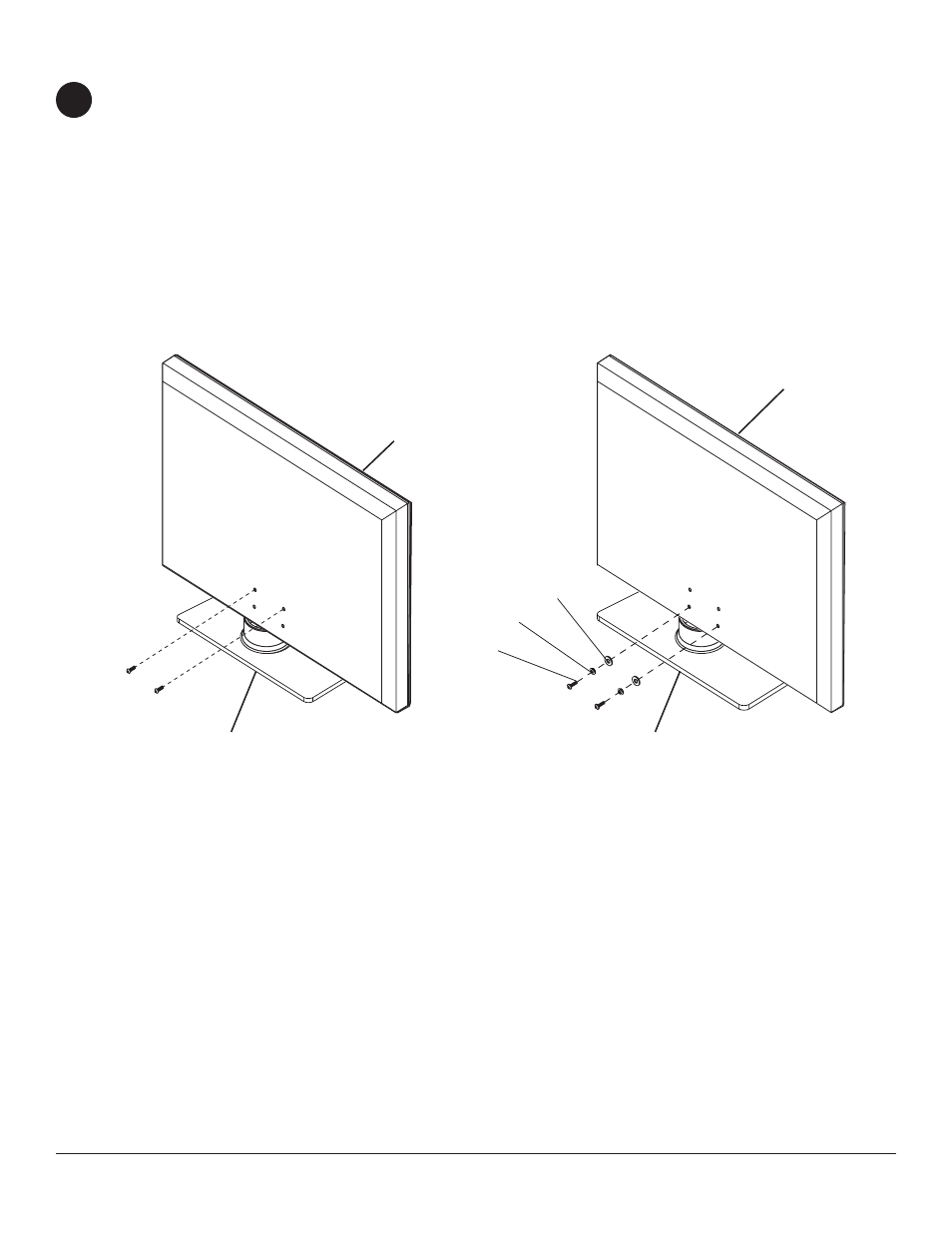

Installation of Security Screws for Base to Display Attachment
K
I
32" Display Base
Attach display to base using two M4 x 16 mm socket pin serrated washer head screws ( J) into top holes as shown
below. Tighten with 4 mm security allen wrench ( L).
Use screws supplied with display for remaining holes .
42" Display Base
Attach display to base using two M4 x 12 mm socket pin screws ( K), two #8 split lock washers (H), and two
M4 flat washers ( I) into bottom holes as shown below. Tighten with 4 mm security allen wrench ( G).
Use screws supplied with display for remaining holes .
© 2011, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
DISPLAY BASE
32" Display Base Attachment Location
(note orientation of screws)
42" Display Base Attachment Location
(note orientation of screws)
H
J
