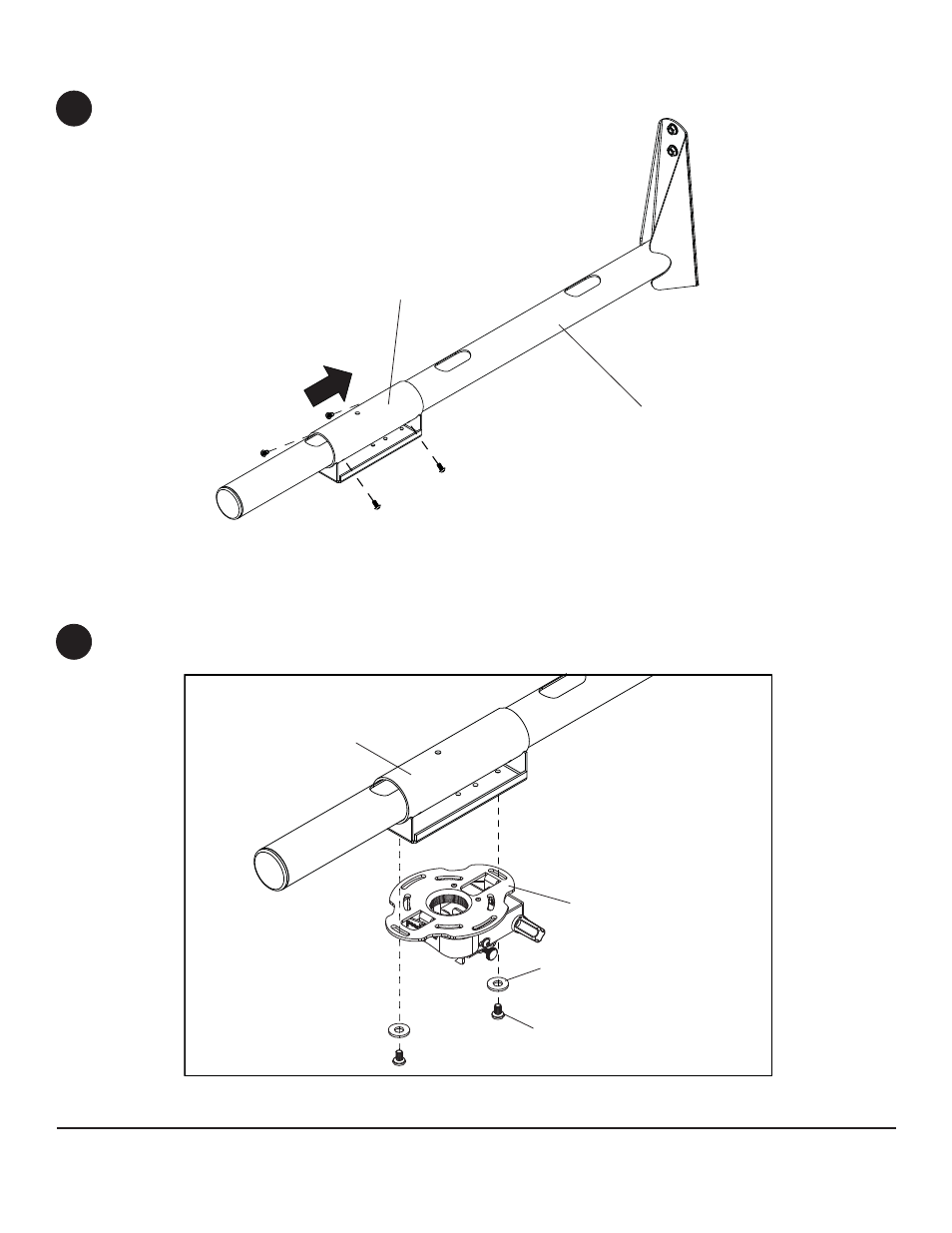

Slide carriage (B) over wall arm (A) and adjust to the desired projector throw distance as shown. Lock carriage
(B) into place using four M5 x 10 mm screws (D).
B
A
Assembly of Adjustment Tube
Installing PRGS projector mount to wall arm assembly: Attach PRGS projector mount (J) to carriage (B) using
two 1/4-20 phillips screws (H) and two fl at washers (I) as shown below.
D
Installing PRGS Projector Mount
B
2
3
H
I
J
