7 of 10 ISSUED: 07-25-11 SHEET #: 090-9204-5 11-30-12

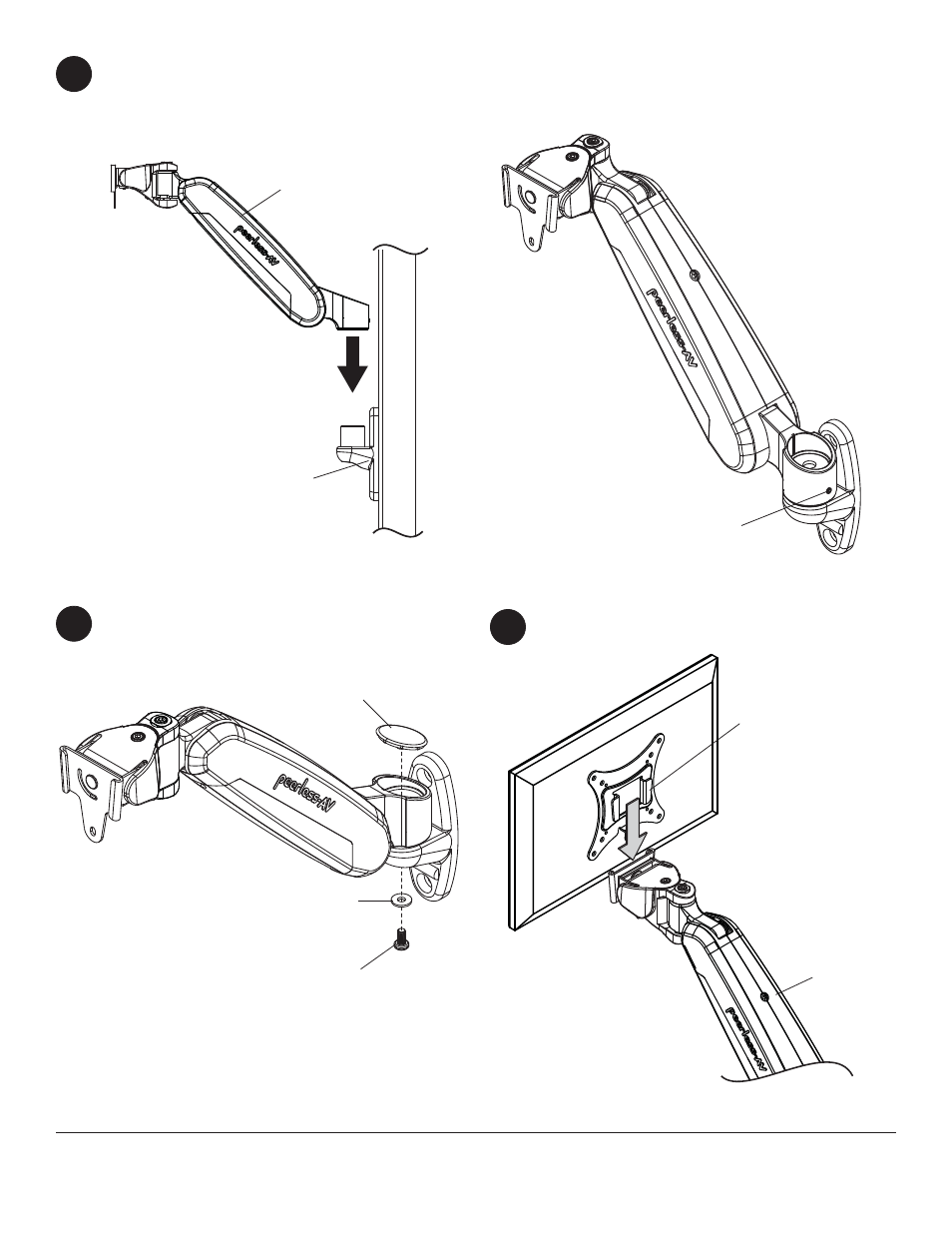

Insert arm assembly (B) onto wall plate ( A ) as shown in fi gure 3.1.
Tighten set screw on rear of arm assembly (B) using 2.5mm allen wrench (J) as shown in fi gure 3.2.
Secure arm assembly (B) to wall plate (A) with
one M6 x 12mm phillips screw (K), one M6 plastic
washer (L), and cover (M).
3
4
B
M
L
K
A
SET SCREW
fi g. 3.1
fi g. 3.2
B
ADAPTER PLATE
Hook adapter plate onto arm assembly (B). 5
