7

2012-04-18 #:203-9127-1

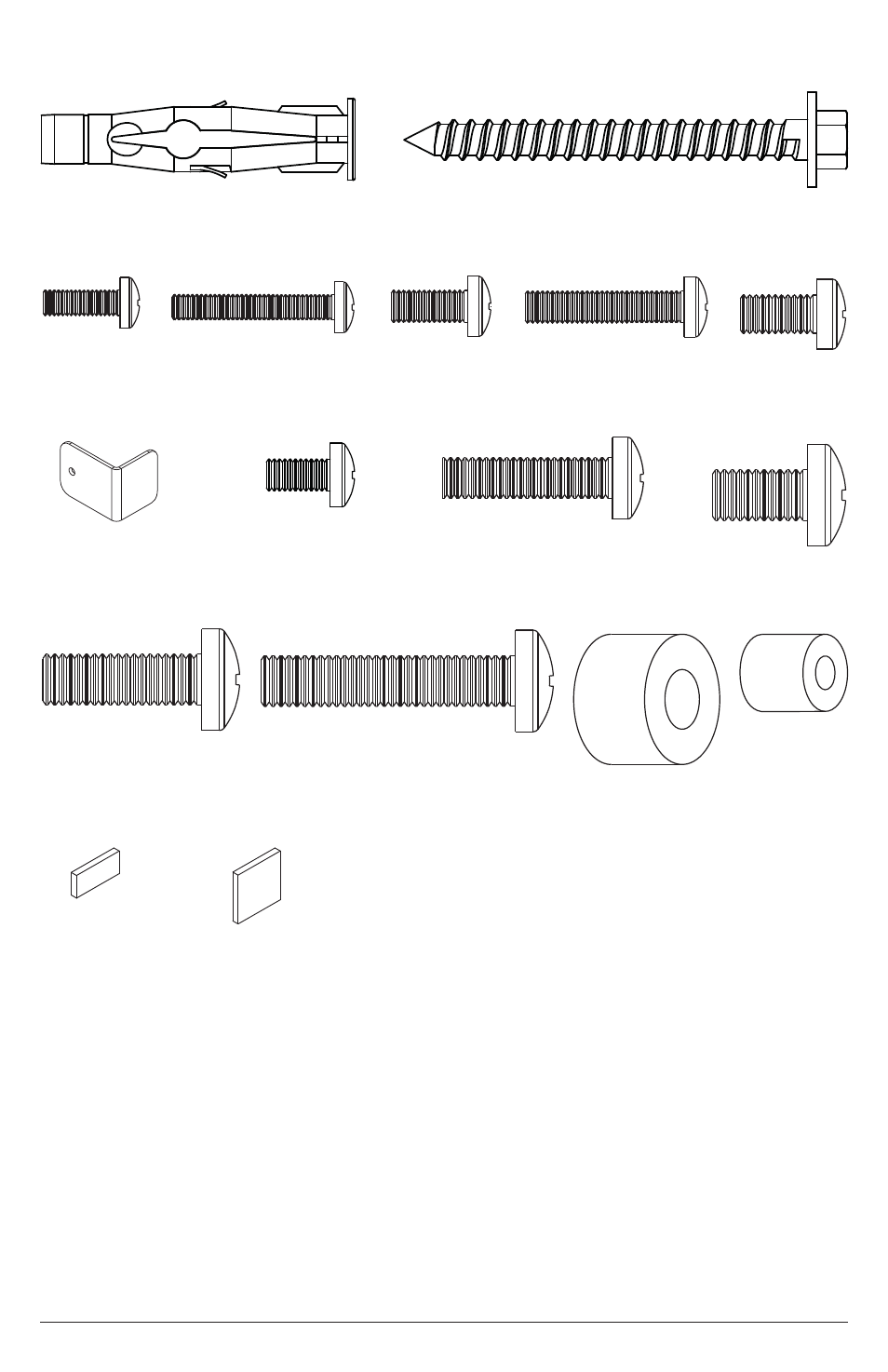

M (4)

M6 x 25 mm

E (6)

#14 x 2-1/2" wood screw

Q

(4)

large spacer

R (4)

small spacer

N (6)

M8 x 16 mm

P (4)

M8 x 40 mm

O (4)

M8 x 25 mm

D (6)

8mm concrete anchor

K (2)

wall support bracket

S (2)

small foam pad

T (2)

large foam pad

L (2)

wall support screw

F (6)

M4 x 12 mm

G (4)

M4 x 25 mm

H (4)

M5 x 12 mm

I (4)

M5 x 25 mm

J (4)

M6 x 12 mm
