• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Do not attach directly to a metal stud wall. Use of a triple stud WSP wall plate is required for attachment to metal
studs (contact customer care). Metal stud installation is not UL evaluated.
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud fi nder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-
ers are responsible to provide hardware for other types of mounting situations (not evaluated by UL).
• Never exceed the Maximum UL Load Capacity of 175 lb (79 kg).
1
WARNING
Installation to Wood Stud Wall

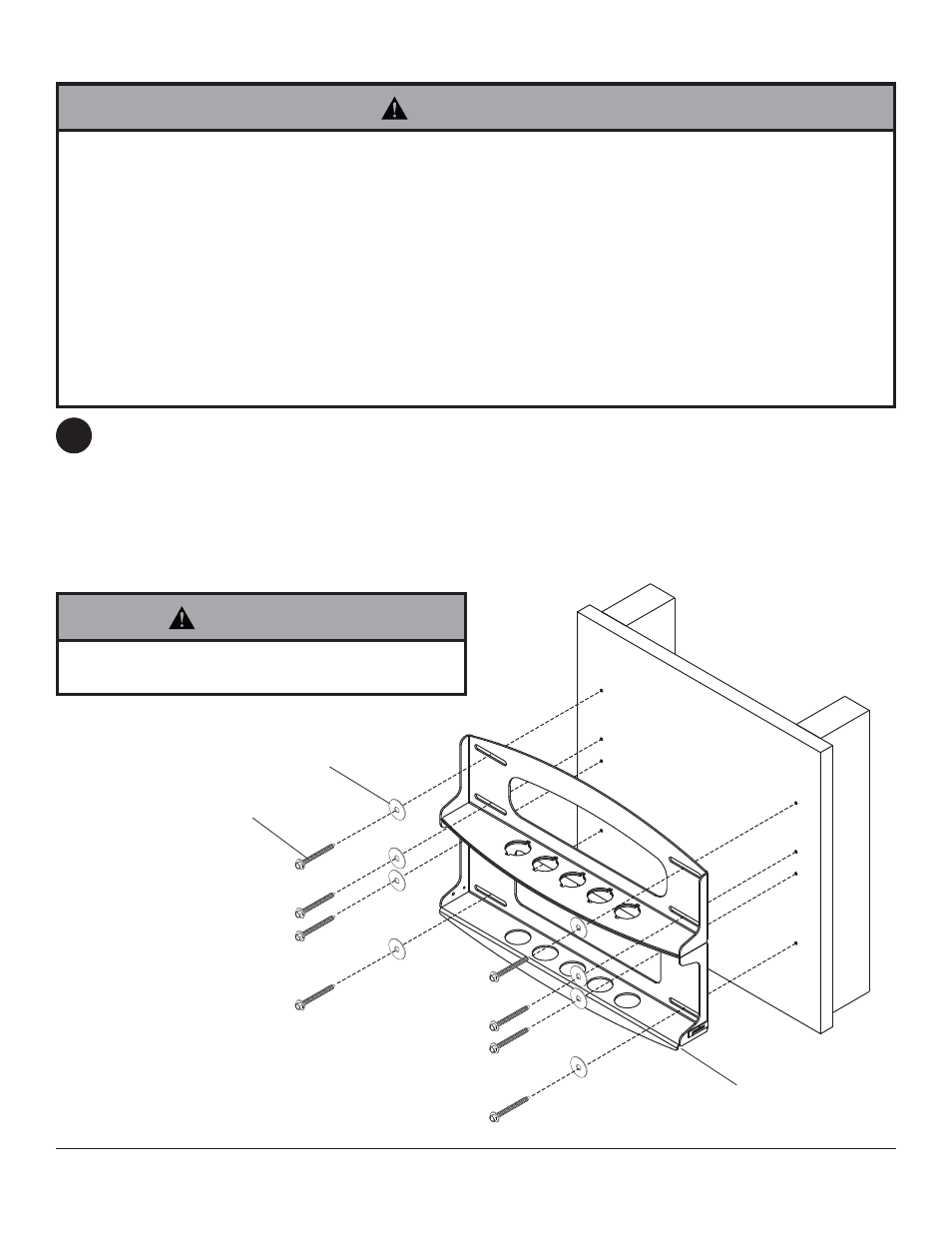

Wall plate (A) can be mounted to two studs that are 16" apart. Use a stud fi nder to locate the edges of the
studs. Use of an edge-to-edge stud fi nder is highly recommended. Based on their edges, draw a vertical line
down each stud’s center. Place wall plate on wall as a template. The top mounting slots should be located .36"
above the desired screen center for PLA60 and PLA60-S and .43" below the desired screen center for PLAV60
and PLAV60-S. Level plate, and mark the center of the eight mounting holes. Make sure that the mounting
holes are on the stud centerlines. Drill eight 7/32" dia. holes 3" deep. Make sure that the wall plate is level,
secure it using eight 5/16 x 3" wood screws (O) and washers (P).
Skip to step 2 on page 6.
A
O
P
• Never mount this product to metal studs without the
required accessory.
WARNING
