For expanded product information and technical data visit www.peerless-av.com TECHNICAL DRAWINGS
To verify mount compatibility with any flat panel display or projector model use MountFinder TM at www.peerless-av.com
CALL: 630-375-5100
800-865-2112
ONLINE:
www.peerless-av.com FAX: 630-820-8537
800-359-6500
E-MAIL:
[email protected]
DCT
ADD
ACC600
PLP
EXT or AEC
PLCM-2
1. Multi-Display ceiling
mount for 3 to 4 flat
panel displays
2. Three different
configurations:
in-line, curvilinear, and
circular
3. Choose desired ceiling
drop length and drop
length of equipment
from pipe
4. 0° to 20° adjustable tilt
5. 360° swivel for
each display

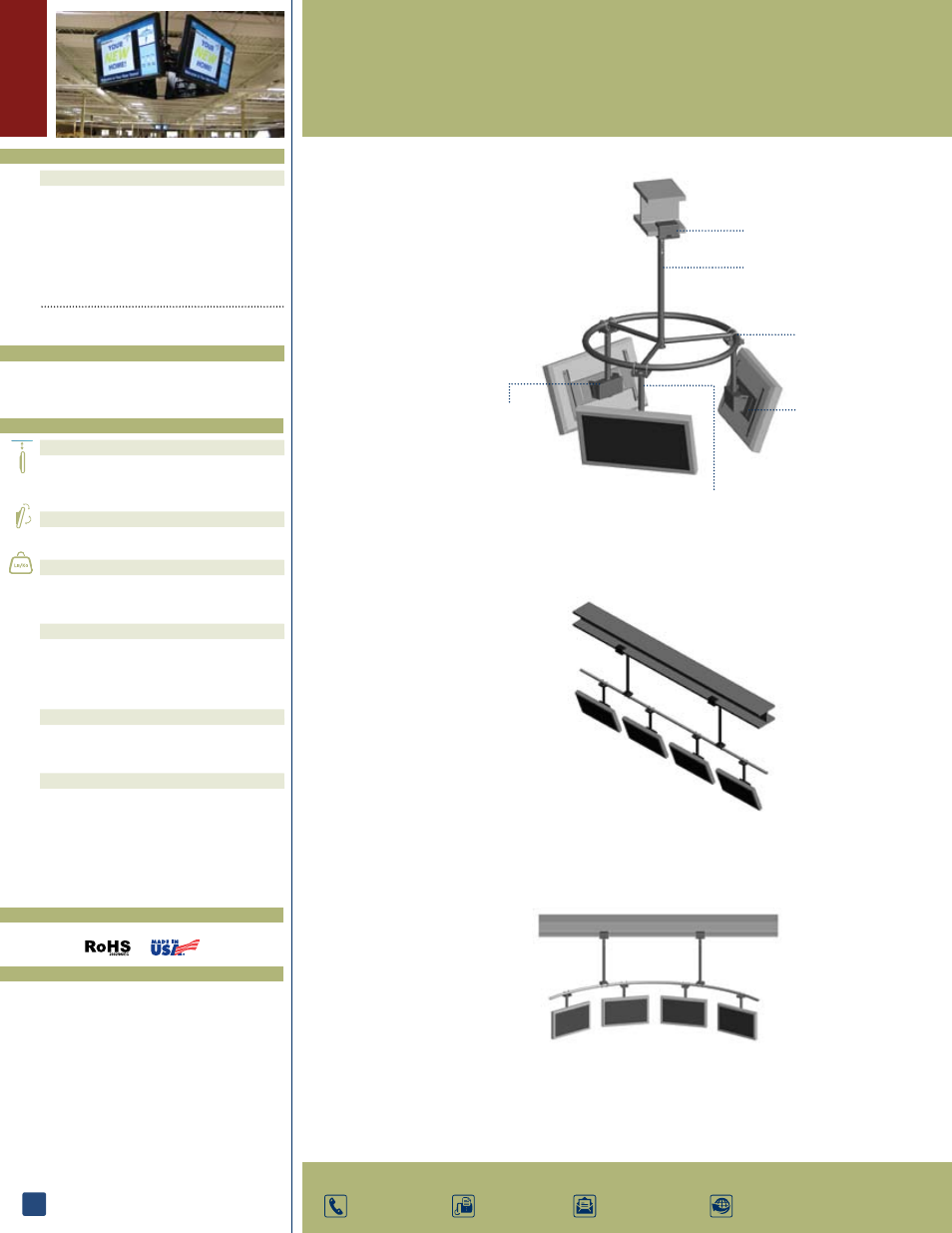

In-line configuration
Curvilinear configuration
Circular configuration
Multi-Display Ceiling Mount
For 32" to 50" Flat Panel Displays
See chart for components needed
to complete installation ...........pg# 97
FL
A
T
PA
N
EL
MOUNTS
MODELS
DISPLAY ADAPTER
Distance from Ceiling
1'-12' (305-3658mm)
Varies depending on ceiling plate
and extension column used
Tilt | Swivel
+20° | 360°
Max Load
600-1200lb (272-545kg)
Depending on ceiling attachments used
Product Dimensions (Pipe Length)
MDJ700/701: 120" (3048mm)
MDJ710/711: 180" (4572mm)
MDJ720/721: 240" (6096mm)
MDJ760: 48" (1220mm)
Mounting Surfaces
Virtually all ceiling surfaces
(Requires accessory)
Ship Weight
MDJ700: 31lb (14.1kg)
MDJ710: 45lb (20.4kg)
MDJ720: 62lb (28.1kg)
MDJ701: 27lb (20.4kg)
MDJ711: 35lb (15.9kg)
MDJ721: 56lb (24.5kg)
MDJ760: 45lb (20.4kg)
SPECIFICATIONS
CERTIFICATIONS
ACCESSORIES
Dedicated Models: Requires display-specific adapter to
be purchased separately.
Dedicated Models:
Includes theft resistant hardware for attaching display to mount
Display adapter purchased separately*
MDJ700 In-line Display Black
MDJ710 In-line Display Black
MDJ720 In-line Display Black
MDJ701 Curvilinear Display Black
MDJ711 Curvilinear Display Black
MDJ721 Curvilinear Display Black
MDJ760 Circular Display Black
* Dedicated adapter plates come in flat black and include security fasteners
