3 of 24 ISSUED: 08-09-10 SHEET #: 061-9059-4 10-18-10
Description Qty. Part # Model # Part #
A adapter box 1 061-7350 FPECMC-01 061-7368
B tilt plate 1 061-7351 FPECMC-02 061-7369
C ceiling assembly 1 061-7353 FPECMC-03 061-7370
D support column 1 see chart FPECMC-04 061-7371
E M10 x 16 mm socket screw 4 520-5013
F split lock washer 4 540-5001
G 1/4"-20 x 3/4" socket cap screw 6 520-5034
H 1/4"-20 nylock nut 6 530-5007
I u-bolt with hex nuts 2 520-5037
J carriage bolt 3 520-5039
K 3/8-16 nylock nut 3 530-5004
L ceiling clamp 2 061-7357
M 1/2" x 4-1/2" hex head bolt 8 520-5022
N 1/2" washer 8 540-2091
O 1/2" locknuts 4 530-5005
P 1/2-13 hex nut 4 530-5010
Q 5mm washer 6 540-5014

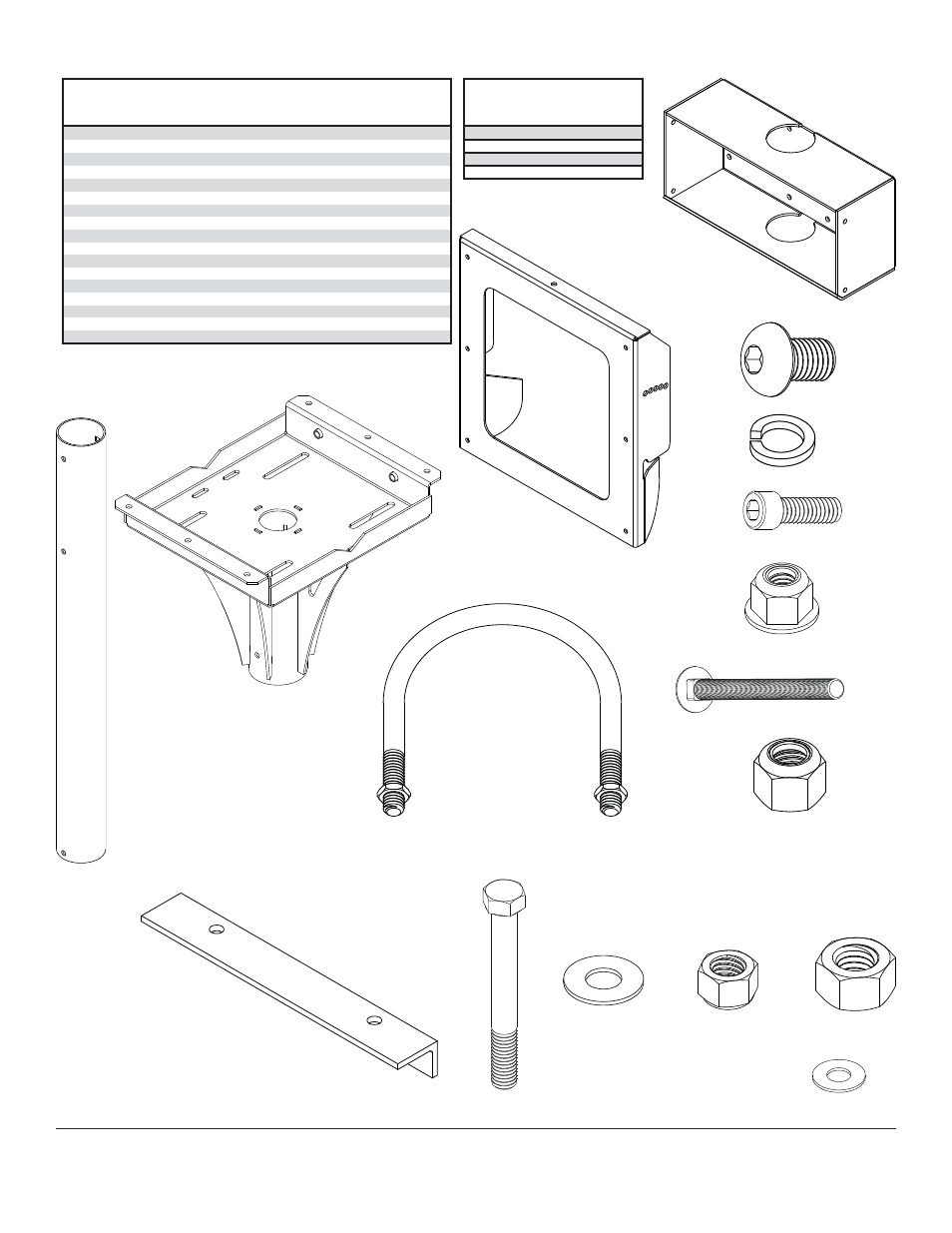

Parts List Support Tube (D)
Parts may appear slightly different than illustrated.
Before you begin, make sure all parts shown are included with your product.
D
E
I
J
K
M
L
N
O
P
F
G
H
A
B
C
Q
