Installation to Extension Column / Ceiling Plate

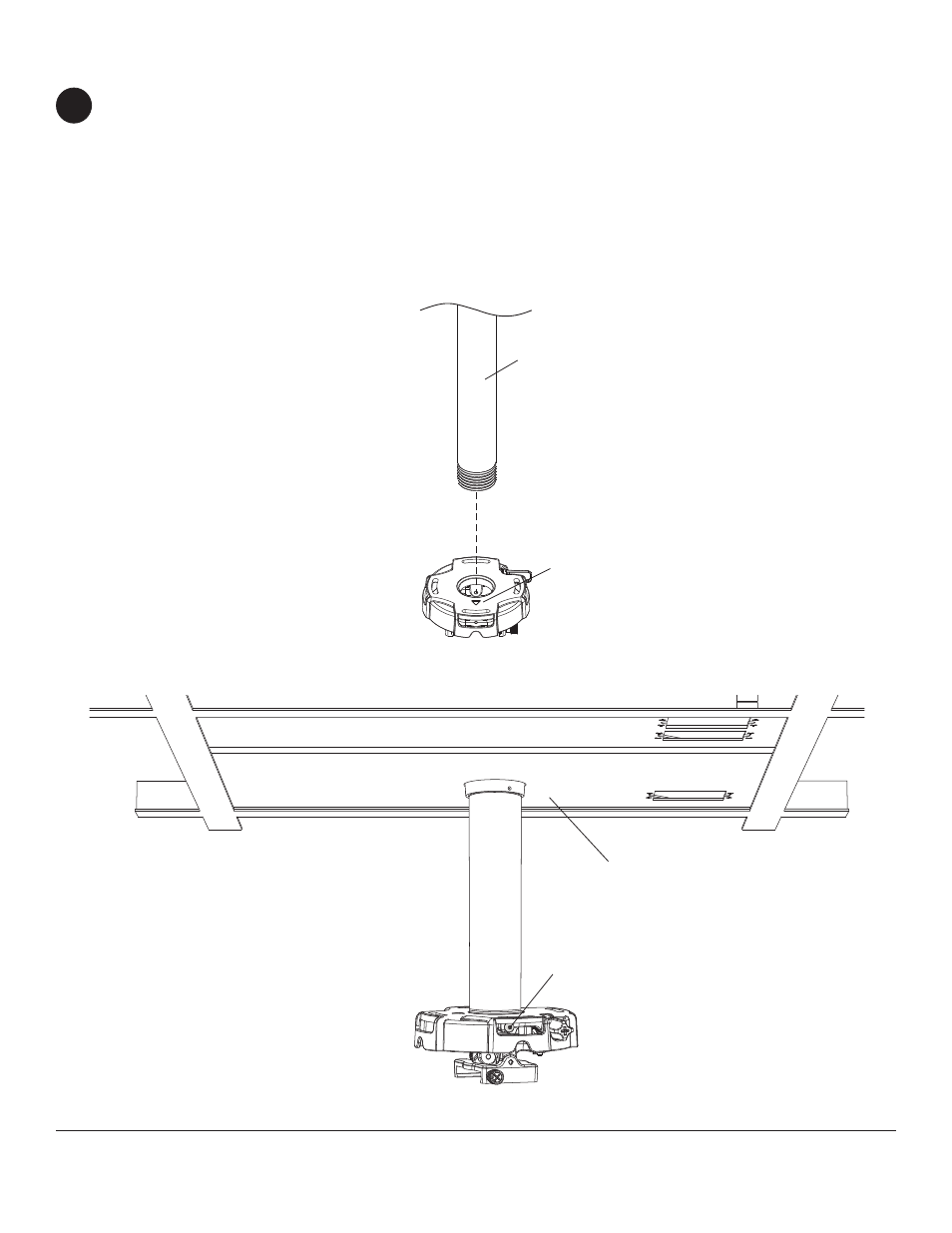

fi g. 1.1
fi g. 1.2
1
NOTE: Refer to accompanying instructions with ceiling plates (sold separately) for installing these models to
ceiling.
Screw projector mount assembly (A) onto extension column as shown in fi gure 1.1. Tighten swivel stop screw
against extension column, fl ush mount tube or reducer using 4mm security allen wrench (B) as shown in fi gure
1.2.
NOTE: Swivel stop screw is used to jam against threads of extension column, fl ush mount tube or reducer to
prevent any excess movement of projector mount assembly (A). Do not overtighten screw; overtightening screw
will damage threads making it diffi cult to separate products.
Skip to step 5.
A
1-1/2" EXTENSION COLUMN
(SOLD SEPARATELY)
(UL LISTED EXT OR AEC SERIES)
ARROW INDICATES
FRONT OF MOUNT
SWIVEL STOP SCREW
CMJ 455
(SOLD SEPARATELY)
