6 of 27

ISSUED: 01-21-11 SHEET #: 083-9014-1

Attach support clips (L) to shelf bracket (J) and slide to desired position as shown in fi gure 3.1.
Securely tighten all set screws using the 2.5 mm allen wrench (N). Do not overtighten screws.

NOTE: Set screws may already be attached to support clips.

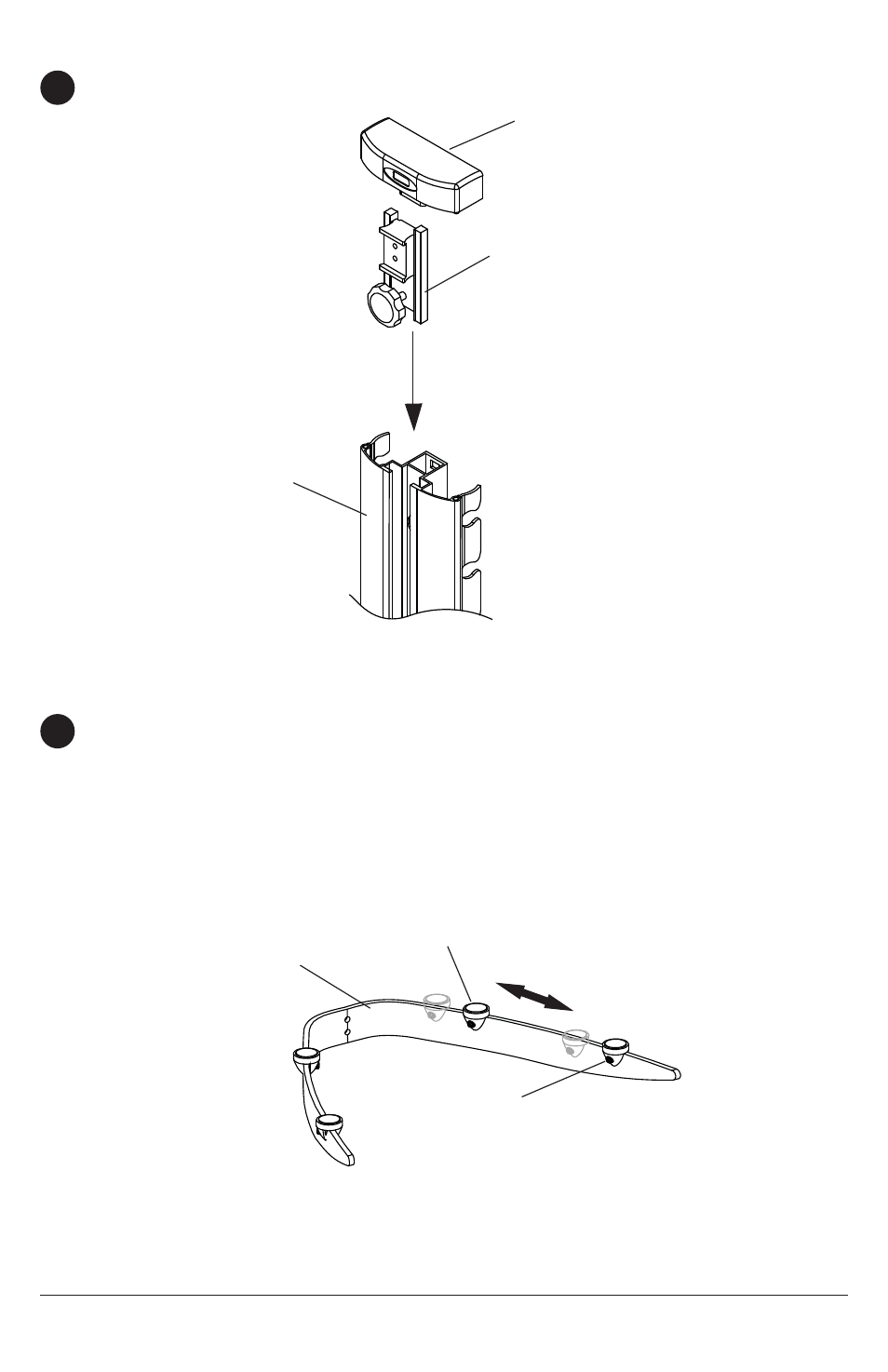

Slide shelf attachment clamps (D) into columns (A) and reattach end cap onto column (A) as
shown in fi gure 2.1.

2

Installing Shelf to Column

fi g. 3.1

fi g. 3.1

D

A

L

J

3

END CAP

SET SCREW
