ISSUED: 05-05-00 SHEET #: 081-9021-4 09-21-06

1 of 4

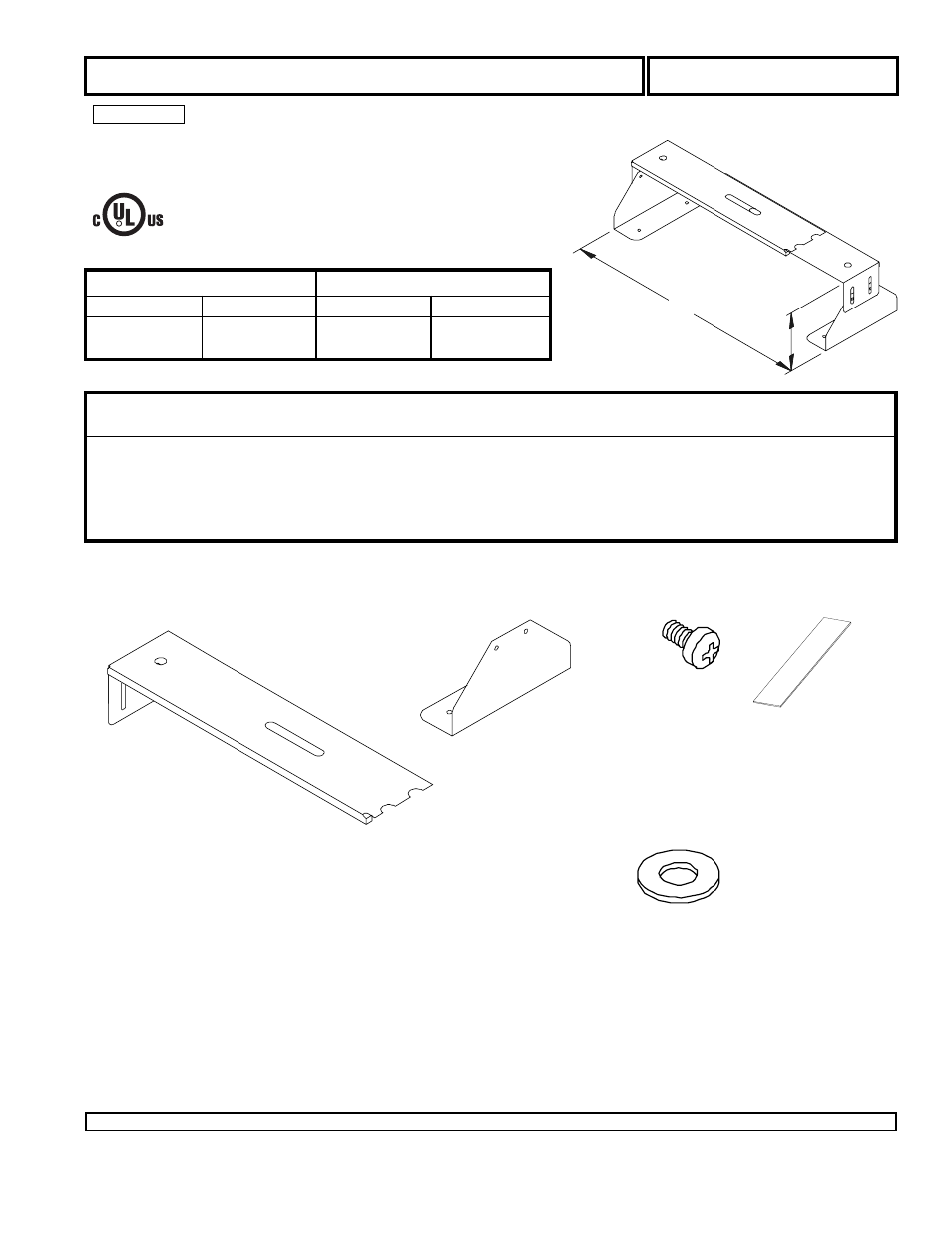

Installation and Assembly - VCR Mount for PM 1327

Models: PM 47, PM 47W, PM 47S

INSIDE DIMENSIONS

VCR DIMENSIONS

WIDTH (W)

HEIGHT (H)

MAXIMUM

MINIMUM

13" - 17.5"

3" - 4"

17.5" x 4"

13" x 3"

(330 mm - 445 mm)

(76 mm - 102 mm) (445 mm x 102 mm) (330 mm x 76 mm)

IMPORTANT! Read entire instruction sheet before beginning installation and assembly.

H

W

Maximum Load Capacity: 35 lb (16 kg)

Parts List

PM 47

PM 47W

PM 47S

Description

Qty.

Part Number

Part Number

Part Number

A horizontal bracket

2

081-1041

081-2041

081-4041

B lower bracket

2

081-1040

081-2040

081-4040

E screw

4

520-9504

520-9406

520-9406

G adhesive foam

2

570-0022

570-0023

570-0023

H washer

1

540-1005

540-2005

540-2005

This product is UL Listed.
In the U.S.A. this product is intended
for use with UL Listed VCRs only.

Check parts list. Be sure all parts listed are included with your product.

G

E

H

Visit the Peerless Web Site at www.peerlessmounts.com

For customer care call 1-800-729-0307 or 708-865-8870.

A

B

R
