6 Software and connectivity

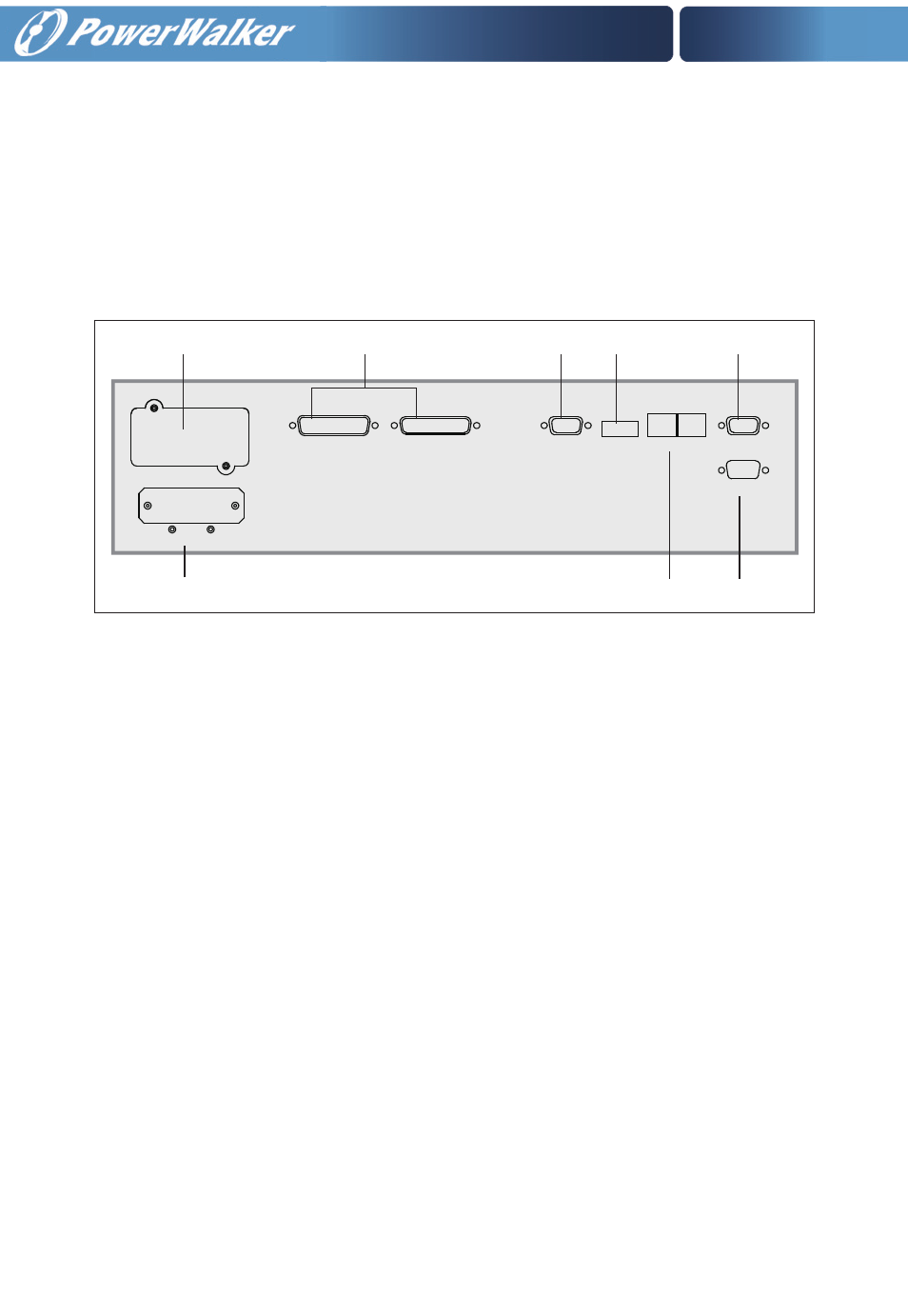

The Series provide Intelligent Slot, Expanded Slot, PARALLEL, AS400, EPO, RS485 and
RS232 as well as SERVICE Supervising Communication Interface exclusively available to
PowerWalker technical personnel.
2
6
8
1
5
PARALLEL
Intelligent slot
Expanded slot
AS400
EPO
SERVICE
RS485
RS232
3
4
7
PARALLEL
1. Intelligent slot: suitable for WebPower card of remote supervising management,enabling
you to realize remote supervising management on UPS through Internet.
2. Expanded slot: Reserved for special applications
3. PARALLEL: communication interface for parallel machine mode.
4. Standard AS400 interface: provides AS400 and users can directly use UPS supervising
function offered by AS400 system to realize power source management (See Appendix for
AS400 port Pin).
5. EPO: Emergency Power Off, providing the possibility of emergency shut down.Normally
closed.
6. Standard RS485 Interface: It can be used to monitor parallel units for completely control
of UPS (See Appendix for RS485 port Pin ).
7. SERVICE Interface: available only to PowerWalker technicians
8. Standard RS232 Interface: applicable to WinPower supervising software of graphic man-
agement (See Figure for RS232 port Pin)
