2.4 Exterior view
①
AC: This light and inverter light will turn "green" when UPS is powered by Rectifier Input;
②
Inverter: This light will turn "green" when UPS load is through the inverter;
③
Battery: This light will turn "yellow" when UPS is powered by batteries;
④
Bypass: This light will turn "green" when UPS load is powered by Bypass Input;
⑤
Fault: If the UPS worked under fault condition,this light would turn on and stay “red” with
continuous warning tone being given off in case of UPS abnormal function;or flash “red” with
intermittent warning tone being given off.
⑥
LCD: Display UPS commands.
⑦
:Confirm/Enter; press this button to select a menu or confirm an operation.
⑧
:PageDown; press this button to switch to next screen display under the same menu.
⑨
:PageUp; press this button to return to next screen display under the same menu.
⑩
Esc: Escape; press this button to return to previous menu or cancel a certain operation.
Remark: Refer to Chapter 12 for detailed information of LED in accordance with UPS
condition.

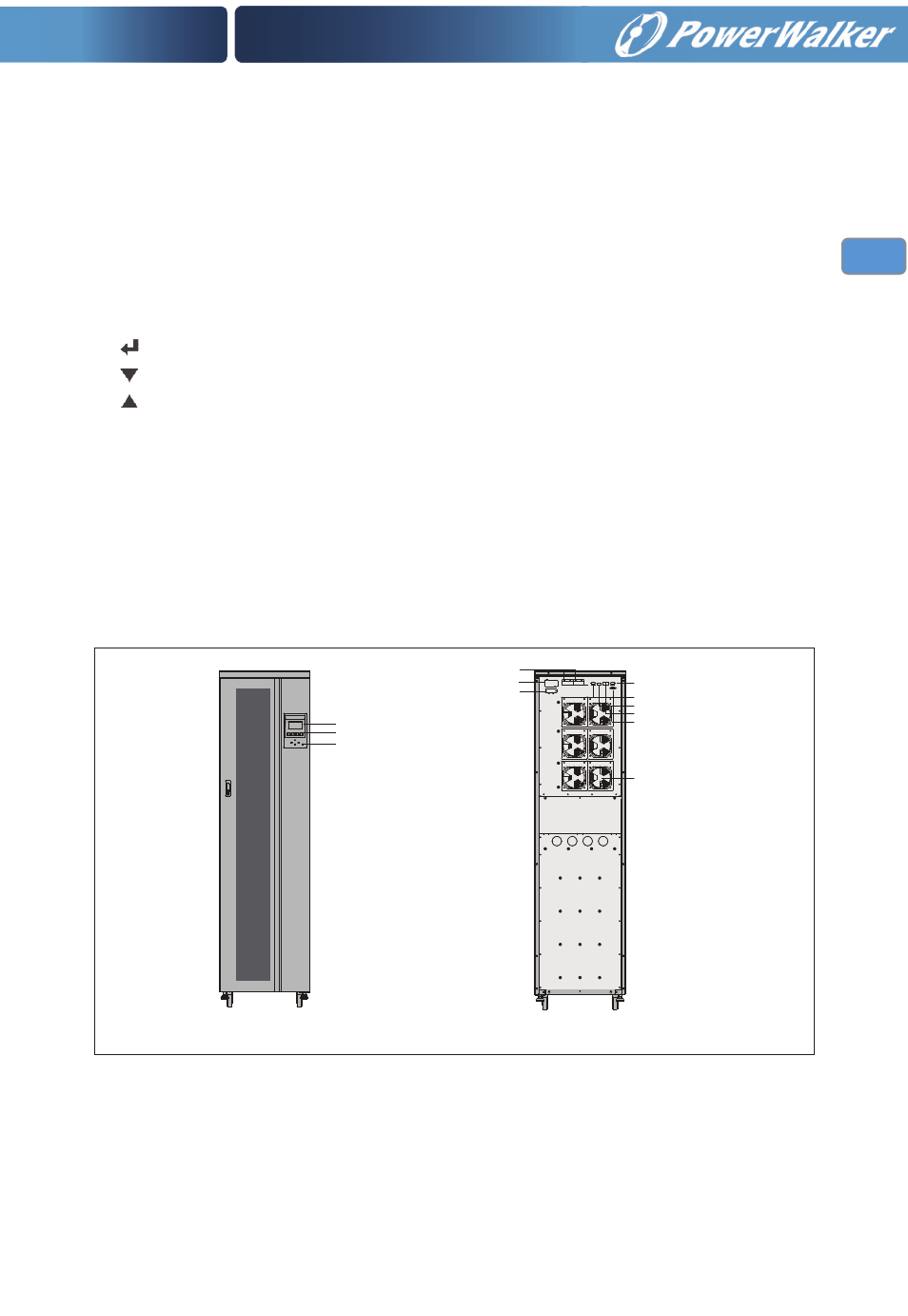

Exterior figure of PowerWalker VFI 30000TP 3/3 BE/BI, 40000TP 3/3 BE/BI UPS
Intelligent slot
Extended slot
PARALLEL
Fan
SERVICE
RS232
RS485
EPO
AS400
LCD panel
Button
LED indicator
light
Front view Rear view
