PowerWalker VFI 30000TP 3_3 BE User Manual
Page 28

23

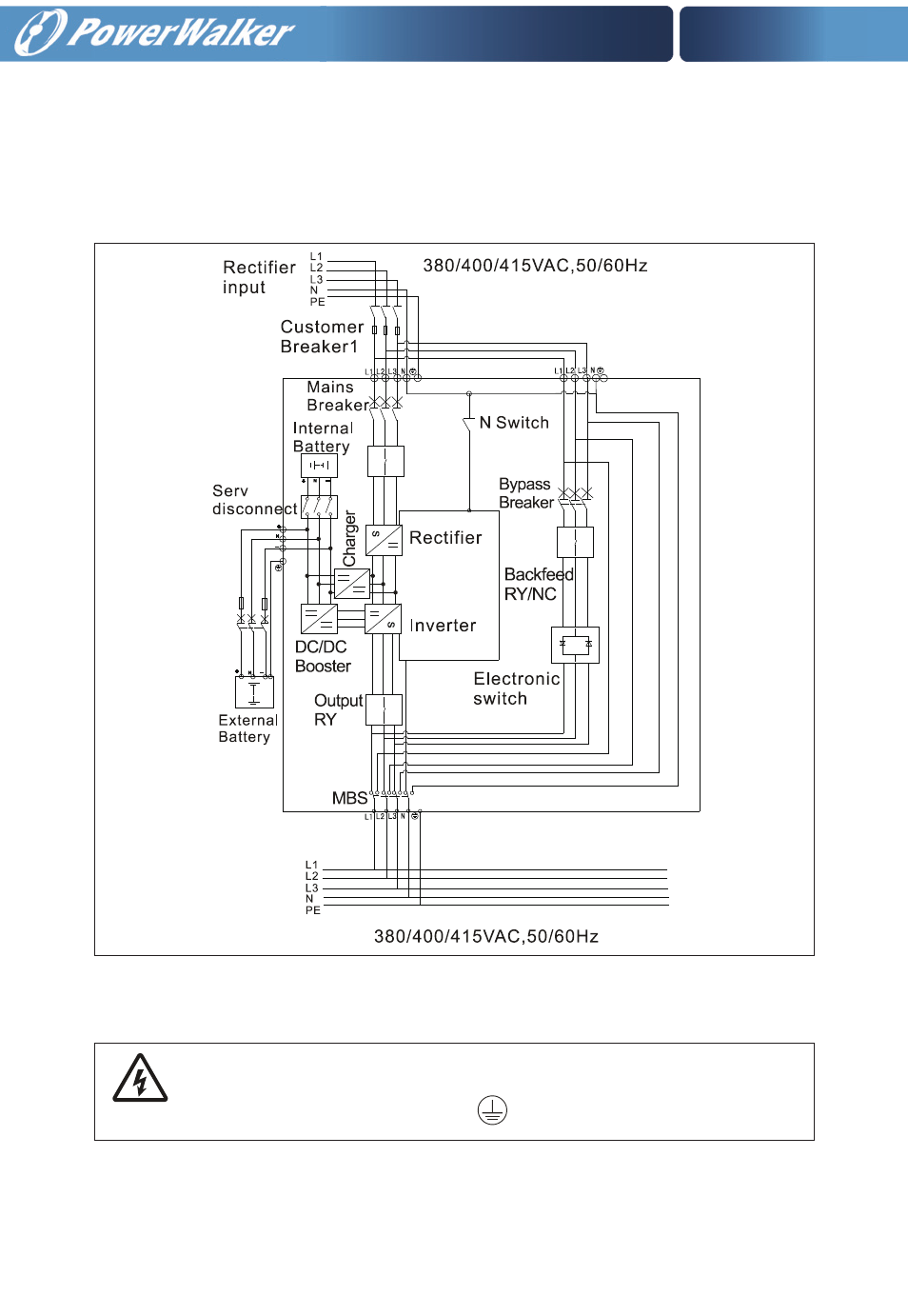

Terminal block diagram
Warning!
High touch current earth connection essential before connecting supply.
2.If UPS rectifier input and bypass input are supplied from one mains only:
Connect the mains supply cables to the UPS rectifier input terminals L1, L2, L3, N and PE .
The following three jumpers must be fixed between the rectifier and bypass input terminals:
L1-L1, L2- L 2, L3- L3.
