Batteries
The unit support 24volt battery bank. Please refer to figure 3 to wiring battery correctly. Before
proceeding, ensure you have appropriate size batteries for this inverter. The unit can use flooded
lead-acid, or sealed GEL/AGM lead-acid batteries so ensure that your batteries are in one of these
categories.
The battery must be wired to match the units DC input voltage specifications. Suggest battery capacity
not smaller than 100AH.

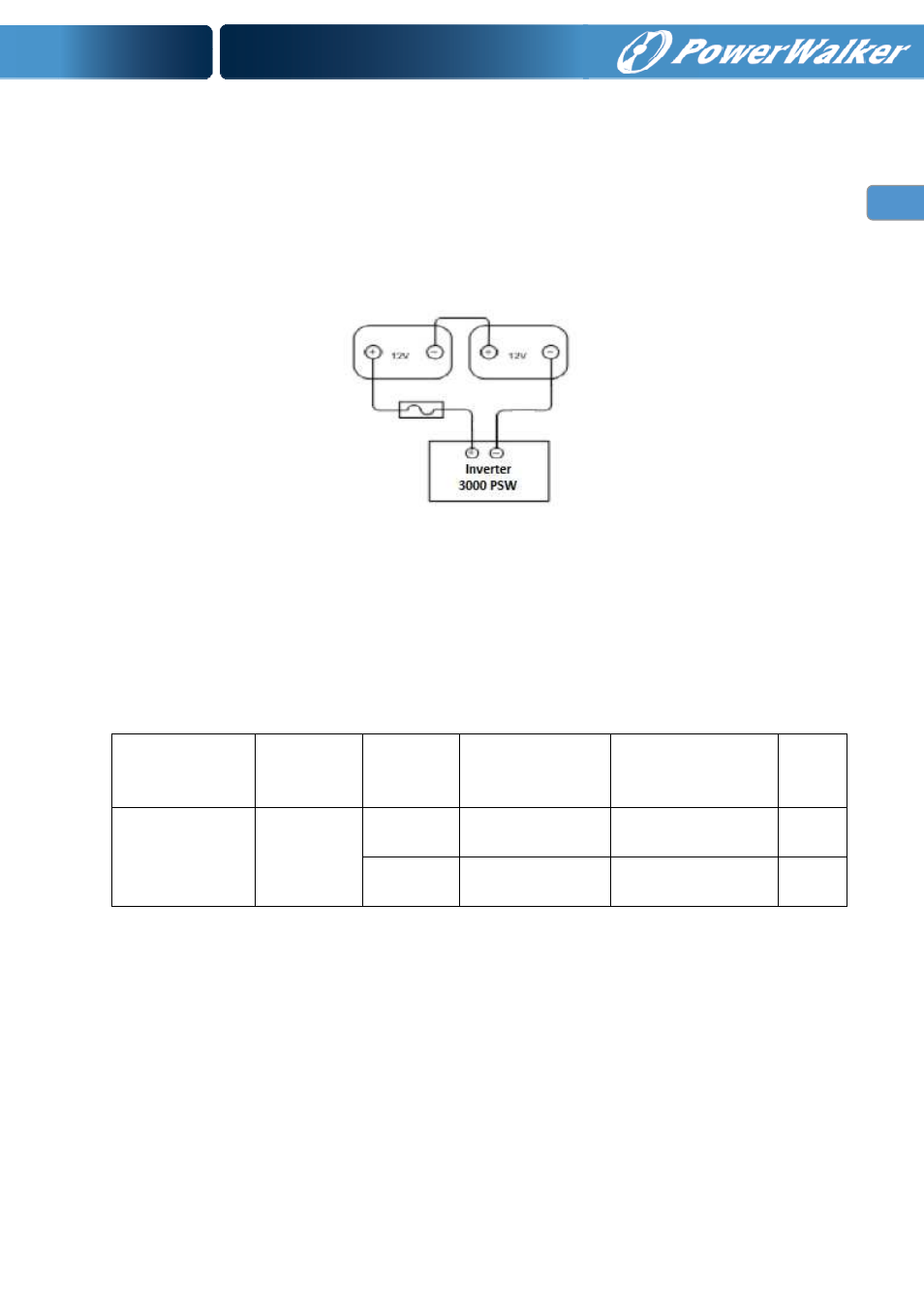

Figure 3 PowerWalker Inverter 3000 PSW batteries string wiring
Battery Cable Size
Below table 1 you can find information for recommended battery cable and terminal.
Table 1 Recommended battery cable and terminal size
Model
Number
Typical
Amperage
BATTARY
CAPACITY
1~3 m one-way CABLE TERMINAL Torque
value
PowerWalker
Inverter 3000PSW 130A
100 AH 4 AWG
or 2*8AWG
KST:RNBS22-6
(RING TYPE)
5~8
Nm
200 AH 2* 6 AWG KST:RNBS38-6
(RING TYPE)
5~8
Nm
DC Disconnect and Over-Current Protection
For safety and to comply with regulations, battery over-current protection and disconnect devices are
required. Fuses and disconnects must be sized to protect the DC cable size used, and must be rated for
DC operation. Do not use devices rated only for AC service – they will not function properly.
Note that some installation requirements may not require a disconnect device, although over-current
protection is still required.
