Indicator & Alarm

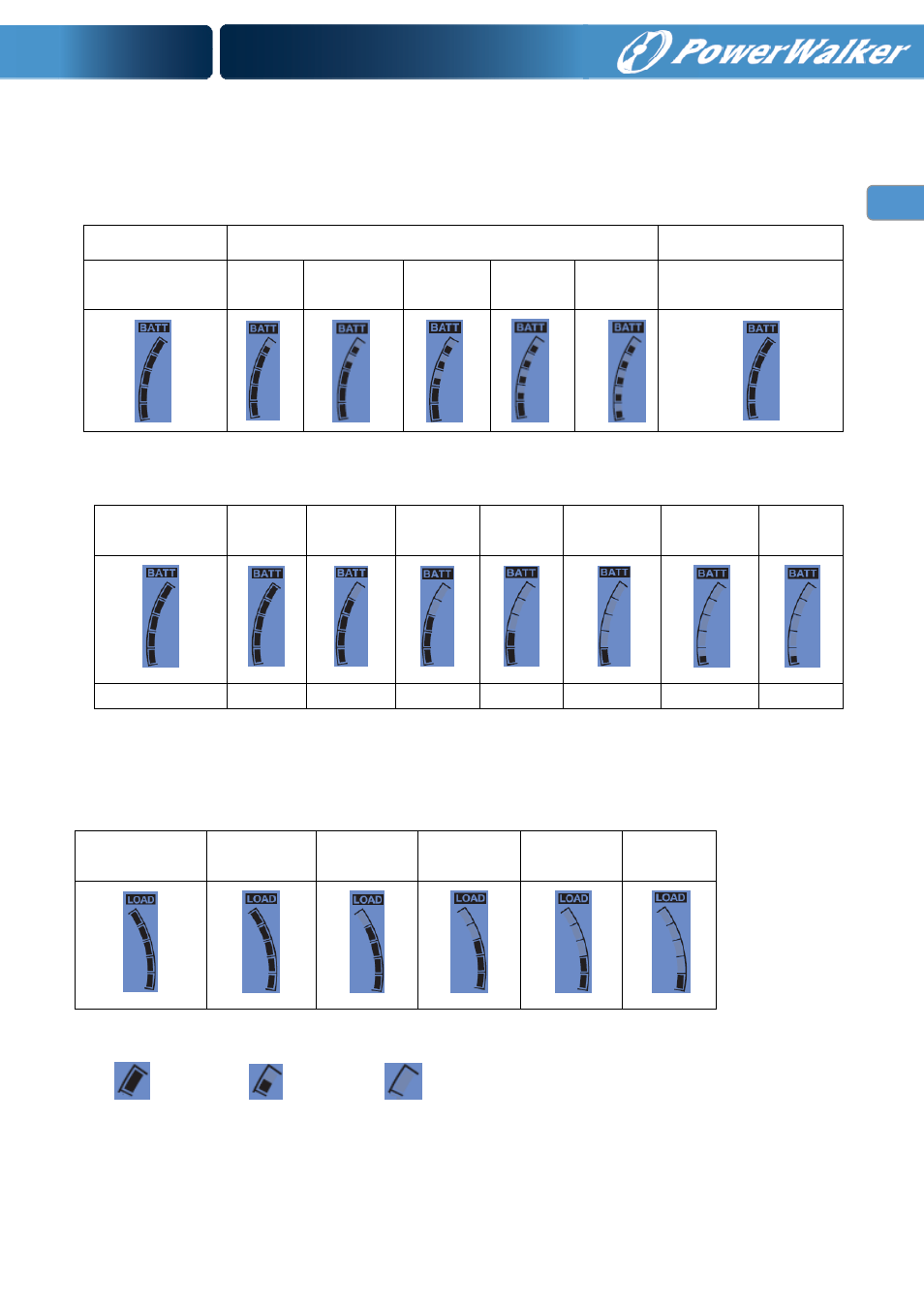

Charger mode battery indicator

Battery capacity segment will lighting to comply with battery voltage

Status

CC/CV

Floating

Battery

voltage(+/-0.6V)

>26V

25V~26V

24V~25V

21V~24V

<21V

Any battery voltage

Inverter mode battery indicator:

Battery

voltage(+/-0.6V)

>26V

25V~26V

24V~25V

23V~24V

21.6V~23V

20V~21.6V

<20V

ALARM

--

--

--

--

--

1beep/2s

continue

Load indicator:

The load indicate the load percentage comply with load VA or W (show the bigger value), the overload label

will flash when overload.

Load (±4%)

>85%

65%~85%

45%~65%

25%~45%

0%~25%

Note:

Solid on;

On to off;

Off.
