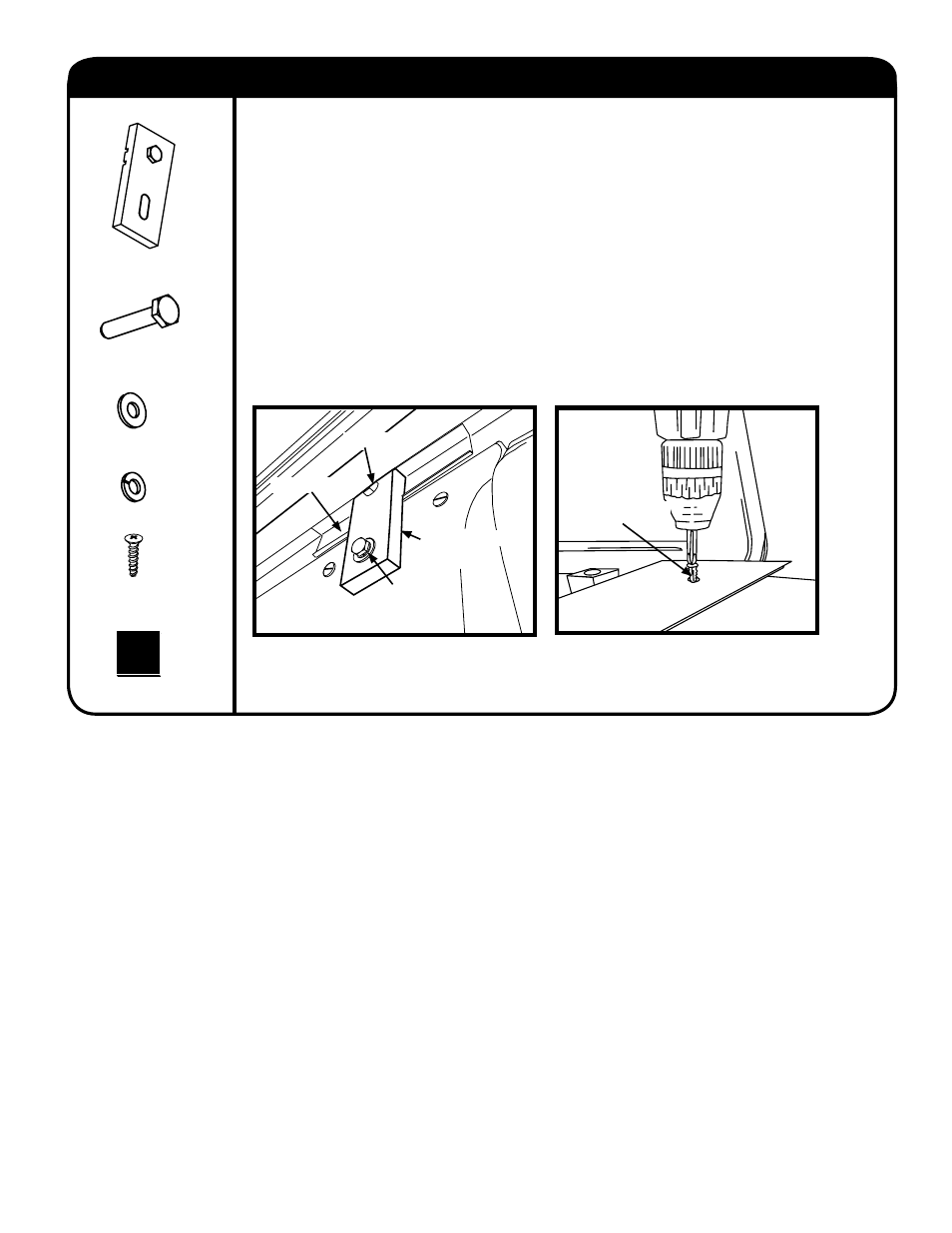

STEP 6: INSTALLING CLAMPS
HARDWARE USED:
Install the rear clamps as shown (Figure 6A) using the OE holes at the rear of the truck
bed.
Locate the lower groove of rear clamp block onto the lip of the rail bracket.
Tighten against the truck bed rail.
The ¼-20 bolt at the top of the clamp can be used to level the rail by turning the bolt out to
apply pressure against the rail.
Tighten bolts securely. (Adjust pressure against tailgate by moving rails forward or
backward as needed prior to fi nal tightening of clamps.)
With rear clamps in place, make sure the canister is centered from side-to-side.
Using the two black screws provided, screw through the rails into the front rail block
(Figures 2A & 6B).
If needed, add shims (included) on front rail block to level the rails.
FIG. 6A
5 INSTALLATION INSTRUCTIONS
Rail Bracket
Leveling Bolt
Rear Clamp Block
Rear Clamp
Washer, Lock
Washer & Bolt
Front Rail Block
Screw
FIG. 6B
1/4-20 x 3/4”
STOP BOLT x 2
FRONT RAIL BLOCK
SCREW x 2
1/4” FLAT WASHER x 2
1/4” LOCK WASHER x 2
REAR CLAMP
BLOCK x 2
PLASTIC SHIMS x 4
