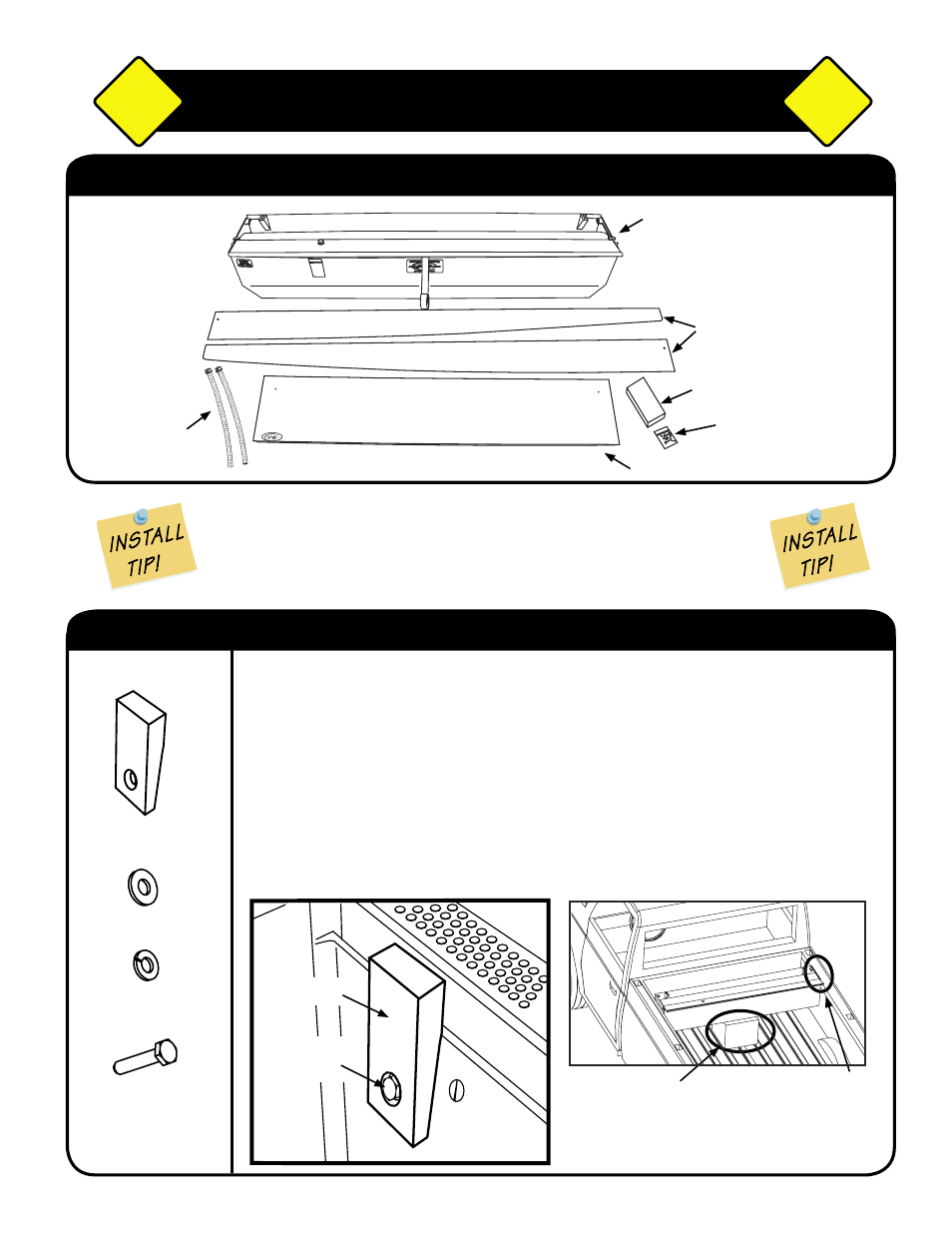

STEP 2: POSITIONING CANISTER
HARDWARE USED:
3 INSTALLATION INSTRUCTIONS
Remove the top cover from the canister box and set it aside for later installation. Perform
a quick inventory to insure all parts are there. Be sure to check inside the small cardboard
box for parts.
Use the washers, lock washers and bolts provided and attach a front rail block to each side
of the truck bed in the existing OE threaded holes approximately 4 inches from front of the
truck bed. Place the Front Rail Block angled side down against the truck bed. Place the Front
Rail Blocks so that the top is level with the bed rail, then tighten securely (Figure 2A)
You will need one or two support pieces (We suggest using the top of the box the Jackrabbit
was shipped in.) to set in the truck bed approximately one foot from the cab that will go under
the canister, raising the top of the canister above the bed rails by 2-3 inches. Remove the
Canister from the box and set it on the support(s) in the truck bed.
PACKAGING CONTENTS:
DO NOT USE A KNIFE TO OPEN THE RAIL BOX. OPEN THE RAIL BOX ALONG
THE LENGTH OF THE BOX AND LIFT RAILS OUT TO AVOID SCRATCHING THE
SURFACE OF THE RAILS ON THE PACKAGE STAPLES.
CAUTION! CAUTION!
Canister
Rails (Left & Right)
Shipped in Separate
Rail Box
Drain
Tubes
Clamp Pack
Hardware Pack
Top Cover
FRONT RAIL BLOCK x 2
1/4” FLAT WASHER x 2
1/4” LOCK WASHER x 2
FRONT RAIL BLOCK
BOLT x 2
Front Rail
Block
Washer,
Lock Washer
& Bolt
Top of Canister should clear
Truck Bed Rails by 2-3” Support
Piece
IF YOU HAVE ANOTHER PERSON TO HELP STEADY THE CANISTER,
IT MAY BE EASIER TO INSTALL THE RAILS (DESCRIBED IN STEP 3)
BEFORE POSITIONING THE CANISTER IN THE TRUCK BED.
Fig. 2A
