BEDLOCKER ® EXPL SPORT TRAC 2
Wire cutters
Rails Come in a
separate Box.
Read the instructions carefully before you start. These instructions are written for one-person installation. We
have noted where briefl y having an extra person’s assistance can make installation easier. If you have questions
regarding the installation please call our Technical Support Line at (800) 338-3697.

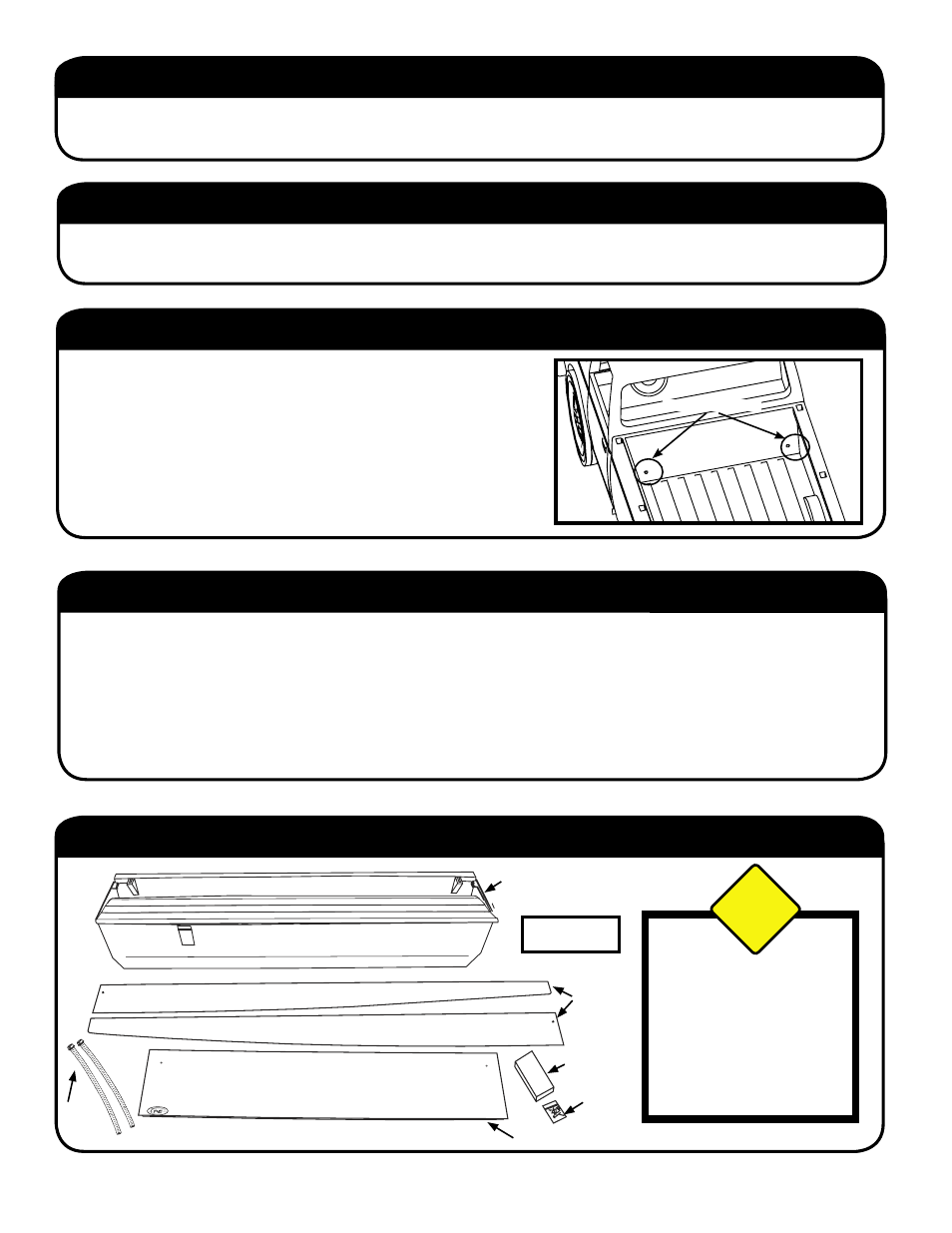

DRAIN HOLE LOCATIONS:
The Bedlocker is designed to carry rainwater from the cover into the
canister and then out through the drains. Most truck models have
standard OE drain holes or plastic/rubber access ports in the front
of the truck bed. Check to make sure your truck has the OE drain
holes so that drilling into the sheet metal is not required. If drilling is
necessary, be sure to check the underside of the truck bed for the
best location. The holes should be located near the side and as far
forward as possible. Use a drill bit suitable for sheet metal (such
as a taper drill or step drill). Drill drain tube clearance holes at 3/4”
(19mm). This will need to be done before installing the cover.
FIG. 1
Drain Tube Holes
Note: There should be no drilling into the truck body needed on most standard or full-size trucks .
7/16” wrench or socket
3/8” wrench or socket #2 Phillips screwdriver
Tape measure
TOOLS REQUIRED FOR ASSEMBLY:
BEFORE YOU START:
PACKAGING CONTENTS:
DO NOT USE A KNIFE TO
OPEN THE RAIL BOX.
OPEN THE RAIL BOX ALONG
THE LENGTH OF THE BOX
AND LIFT RAILS OUT TO
AVOID SCRATCHING THE
SURFACE OF THE RAILS ON
THE PACKAGE STAPLES.
CAUTION!
Canister
Rails
(Left &
Right)
Drain
Tubes
Clamp
Pack
Hardware
Pack
Top Cover
The BedLocker also offers an optional wire harness (part # BL1120) to manually operate the tonneau cover from
inside the cab of your truck.
This harness is designed to plug into the custom-built electronics control box mounted inside the canister.
Thread the plug through the side of the canister and connect it to the grey/violet plug. Make sure to secure the
loose wires inside the canister away from the gear and blanket.
Then run the wire to the cab and attach under the dash in a suitable location.
OPTIONAL WIRING HARNESS FOR DASHBOARD SWITCH:
