Remove the protective paper on the underside of the Rail fl anges. This for packaging
purposes only.
Identify the left and right side rails. The plastic rail endcap should be towards the tailgate
while the rail fl ange should be towards the outside of the truck bed.
Identify the appropriate Clamp Grip for your application based on whether you have the
Deck Rail Track System or not (Fig 4B and 4C). Slide the Rail Grip components onto rail.
Place the forward clamp 8-10 inches from the canister and rear clamp about 8-10 inches
from the tailgate.
Install the rails by fi rst guiding Handle Assembly into the open channel of the rail and then
sliding the rail against the blanket guide on the canister. Attach the rail to the canister using
the rail bolt, lock washer and fl at washer throught the blanket guide and into the bottom of the
rail.
INSTALLATION INSTRUCTIONS

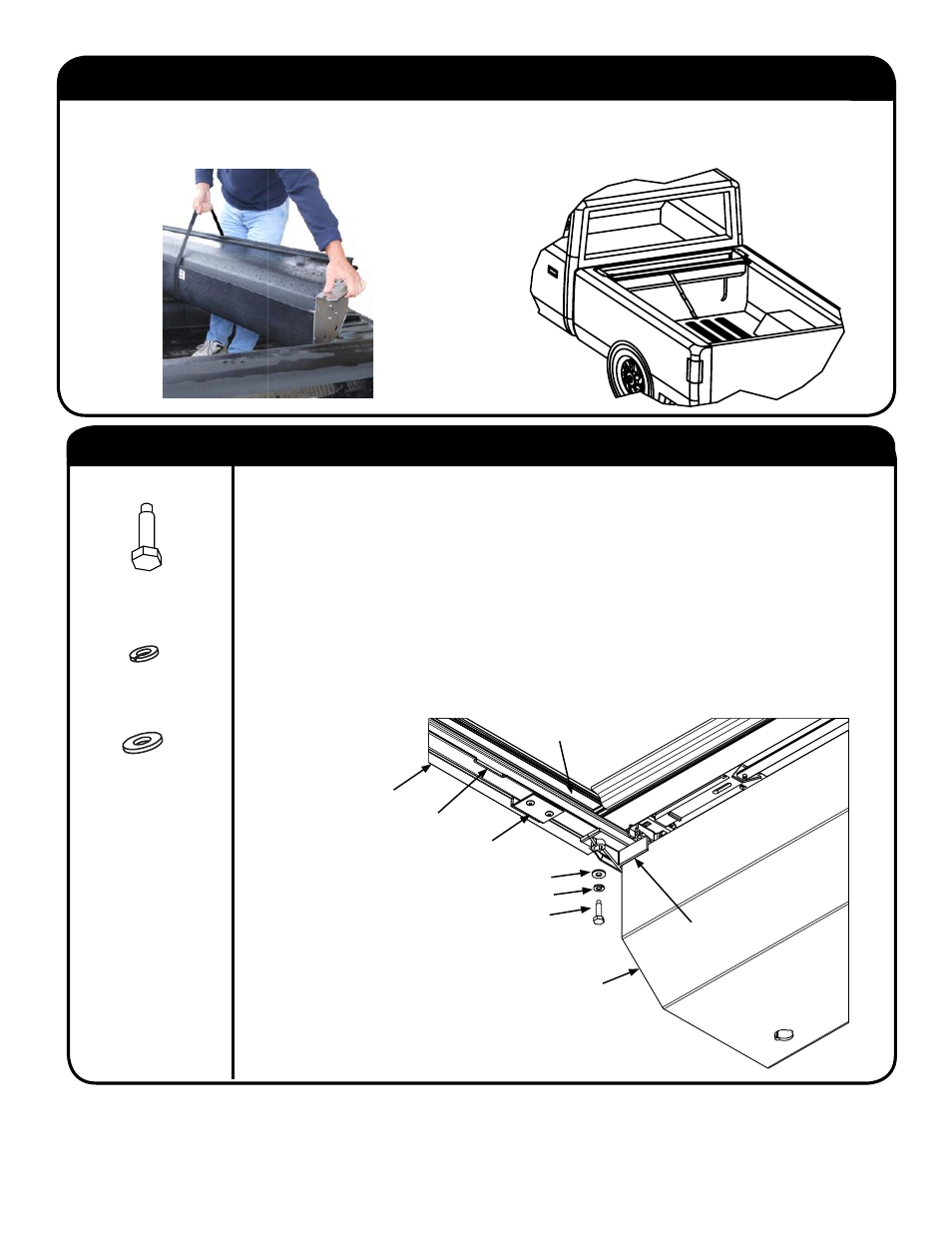

Use the Pull Strap and one canister fl ange to
lift and steady the unit. Wrap the Pull Strap
around the center of the canister a couple
3
STEP 2: POSITIONING CANISTER
STEP 4: REPOSITIONING CANISTER
STEP 3: INSTALLING RAILS
FIG. 3A
HARDWARE USED:
1/4-20 x 1”
RAIL BOLT x 2
1/4” FLAT WASHER x 2
1/4” LOCK WASHER x 2
Blanket
Guide
Canister
Flat Washer
Lock Washer
Rail Bolt
Guide Handle Assembly
in here
Rail Bracket
and shim
Clamp Relief
Left Rail
Place the Canister in truck bed just behind the cab and center it
from side to side. Ensuring that the canister is centered in the bed
will help assemble the rails to canister in the next step.
times and
double it
up in your
hand.
