www.advantech.com/products

Online Download

Features

EKI-1221

EKI-1222

EKI-1224

ƒ Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

ƒ Integration of Modbus TCP and Modbus RTU/ASCII networks

ƒ Supports up to 921.6 kbps, and any baud rate setting

ƒ Supports up to 16 connections and 32 requests simultaneously

ƒ Easy-managing Advantech Serial Device Server Configuration Utility for

Windows 2000/XP/Vista/7

ƒ Auto searching slave ID over configuration utility

ƒ Software selectable RS-232/422/485 communication

ƒ Mounts on DIN-rail and Wall mount

ƒ Built-in 15 KV ESD protection for all serial signals

ƒ Automatic RS-485 data flow control

Specifications

Ethernet Communications

ƒ

Compatibility

IEEE 802.3, IEEE 802.3u

ƒ

Speed

10/100 Mbps

ƒ

No. of Ports

2

ƒ

Port Connector

8-pin RJ45

ƒ

Protection

Built-in 1.5 KV magnetic isolation

Serial Communications

ƒ

Port Type

RS-232/422/485, software selectable

ƒ

No. of Ports

EKI-1221: 1
EKI-1222: 2
EKI-1224: 4

ƒ

Port Connector

DB9 male

ƒ

Data Bits

7, 8

ƒ

Stop Bits

1, 2

ƒ

Parity

None, Odd, Even, Space, Mark

ƒ

Flow Control

XON/XOFF, RTS/CTS, DTR/DSR

ƒ

Baud Rate

50 bps ~ 921.6 kbps, any baud rate setting

ƒ

Serial Signals

RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND

ƒ

Protection

15 KV ESD for all signals

Software

ƒ

OS Support

32-bit/64-bit Windows 2000/XP/Vista/7 and Windows
Server 2003/2008

ƒ

Utility Software

Advantech Serial Device Server Configuration Utility

ƒ

Operation Modes

Modbus RTU Master/Slave mode
Modbus ASCII Master/Slave mode

ƒ

Configuration

Windows Utility, Web Browser

ƒ

Protocols

Modbus RTU, Modbus TCP, Modbus ASCII

General

ƒ

LED Indicators

System: Power, System Status
LAN: Speed, Link/Active
Serial: Tx, Rx

ƒ

Reboot Trigger

Built-in WDT (watchdog timer)

Mechanics

ƒ

Dimensions (W x H x D) EKI-1221/1222: 37 x 140 x 95 mm (1.46" x 5.51" x 3.74")

EKI-1224: 55 x 140 x 95 mm (2.17" x 5.51" x 3.74")

ƒ

Enclosure

Metal with solid mounting hardware

ƒ

Mounting

DIN-rail, Wall

ƒ

Weight

EKI-1221: 0.592 Kg
EKI-1222: 0.6 Kg
EKI-1224: 0.668 Kg

Power Requirements

ƒ

Power Input

12 ~ 48 V

DC

, redundant dual inputs

ƒ

Power Connector

Terminal block

ƒ

Power Consumption

EKI-1221: 2 W
EKI-1222: 2.5 W
EKI-1224: 4 W

Environment

ƒ

Operating Temperature -10 ~ 60°C (14 ~ 140°F)

ƒ

Storage Temperature -20 ~ 80°C (-4 ~ 176°F)

ƒ

Operating Humidity

5 ~ 95% RH

Regulatory Approvals

ƒ

EMC

CE, FCC Part 15 Subpart B (Class A)

ƒ

Safety

UL/cUL 60950-1

ƒ

Hazardous Location

Class I, Division 2

Ordering Information

ƒ

EKI-1221

1-port Modbus Gateway

ƒ

EKI-1222

2-port Modbus Gateway

ƒ

EKI-1224

4-port Modbus Gateway

ƒ

OPT1-DB9

D-Sub9 to Terminal Converter

Introduction

The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based
devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide a redundant networking mechanism to guarantee Ethernet networking
reliability. They provide a simple and cost-effective way to bring the advantage of remote management and data accessibility to thousand of devices that can not connect to a network.
The EKI-1221/1222/1224 provide a feature that can allow users to select master or slave operation mode for each serial port. They not only allow an Ethernet master to control serial
slaves, but also allow serial masters to control Ethernet slaves.

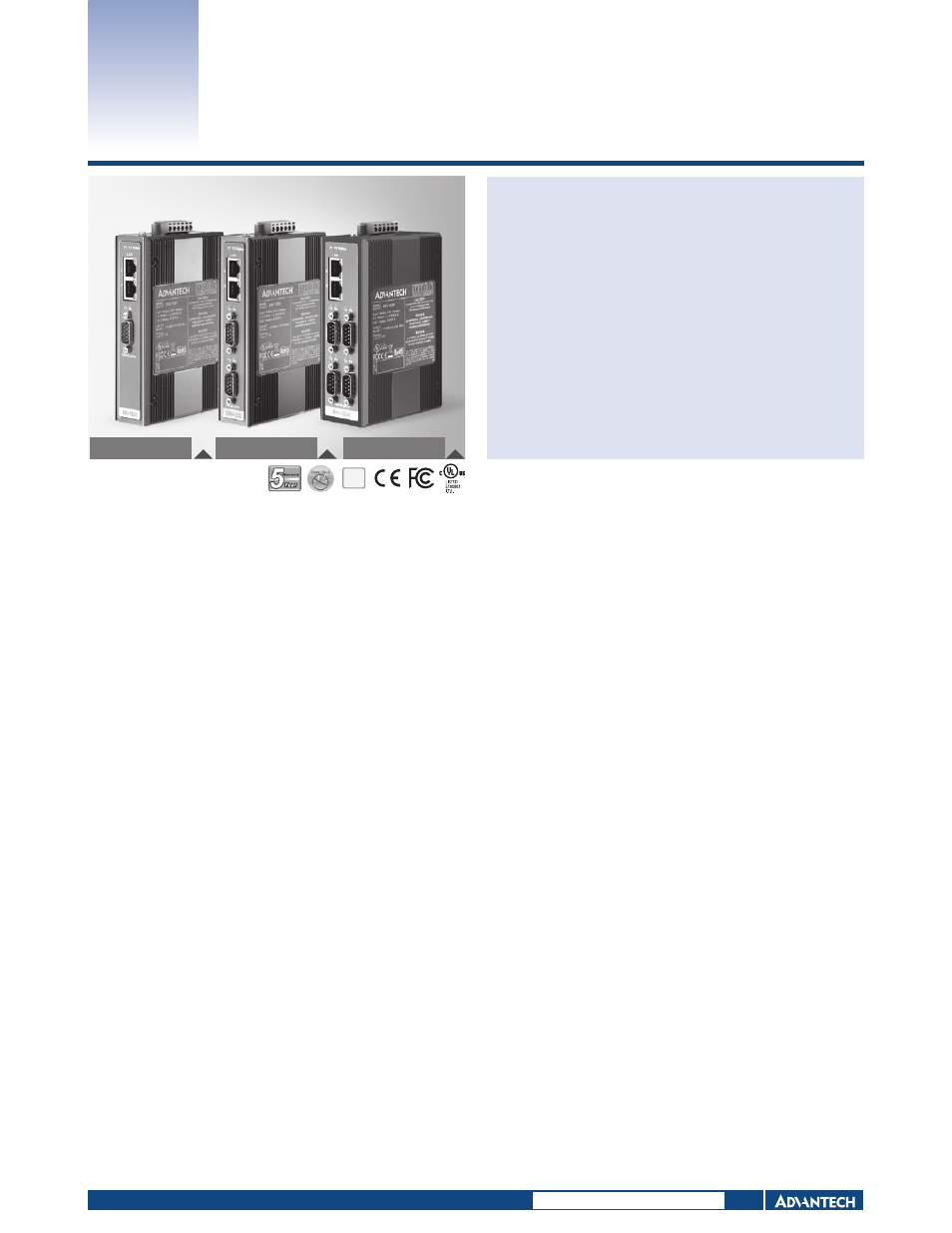

1-port Modbus Gateway

2-port Modbus Gateway

4-port Modbus Gateway

EKI-1221

EKI-1222

RoHS

COMPLIANT

2002/95/EC

EKI-1224
