PES1A/PESV1A-0712 - 1/2
www.bb-elec.com [email protected] [email protected]
International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
P
R
O
D
U
C
T
INF
O
R
M
A
TIO
N
B
&
B
ELE
C
T
R
ON
ICS

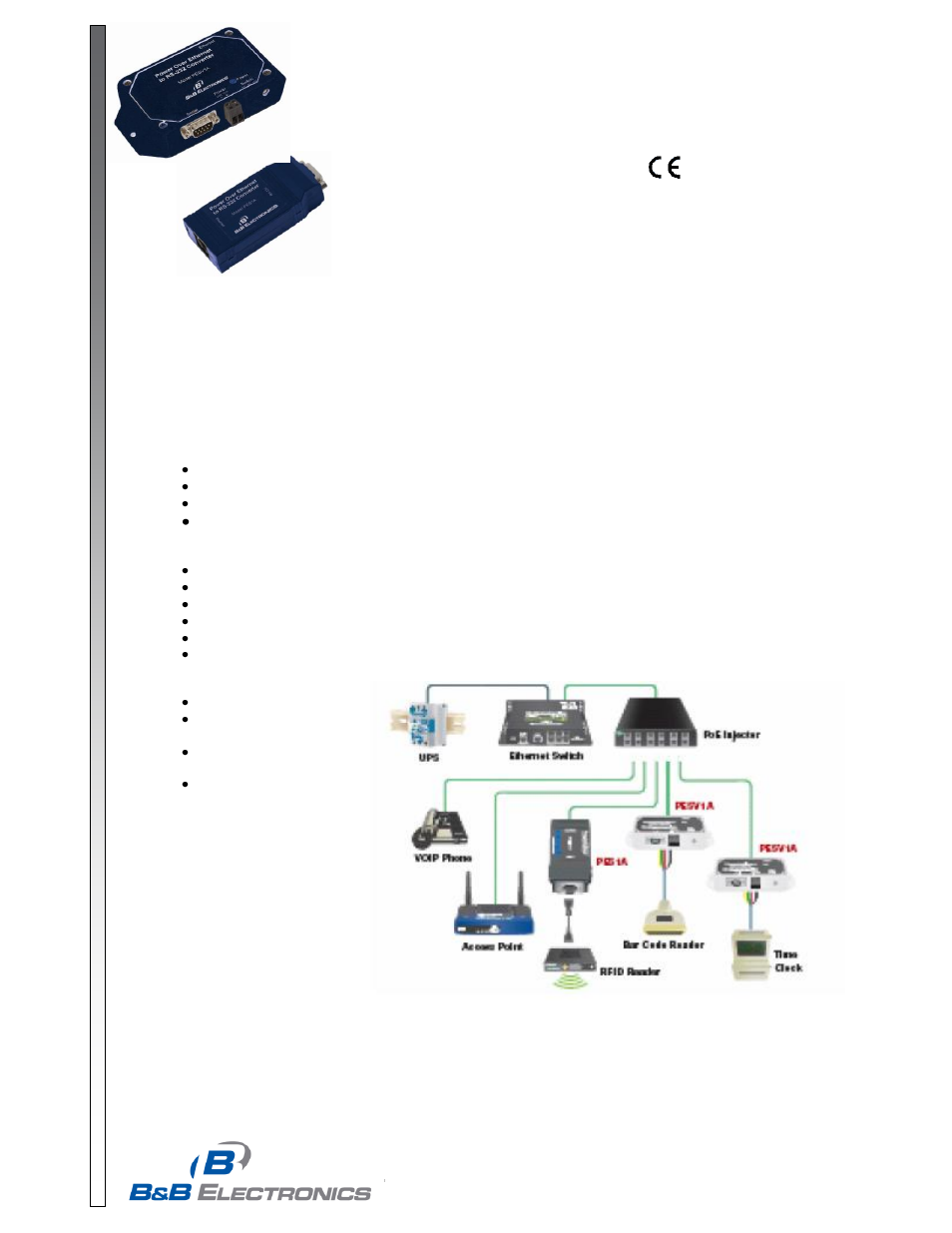

Models: PES1A, PESV1A
Serial Server with Power over Ethernet
(PoE)
Description
Power-over-Ethernet technology is a new Ethernet extension intended to eliminate the
cost and clutter of power supplies. Using PoE, power is injected by the Ethernet switch
or Ethernet midspan device onto the Ethernet cable itself. With PoE, specially designed
Ethernet devices can draw their power through the Ethernet cable eliminating the need for separate wall-transformers
and power cords. Both PES1A and PESV1A offers RS-232 serial server with PoE. Additionally PESV1A adds 3
selectable power outputs for your end device.
Selectable power: While these units comply fully with the IEEE 802.3af standard governing PoE transmissions, there is
no standard for the power to serial devices such as bar code scanners, slip printers or other devices. This creates a
challenge for the system integrator, VAR, OEM and customer. To counter this, variable voltage levels are built into the
serial servers, selectable by switch or the built-in web server (PESV1A only). They can meet virtually any DC voltage
requirement, with power up to 4 W (125mA max in rush).
Features
Transparent 10/100Mbps operation
Auto-detects the power requirement
Compatible with IEEE 802.3af
Current limited ports for short circuit protection
Benefits
RJ45 10/100BaseT auto-sensing interfaces
Supports the IEEE 802.3af standard for Power-over-Ethernet
Simple plug & play operation
Single RS-232, DB9 serial interface
Adjustable output power: 5, 9 or 12 VDC hardware selectable (PESV1A only @ 4 W max)
Compact size: PES1A: 0.9 x 1.6 x 3.8 in, PESV1A: 1.0 x 2.8 x 5.1 in
Applications
Retail/POS
Building
automation/security
Convenience
store/gas station
Telecom VoIP
