Features
EKI-6331AN
Specifications
Standard Support
ƒ Wireless IEEE802.11 a/n
ƒ Ethernet IEEE802.3u MDI / MDIX 10/100 Fast Ethernet
ƒ LAN IEEE802.11a wireless LAN interface
IEEE 802.11n wireless LAN standard
Passive 15V PoE
ƒ Certifications US FCC Part 15
Europe ETSI 300 328, ETSI 301 489-1&17,
EN 60950 compliant and CE Mark
EN 301 893 (5470-5725MHz DFS)
EN 302 502 (5725-5850 MHz DFS)
ƒ Data Rates 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps,
auto-fallback
802.11n: 6M, 6.5M, 13M, 13.5M, 19.5M, 26M, 27M,
39M, 40.5M, 53M, 54M, 58.5M, 65M, 78M, 81M,
104M, 108M, 117M, 121.5M, 130M, 135M, 150Mbps,
up to 300 Mbps
Physical Specifications
ƒ Power 15VDC @ 0.8A; AC Adapter 100V~240V
ƒ Dimensions (L x W x H) 111 x 256 x 48 mm
ƒ Weight 500g
Environment
ƒ Operating Temp. -20 ~ 70° C (-4 ~ 158° F)
ƒ Storage Temperature -30 ~ 80° C (-22 ~ 176° F)
ƒ Humidity 5% ~ 95% non-condensing
Interface Operation Modes
ƒ Access Point (AP) / Customer Premise Equipment (CPE)
Antenna
ƒ Antenna Configuration 2 x 2 ( 2T2R)
ƒ Default embedded 14~16 dBi (Dual-polarity)
ƒ Reverse SMA Connectors (configured by software)
Other Features
ƒ Management Telnet, FTP, SNMP, Web UI
ƒ Security Open System , Shared Key, 802.1X only, WPA,
WPA2, WPA-PSK(TKIP)
ƒ Wireless Radio on/off, WMM/Regatta Mode, Output
Power Control, Fragmentation Length, Beacon
Interval, RTS/CTS threshold, DTIM Interval
Modulation Techniques
ƒ 802.11n OFDM(BPSK, QPSK, 16-QAM, 64-QAM)
ƒ 802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Channel Support
ƒ FCC 5725-5850 MHz
ƒ CE 5470-5725 MHz, 5725-5850 MHz
Wireless Transmission Rates
ƒ IEEE 802.11a: 6-24Mbps: 24dBm
54Mbps: 21dBm
ƒ IEEE 802.11n: HT20 - MCS0: 23dBm
MCS15: 20dBm
HT40 - MCS0: 23dBm
MCS15: 19dBm
ƒ Note: bandedge exclusive (Controllable for different country regulations)
Receiver Sensitivity
ƒ IEEE 802.11a 54Mbps: -76dBm
ƒ IEEE 802.11n HT20 - MCS15: -70dBm
HT40 - MCS15: -66dBm
Ordering Information
ƒ EKI-6331AN IEEE 802.11 a/n Wireless AP/Client Bridge
ƒ EKI-6331AN-EU IEEE 802.11 a/n Wireless AP/Client Bridge (EU)
Introduction

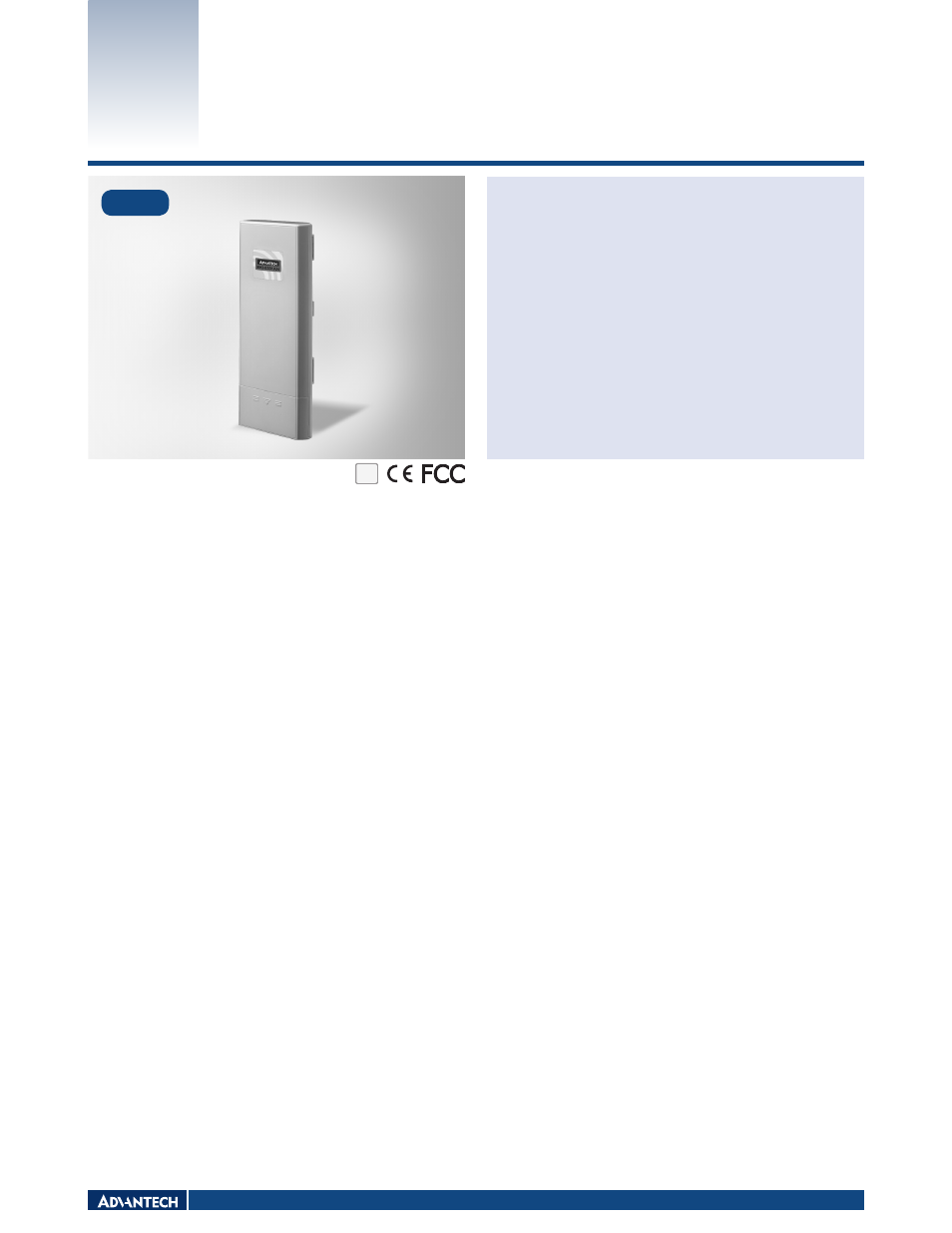

EKI-6331AN is a feature rich wireless AP/ CPE which provides a reliable 5GHz wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment
of this AP/ CPE even where the DC power supply is hard to fulfill. As an 802.11n compliant device, EKI-6331AN provides 3 times higher data rates than legacy 802.11a devices.
With 2X2 MIMO technology, EKI-6331AN provides both robust wireless connectivity as well as high throughput rate in wireless transmission. With the support of WMM and IGMP
snooping protocols, EKI-6331AN effectively improves the reliability of wireless connectivity, especially in applications that need high reliability and high throughput data transmission.
To secure wireless connections, EKI-6331AN implements the latest encryption technologies including WPA2/WPA/802.1x for powerful security authentication.
ƒ Compliant with IEEE802.11a/n
ƒ IP55 waterproof certification
ƒ MIMO 2 x 2 11n
ƒ Embedded 16dBi dual-polarity directional antenna with external R-SMA
connector for optional antenna
ƒ High output power 24 dBm
ƒ Passive 15V PoE
ƒ Supports distances up to 10 Km
ƒ WEP/WPA/WPA2/ IEEE 802.1 x authentication support
ƒ IGMP snooping protocol support
IEEE 802.11 a/n Wireless
Access Point/Client Bridge
NEW
RoHS
COMPLIANT
2002/95/EC
