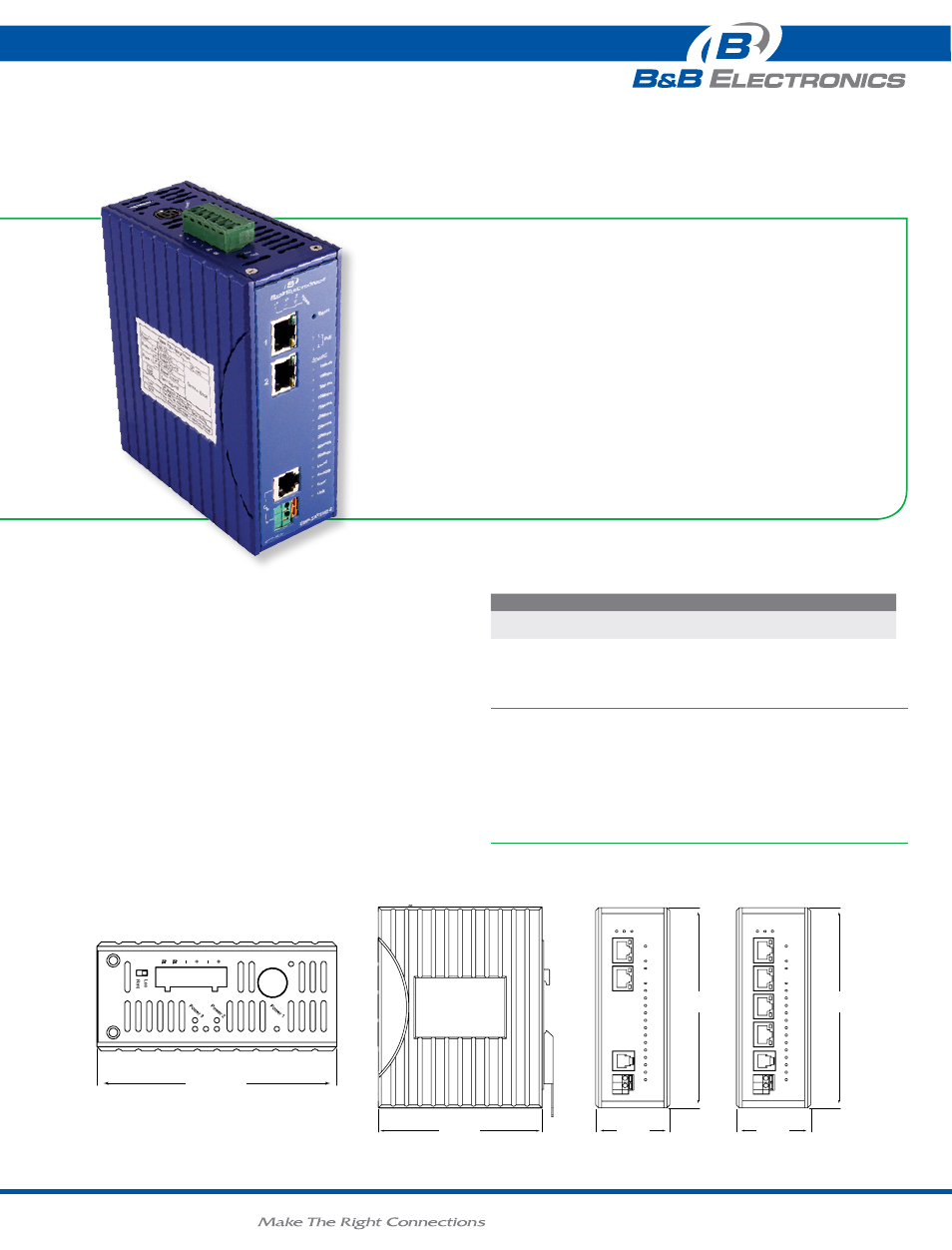

Eirp-extend-2 and eirp-extend-4

background image

www

.

bb

-

elec

.

com

|

orderIng InFormAtIon

Model nuMBer descriPtion

EIRP-EXTEND-2

2-port 10/100BASE-TX IEEE802.3at PoE/PSE Ethernet

Extender

EIRP-EXTEND-4

4-port 10/100BASE-TX with 2-port IEEE802.3at PoE/PSE

Ethernet Extender

Industrial 2 & 4 port 10/100Basetx

Poe ethernet extender

EIRP-EXTEND-2 and EIRP-EXTEND-4

Industrial 2 & 4 port 10/100Basetx

Poe ethernet extender

EIRP-EXTEND-2 and EIRP-EXTEND-4

Extending Ethernet to reach IP cameras, IP phones, and Ethernet
connected control devices is simple and reliable with B&B Electronics’
Ethernet Extenders. The EIRP series extenders offer built-in PoE+
technology which allows the end device, such as an IP camera, to be
powered directly from the extended Ethernet port. Used with a second
extender the configuration is easy. Configure one unit as the local device,
and the other one as the remote device. External power supplies are
required (not included).

• Extend Ethernet up to 6232 ft. (1.9 km) over existing copper wires
• IEEE802.3at 30W PoE/PSE power for last mile applications
• Complies with UL508 and NEMA TS1/ TS2 environmental

requirements for traffic control equipment

• Complies with IEC61000-6-2 EMC generic standard immunity for
heavy industrial environment
• Redundant 24 or 48 VDC power inputs
• Wide operating temperature
• Ethernet port: PoE Plus (25W) RJ-45 10/100Mbps Full/Half-duplex,
Auto-negotiate/Auto-MDI/MDX
• Ethernet extender port: 1 RJ-11 50Mbps full duplex VDSL
• Port compatible with EIS-EXTEND, EIR-EXTEND-x, EIRM-EXTEND-x

Product FeAtures

AccessorIes

PS12VDC3P - Hardened AC Power Supply, 12VDC, 36W, 3A, 90-264VAC input, DC jack
MDR-20-24 - DIN rail mount power supply 24VDC, 1.0 A output power
MDR-40-48 - DIN rail mount power supply 48VDC, 0.83 A output power
C5UMB3FBG - 3 ft. (1 M) - Beige - Category 5e UTP Patch Cord

mechAnIcAl dIAgrAm

11.0 cm

4.33 in

EIRP-EXTEND-2

EIRP-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

5.00 cm

1.97 in

13.5 cm

5.31 in

EIRP-EXTEND

EIR-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

EIRP-EXTEND-2

EIRP-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

5.00 cm

1.97 in

13.5 cm

5.31 in

EIRP-EXTEND

EIR-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

EIRP-EXTEND-2

EIRP-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

5.00 cm

1.97 in

13.5 cm

5.31 in

EIRP-EXTEND

EIR-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

EIRP-EXTEND-2

EIRP-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

11.0 cm

4.33 in

5.00 cm

1.97 in

13.5 cm

5.31 in

EIRP-EXTEND

EIR-EXTEND-4

5.00 cm

1.97 in

13.5 cm

5.31 in

5.00 cm

1.97 in

13.5 cm

5.31 in

EIRP-EXTEND-x_3713ds
